SPITFIRE

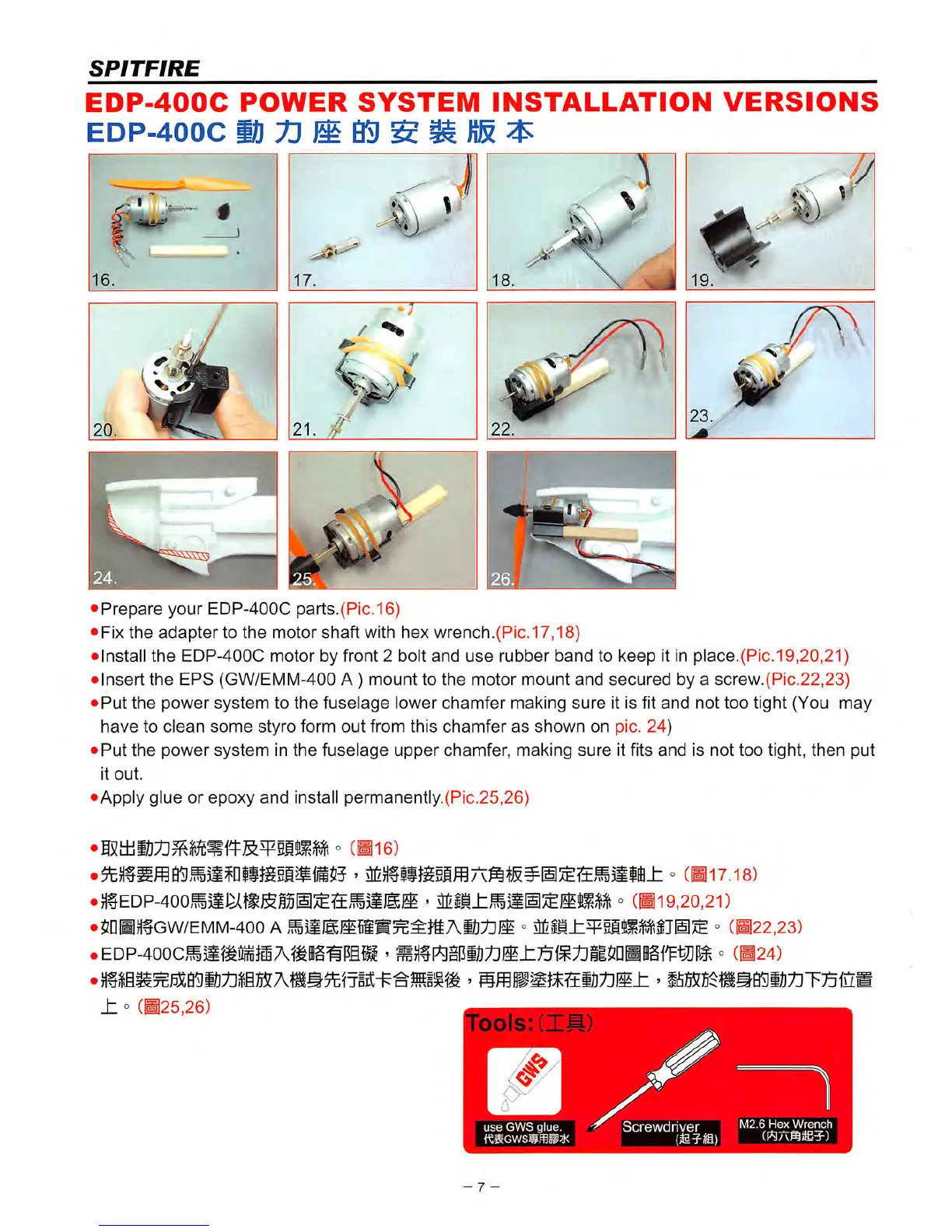

EDP-400C POWER SYSTEM INSTALLATION VERSIONS
EDP-400C
20.
v
17.
•Prepare your EDP-40GC parts.(Pic.16)
• Fix the adapter to the motor shaft with hex wrench.(Pic. 17,18)
• Install the EDP-400C motor by front 2 bolt and use rubber band to keep it in place.(Pic. 19,20,21)
• Insert the EPS (GW/EMM-400 A) mount to the motor mount and secured by a screw.(Pic.22,23)
• Put the power system to the fuselage lower chamfer making sure it is fit and not too tight (You may
have to clean some styro form out from this chamfer as shown on pic. 24)
• Put the power system in the fuselage upper chamfer, making sure it fits and is not too tight, then put
it out.
•Apply glue or epoxy and install permanently.(Pic.25,26)
° caie)
° (hi/.ib)
•)ifEDP-4oo,iiii^tisisiii:^i£,i^ig^' ° (>19,20,21)
•jDHJif GW/EMM-400 A ° ° 022,23)
.EDP-4ooc,iiifi!ii}iAttigWP§il' o (^24)
> mmmmmmmmh > ifi]55(B$^#65isAiT75fiZB
J: ° (B25,26)
ools: i_LP
use GWS glue.
ttSGWSSfflB^K
- 7 -
✓
Screwdriver
I\/I2.6 Hex Wrench
