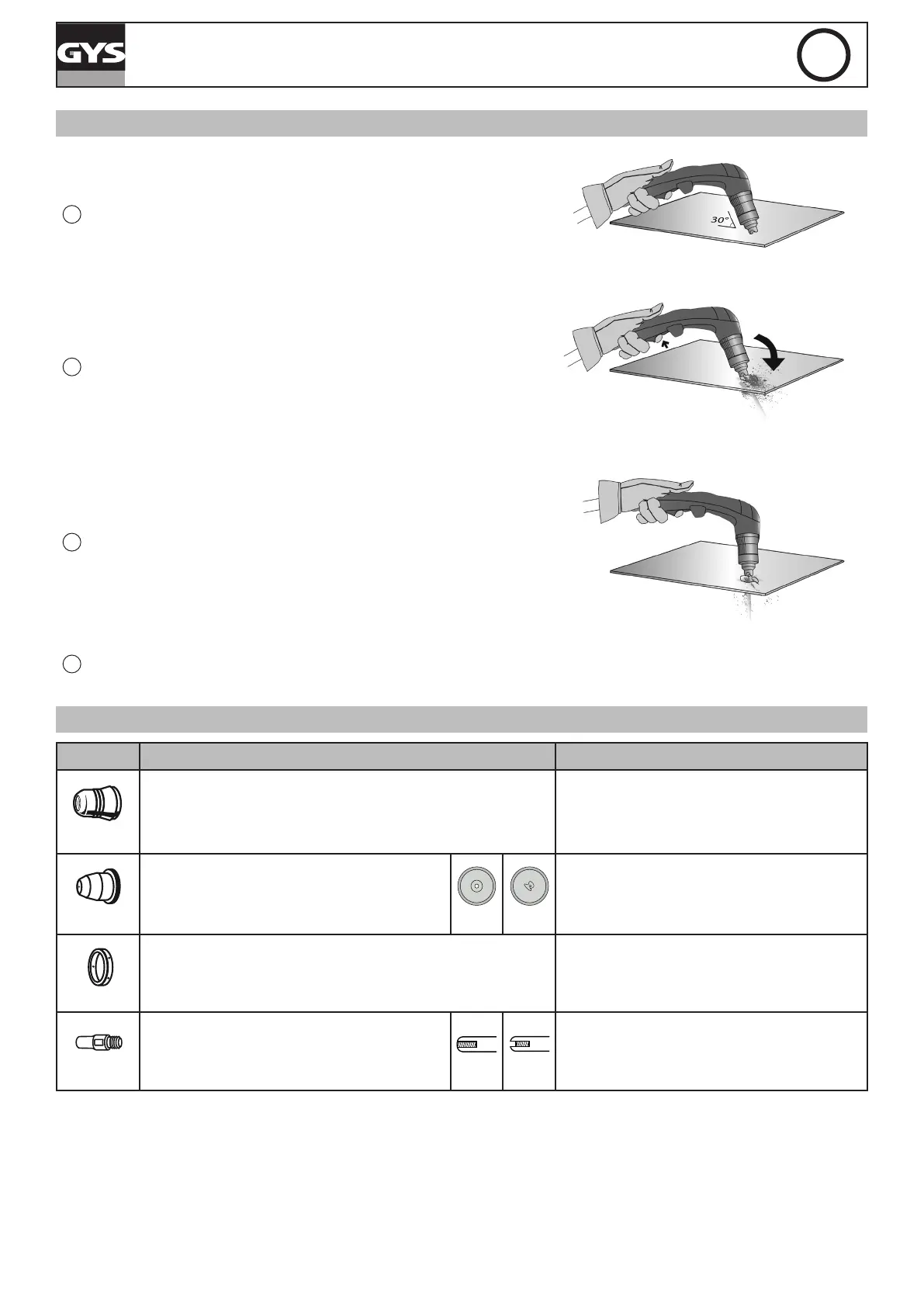

PART PIERCING / CUT IN THE MIDDLE OF THE PART
1
With the earth clamp is fastened to the part, maintain the torche at an angle of
roughly 30° to the part.
2
Press the torch’s trigger to start the arc while maintaining an angle of 30° to the
part. Slowly rotate the torch
towards a perpendicular position (90°).
3
Immobilise the torch while keeping the trigger pressed. If the sparks come from
below the part, the arc has cut the material.
4
Once the part is cut, slightly drag the tip on the part to continue the cut. Try to maintain a regular rythmn.
CONSUMABLES INSPECTION (ASSEMBLY AND DISASSEMBLY, SEE P.16)
Parts Actions Solutions
Nozzle
Check the for damage and surface wear.
Replace the nozzle when it looks damaged (traces of
burns).
Tip
Visually check the tip’s internal hole.
OK NOK
Replace the tip if the inner diameter is enlarged or
distorted.
Diffuser
Check for damage and wear on the surface and inside the diffuser.
Check that the fumes’ exhausts are not obstructed.
Replace the diffuser if the surface is damaged or
worn, or if fume exhausts are obstructed.
Electrode
Visually check the electrode’s internal hole.
OK
NOK
Replace electrode when the insert is used (removal of
1.5 mm).
.
