H2X TRAINER 19D - Configuration 2

40DO NOT DIVE.
101DO NOT DIVE.

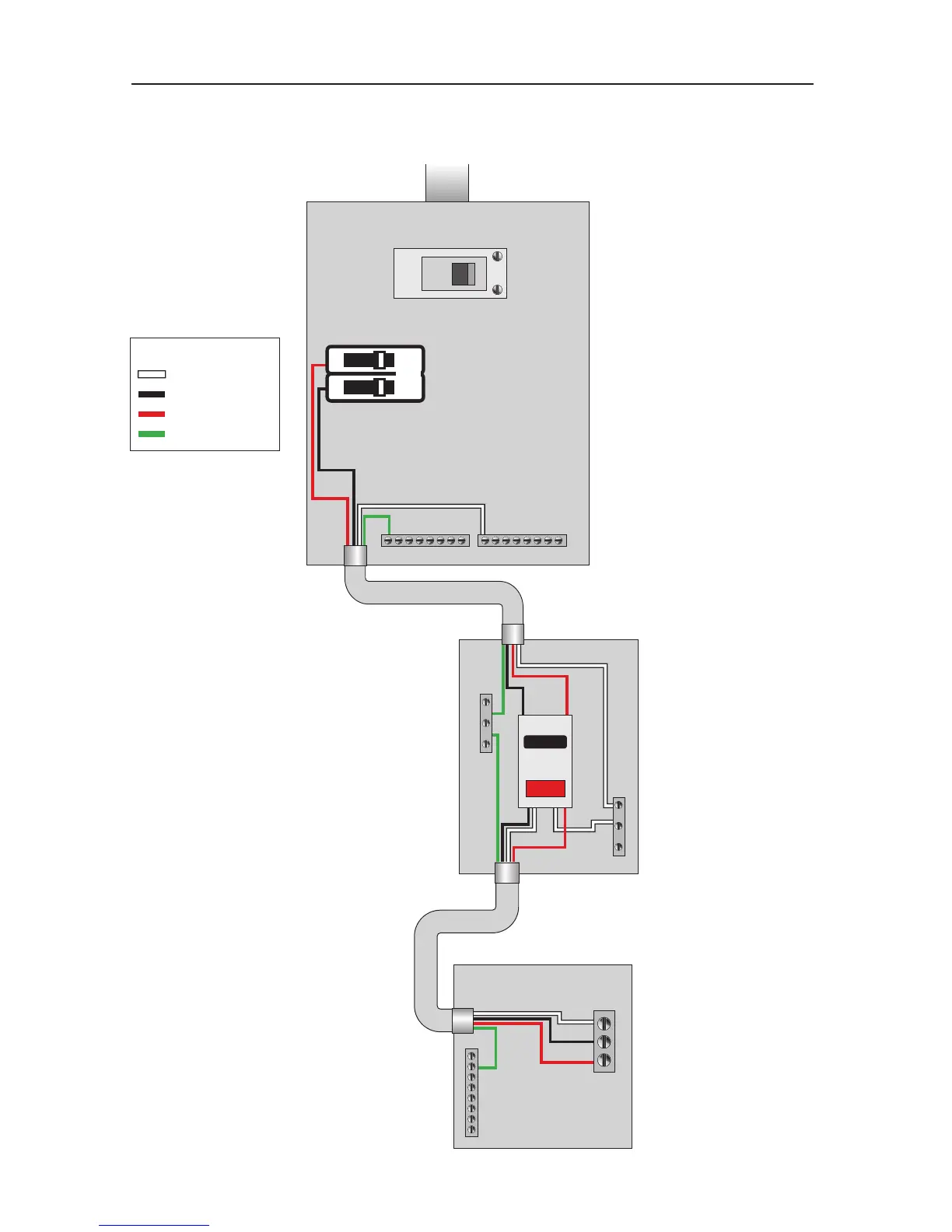

CONFIGURATION 2
240V, 50A GFCI
*SWIM SPA
CONTROL
SYSTEM
50 AMP GFCI
MAIN ELECTRICAL PANEL
(HOUSE)
Key
WHT - White Neutral
BLK - Black Hot, Line 1
RED - Red Hot, Line 2
GND - Ground
WHT
BLK
GND
RED
RED
WHT
GND
BLK
*Refer to wiring diagram
inside swim spa control
system for proper power
connection to terminals.
GND
RED
BLK
WHT
RED
GND
BLK
WHT
WHT
50
50A
TEST
ELECTRICAL REQUIREMENTS
Configuration 2 - 240V, 50A GFCI
