H3C MSR 900 Series User Manual

2-1
2 Cable Connection
Follow these steps to connect cables for the MSR 900:
Step1 Use a network cable to connect the uplink Ethernet interface (ETH 0
or ETH 1) to a WLAN access point.
Step2 Use network cables to connect the downlink Ethernet interfaces to the
Ethernet interfaces on user terminals.
Step3 Connect the power adapter to the power input.

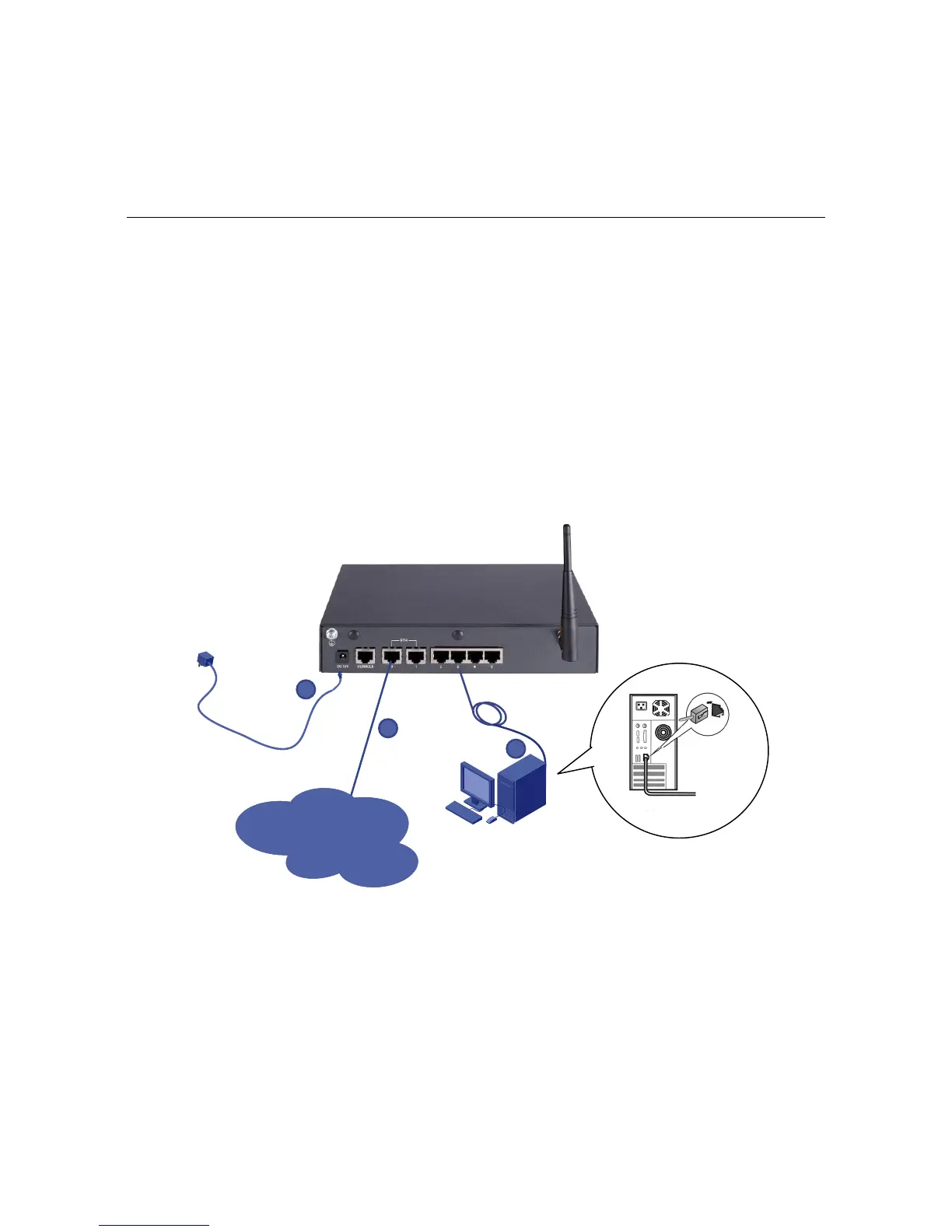

Figure 2-1 Cable connection
192.168.1.1/24
WAN
1
2
3
User host
