3-6
Step1 Select Interface Setup > LAN Interface Setup from the navigation
tree and select the VLAN Interface Setup tab to enter the page
shown in
Figure 3-8.

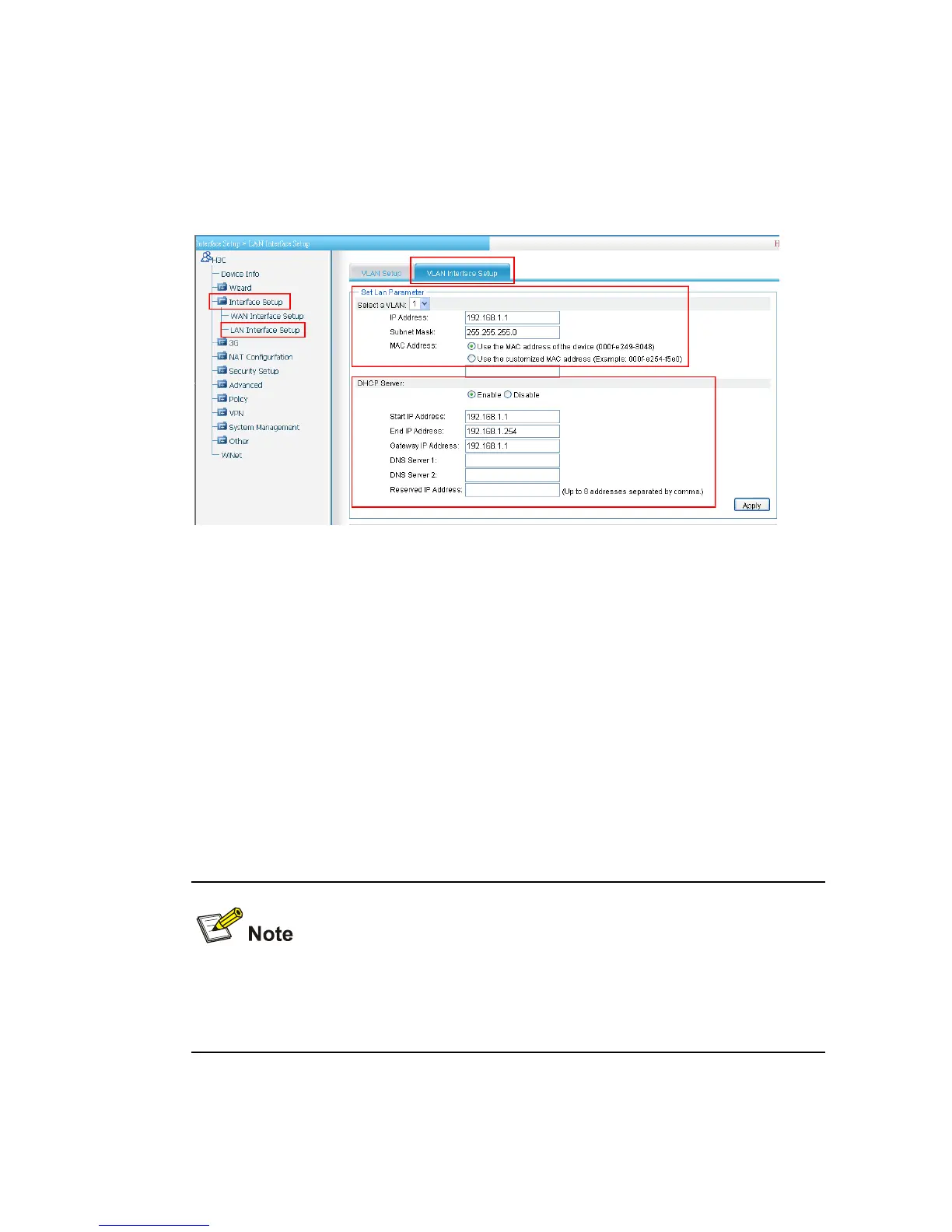

Figure 3-8 VLAN interface configuration page
z By default, all Ethernet interfaces belong to VLAN 1. Therefore,
you need to specify the IP address and mask of the device as the
IP address and subnet mask of VLAN 1.
z You can also configure the device to act as a DHCP server to
dynamically assign IP addresses for the terminals. To do this,
select the radio button before Enable in the page above and type
the address range of the DHCP address pool in the Start IP
Address and End IP Address fields.
The IP address of the device cannot be included in the DHCP
address pool.
