32

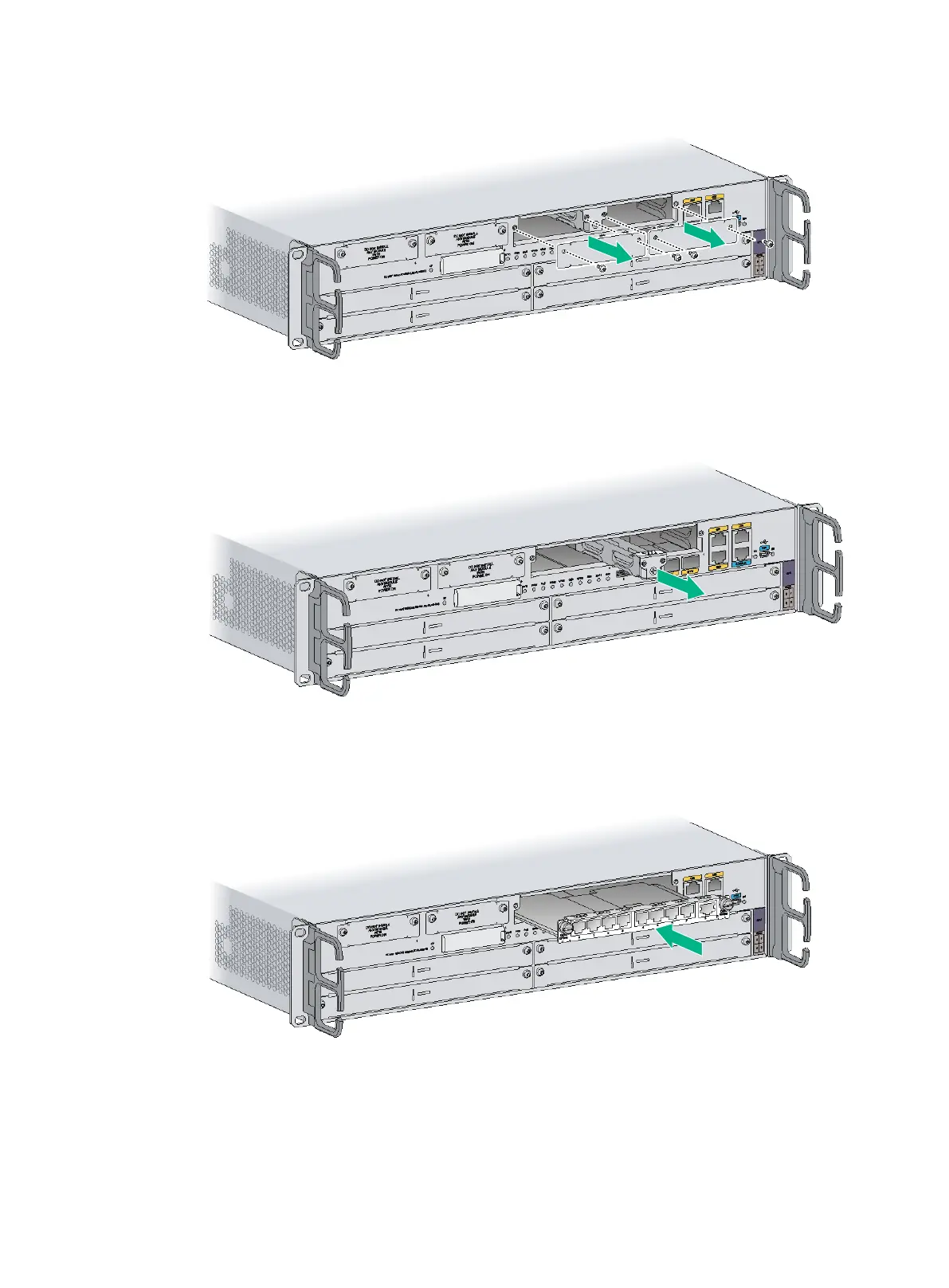

Figure 38 Removing the filler panel
2. Loosen the captive screws on the slot divider and pull out the slot divider.
Figure 39 Removing the slot divider
3. Insert the DSIC into the slot and push it along the slide rails until it makes close contact with the
backplane of the router.
Figure 40 Installing a DSIC
4. Fasten the captive screws to secure the DSIC.
