H3C S5170-EI Series - Page 12

S5170-28S-HPWR-EI

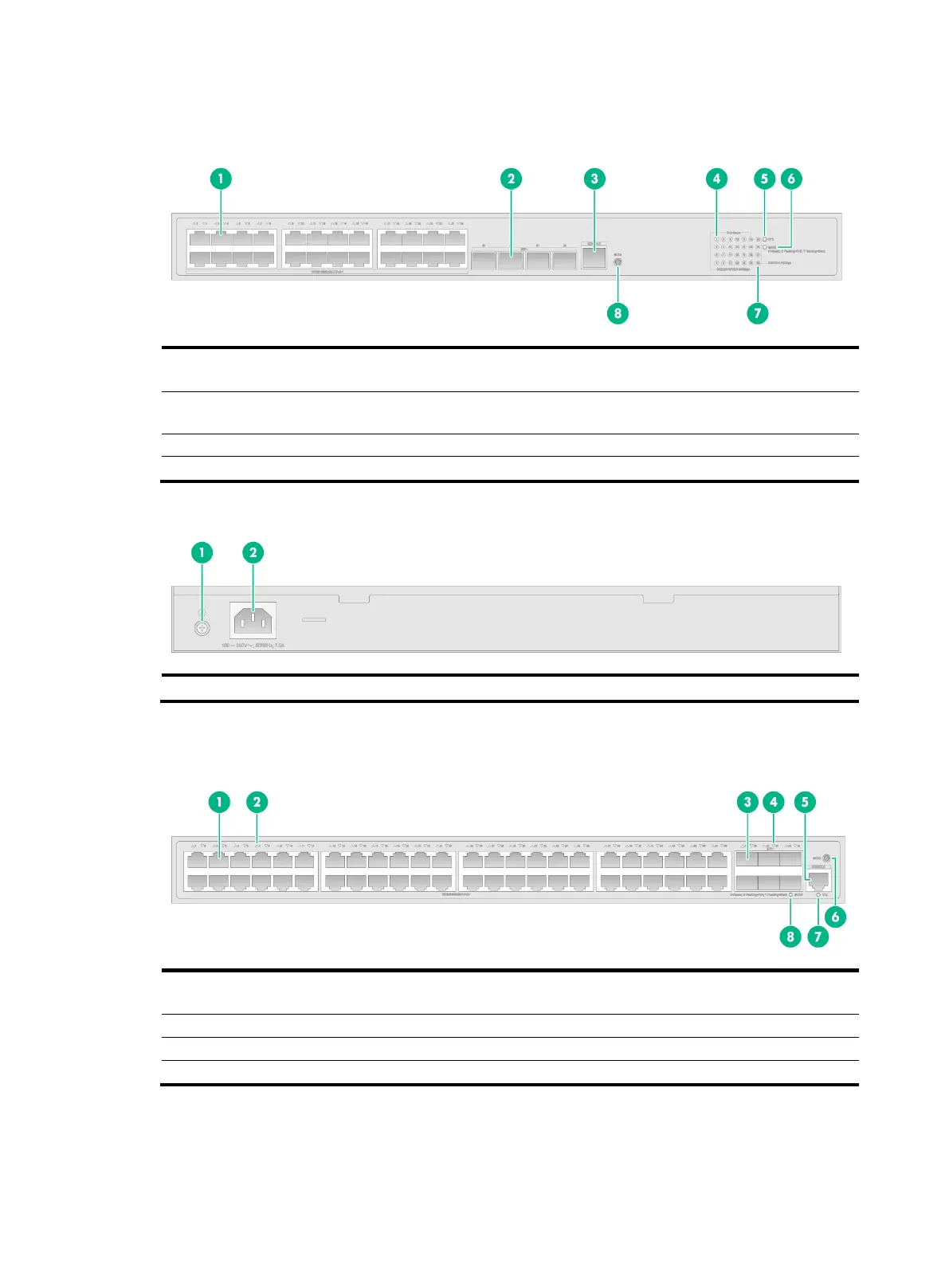

Figure2-7 Front panel
(1) 10/100/1000BASE-T-PoE+ autosensing
Ethernet port
(2) SFP+ port
(3) Serial console port (CONSOLE)
(4) 10/100/1000BASE-T-PoE+ autosensing Ethernet
port LED
(5) System status LED (SYS)
(6) Mode LED (MODE)
(7) SFP+ port LED
(8) Mode button
Figure2-8 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5170-54S-PWR-EI
Figure2-9 Front panel
(1) 10/100/1000BASE-T-PoE+ autosensing
Ethernet port
(2) 10/100/1000BASE-T-PoE+ autosensing Ethernet
port LED
(3) SFP+ port
(4) SFP+ port LED
(5) Serial console port (CONSOLE)
(6) Mode button
(7) System status LED (SYS)
(8) Mode LED (MODE)
