H3C S5170-EI Series - Page 13

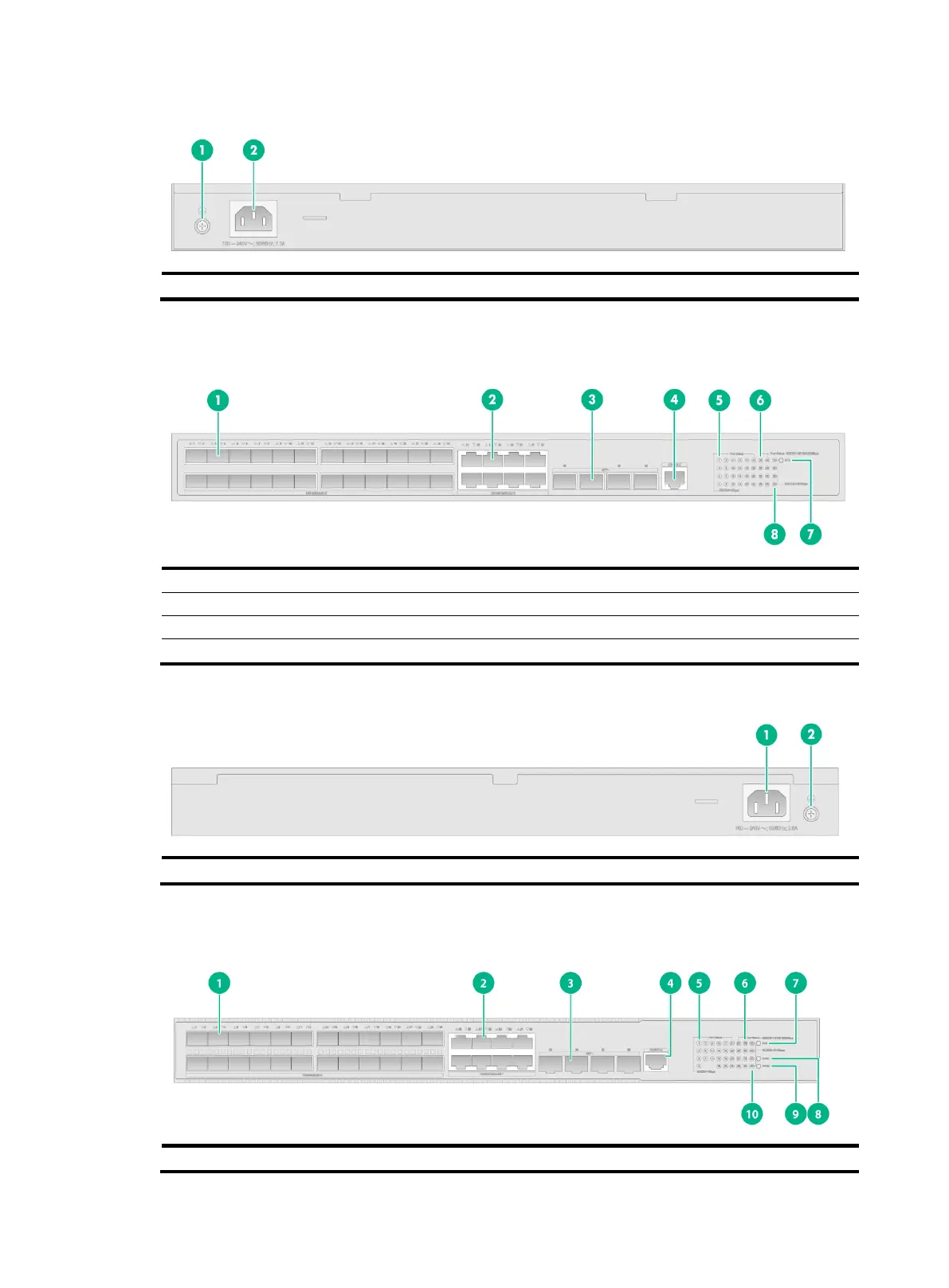

Figure2-10 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5170-36F-EI
Figure2-11 Front panel
(1) SFP port
(2) 10/100/1000BASE-T autosensing Ethernet port
(3) SFP+ port
(4) Serial console port (CONSOLE)
(5) SFP port LED
(6) 10/100/1000BASE-T autosensing Ethernet port LED
(7) System status LED (SYS)
(8) SFP+ port LED
Figure2-12 Rear panel
(1) AC-input power receptacle
(2) Grounding screw
S5170-36F-EI-DP
Figure2-13 Front panel
(1) SFP port
(2) 10/100/1000BASE-T autosensing Ethernet port
