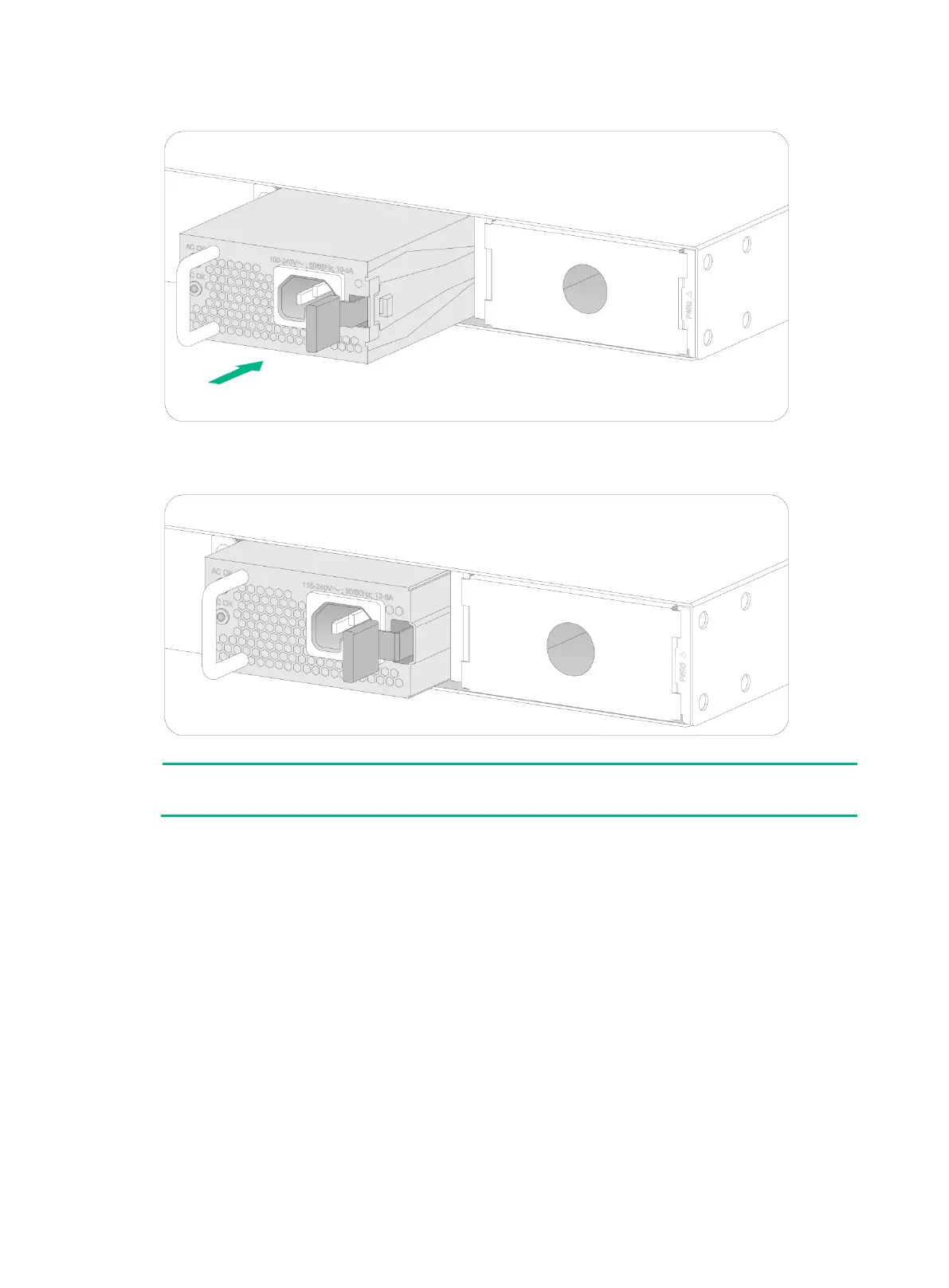

Figure2-22 Installing a power supply
Figure2-23 Installation completed
The PSR1110-56A power supply, including its handle, adds 64 mm (2.52 in) to chassis depth.
Removing a PSR180-56A, PSR360-56A, PSR560-56D,
PSR720-56A, or PSR1110-56A power supply
The removal procedure is the same for the PSR180-56A, PSR360-56A, PSR560-56D, PSR720-56A,
and PSR1110-56A power supplies. The following procedure uses the PSR360-56A power supply as
an example.
To remove a PSR360-56A power supply:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Disconnect the power cord.
3. Press the latch towards the handle, and pull the power supply along the guide rails until it is
part-way out.
4. Grasp the handle of the power supply with one hand, support the bottom with the other hand,
and pull the power supply slowly along the guide rails out of the slot.
