Connecting the power cord for a built-in power supply
1. Wear an ESD wrist strap. Make sure the strap makes good skin contact and is reliably
grounded.
2. Plug the female connector of the power cord into the power receptacle on the power supply,
as shown in Figure2-25.
3. Use a cable tie to secure the power cord to the handle of the power supply, as shown in
Figure2-25.
4. Connect the other end of the power cord to an AC power source.

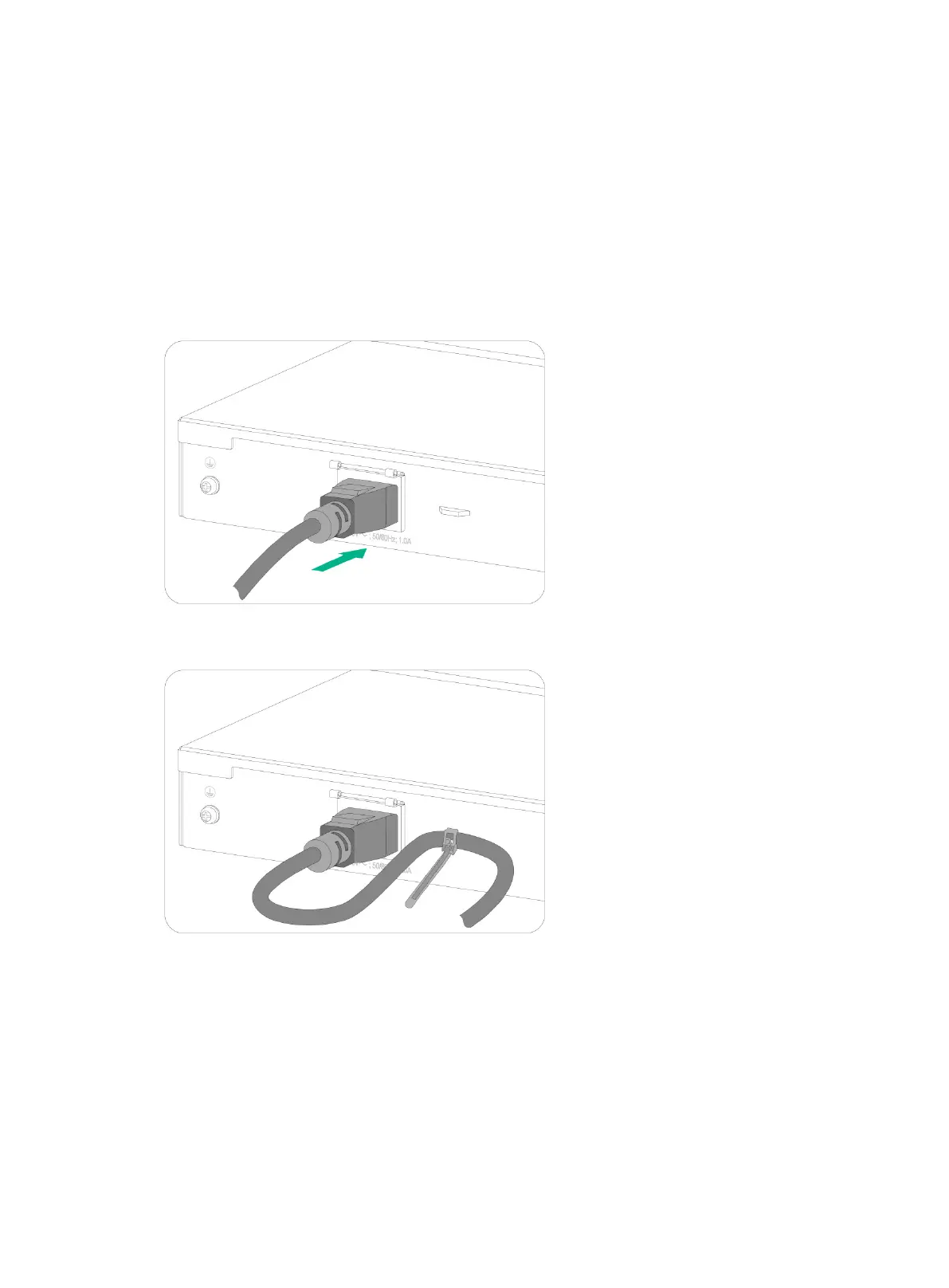

Figure2-25 Connecting the power cord for a built-in power supply(1)
Figure2-26 Connecting the power cord for a built-in power supply(2)
Connecting the power cord for a CA-70A12 or PSR75-12A
power supply
The power cord connection procedure is similar for the CA-70A12 and PSR75-12A power supplies.
The following procedure connects the power cord for a PSR75-12A power supply.
To connect the power cord for a PSR75-12A power supply:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
