Installing the switch in a 19-inch rack

Requirements for the rack

To close the rack door easily, make sure the rack depth for the S5830V2-24S, S5820V2-52QF

(LS-5820V2-52QF), S5820V2-52QF-U, and S5820V2-52Q switches is a minimum of 1000 mm

(39.37 in).

The distance from the front to the rear posts of the rack must meet the requirements described

in Table 3.

Table 3

Requirements for the distance from the front to rear rack posts

Switch model Installation method Minimum distance

Maximum

distance

S5830V2-24S

Using mounting brackets and

slide rails (provided)

401 mm (15.79 in) 875 mm (34.45 in)

• S5820V2-48S

• S5820V2-52QF

(LS-5820V2-52QF-H3)

• S5820V2-52QF

(LS-5820V2-52QF-H5)

• S5820V2-54QS-GE

Using mounting brackets and

slide rails (provided)

401 mm (15.79 in) 634 mm (24.96 in)

Using mounting brackets and

long slide rails (optional)

621 mm (24.45 in) 854 mm (33.62 in)

• S5820V2-52QF

(LS-5820V2-52QF)

• S5820V2-52QF-U

• S5820V2-52Q

Using mounting brackets and

slide rails (provided)

405 mm (15.94 in) 834 mm (32.83 in)

Mounting brackets and rack-mounting rail kit

The S5830V2&S5820V2 switches come with a pair of mounting brackets (see Figure 2) and a

rack-mounting kit that includes a pair of chassis rails and a pair of slide rails (see Figure 3).

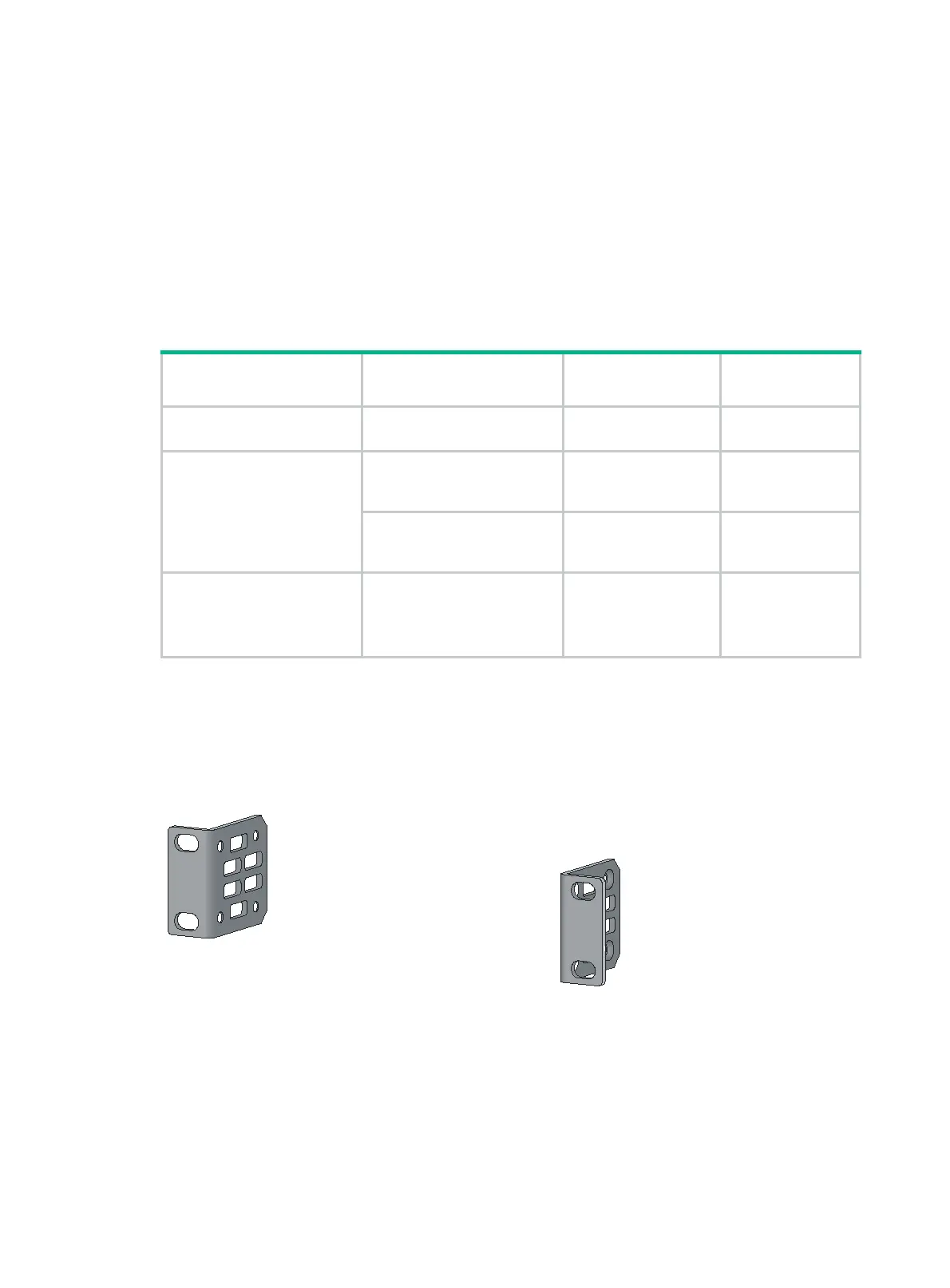

Figure 2 1U mounting bracket kit
