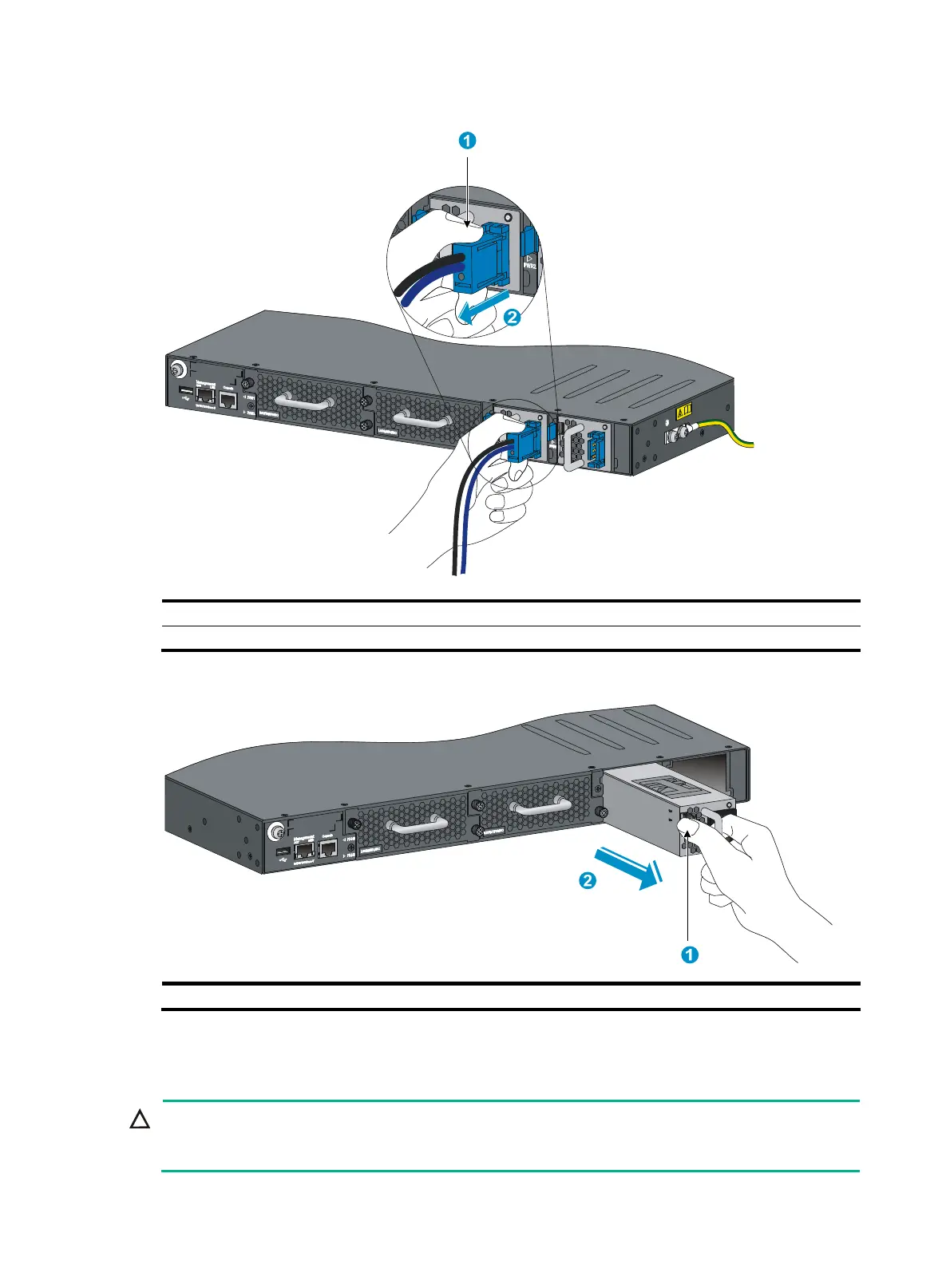

Figure 21 Removing the DC power cord
(1) Press the tabs on the power cord connector with your thumb and forefinger
(2) Pull the power cord connector out
Figure 22 Removing the power module
(1) Pivot the latch to the right with your thumb (2) Pull the power module out
Connecting the power cord
CAUTION:
Provide a circuit breaker for each power module and make sure the circuit breaker is off before
installation.
