Appendix A Chassis views and technical
specifications
H3C S5830V2&S5820V2 Switch Series includes the following models:
• S5830V2-24S
• S5820V2-48S
• S5820V2-52QF
• S5820V2-52QF-U
• S5820V2-52Q
• S5820V2-54QS-GE
Chassis views
S5830V2-24S

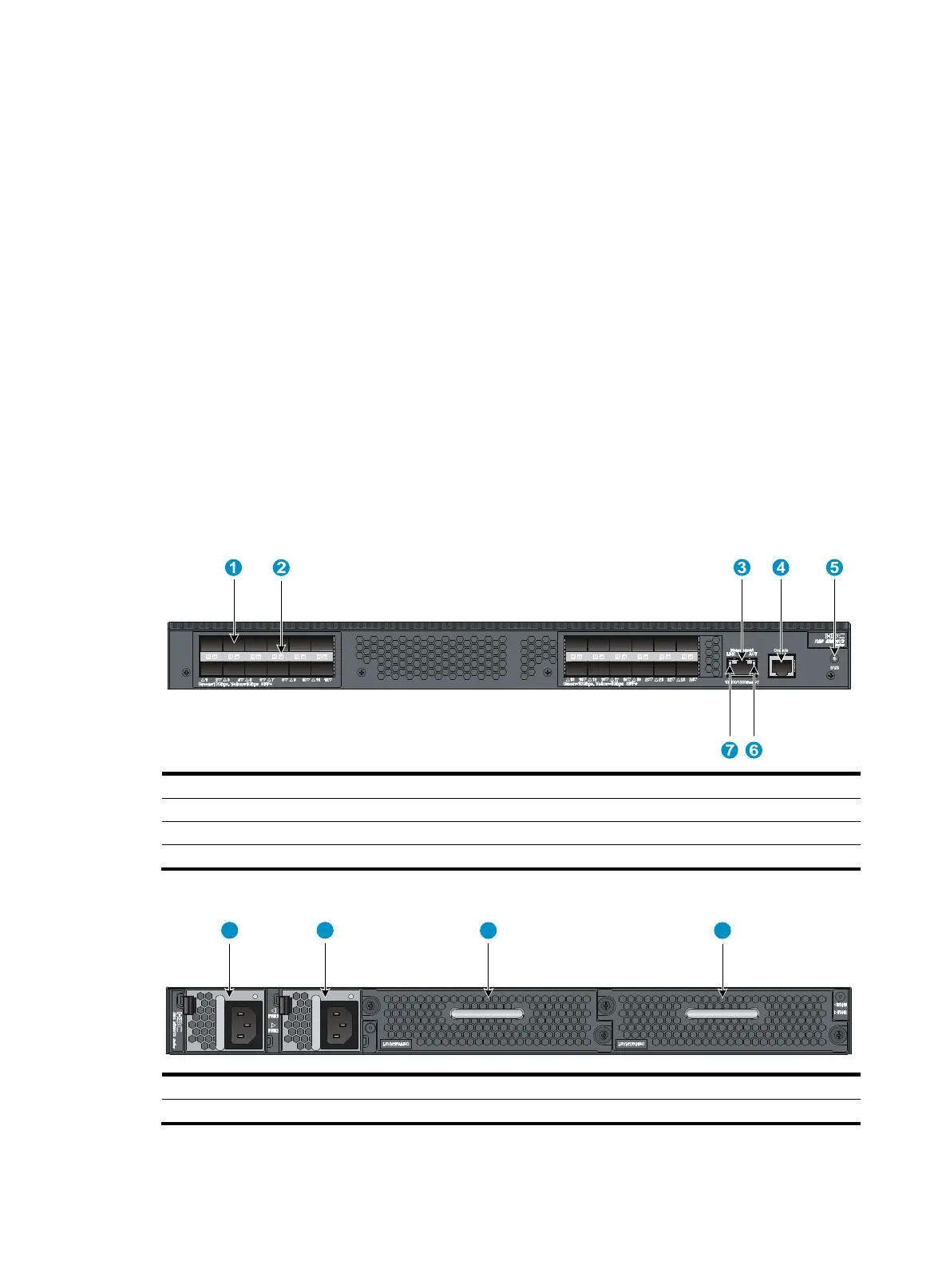

Figure 33 Front panel
(1) SFP+ port (2) SFP+ port LED
(3) Management Ethernet port (4) Console port
(5) System status LED (SYS) (6) ACT LED for the management Ethernet port
(7) LINK LED for the management Ethernet port
Figure 34 Rear panel
(1) Power module slot 1 (2) Power module slot 2
(3) Fan tray slot 1 (4) Fan tray slot 2
