H3C S5820V2-52Q User Manual

48
SFP+
transceiver
module
Central
wavelength
(nm)
Connector
Fiber type and
diameter (µm)
Modal
bandwidth
(MHz × km)
Max
transmission
distance
SFP-XG-LX2
20-MM1310
1310 LC
Multi-mode, 50/125
1500
220 m (721.78 ft)
500
400 100 m (328.08 ft)
Multi-mode, 62.5/125
200
220 m (721.78 ft)
160
SFP-XG-LX-
SM1310
1310 LC Single-mode, 9/125 N/A
10 km (6.21
miles)
SFP-XG-LX-
SM1310-E
1550 LC Single-mode, 9/125 N/A
40 km (24.86
miles)
Table 13 SFP+ DAC cables available for the SFP+ ports
SFP+ DAC cable Max transmission distance
LSWM1STK 0.65 m (2.13 ft)
LSWM2STK 1.2 m (3.94 ft)
LSWM3STK 3 m (9.84 ft)
LSTM1STK 5 m (16.40 ft)
Table 14 SFP+ AOC cables available for the SFP+ ports
SFP+ AOC cable Max transmission distance Data rate
SFP-XG-D-AOC-7M 7 m (22.97 ft)
10.31 Gbps
SFP-XG-D-AOC-10M 10 m (32.81 ft)
SFP-XG-D-AOC-20M 20 m (65.62 ft)

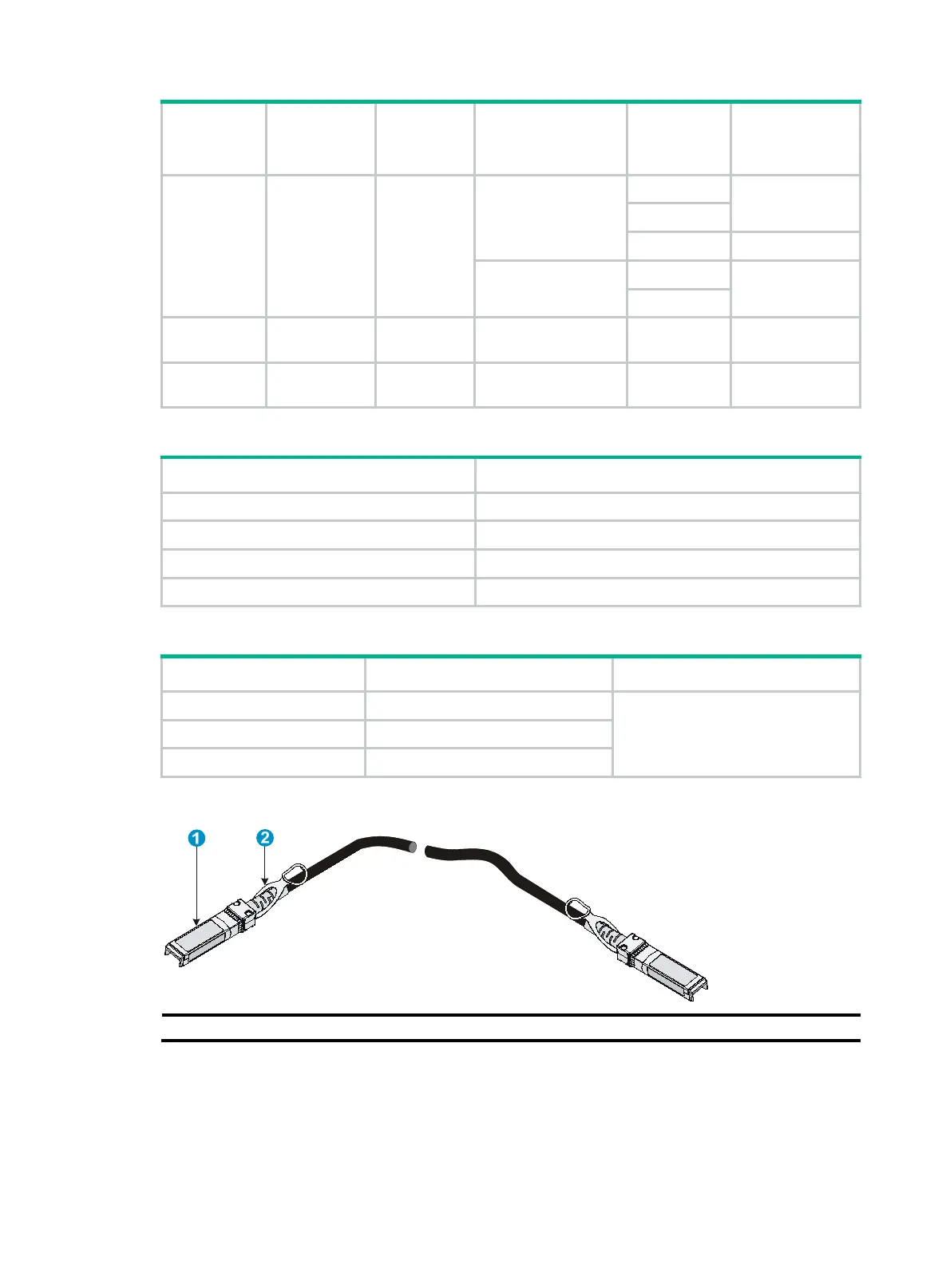

Figure 53 SFP+ DAC cable
(1) Connector (2) Pull latch

H3C S5820V2-52Q Specifications

General

Brand	H3C
Model	S5820V2-52Q
Category	Switch
Language	English
