H3C S6520X-HI Series - Mounting the Switch on a Workbench

2-11

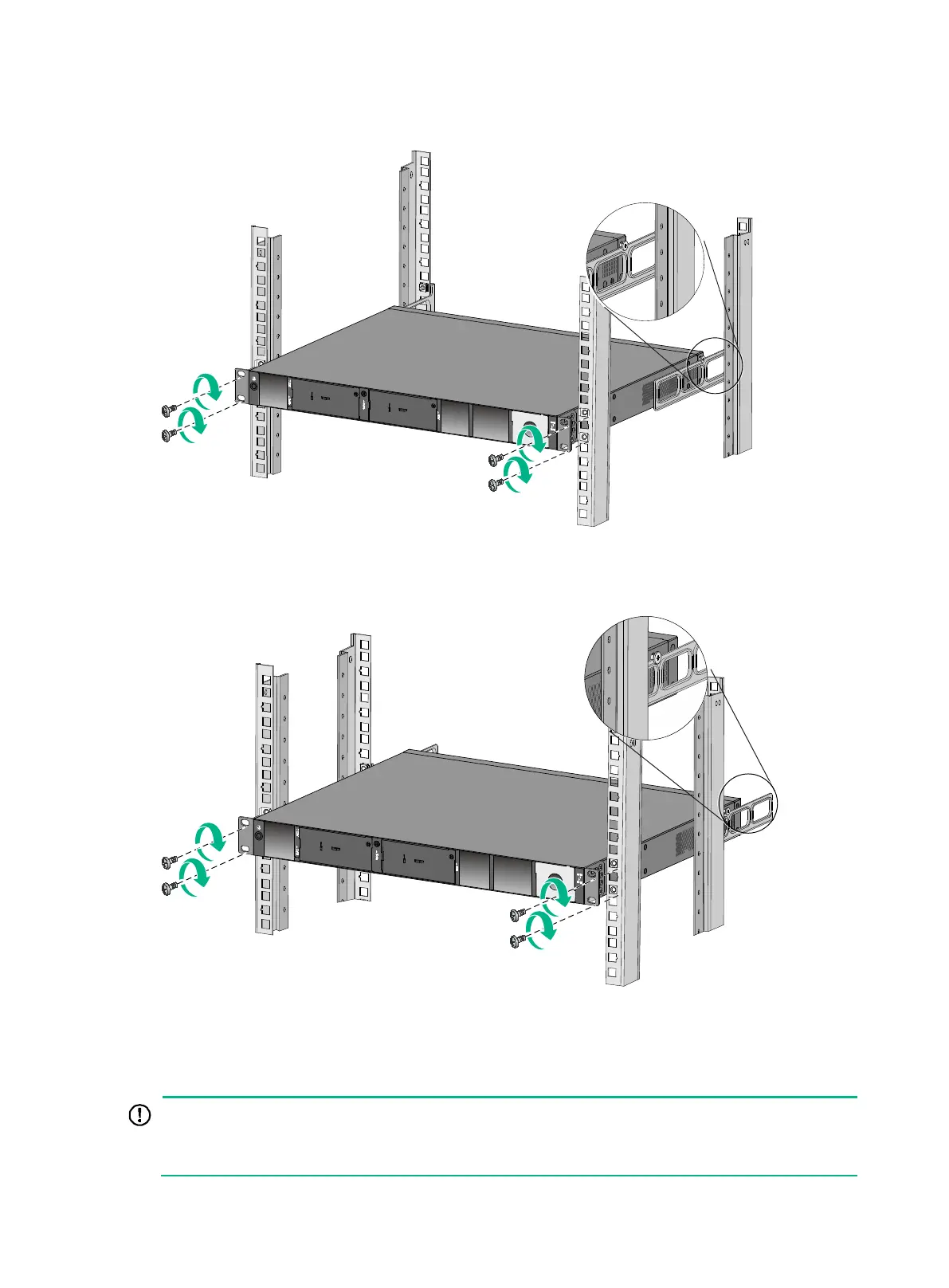

Figure2-8 Mounting the switch in the rack (with the wide flange of the rear mounting brackets
inside the rack)
Figure2-9 Mounting the switch in the rack (with the wide flange of the rear mounting brackets
outside the rack)
Mounting the switch on a workbench
IMPORTANT:
•
Reserve a minimum clearance of 10 cm (3.9 in) around the chassis for heat dissipation.
• Do not place heavy objects on the switch.
