H3C S6520X-HI Series - Setting Terminal Parameters; Starting the Switch; Pre-Start Checklist

3-31

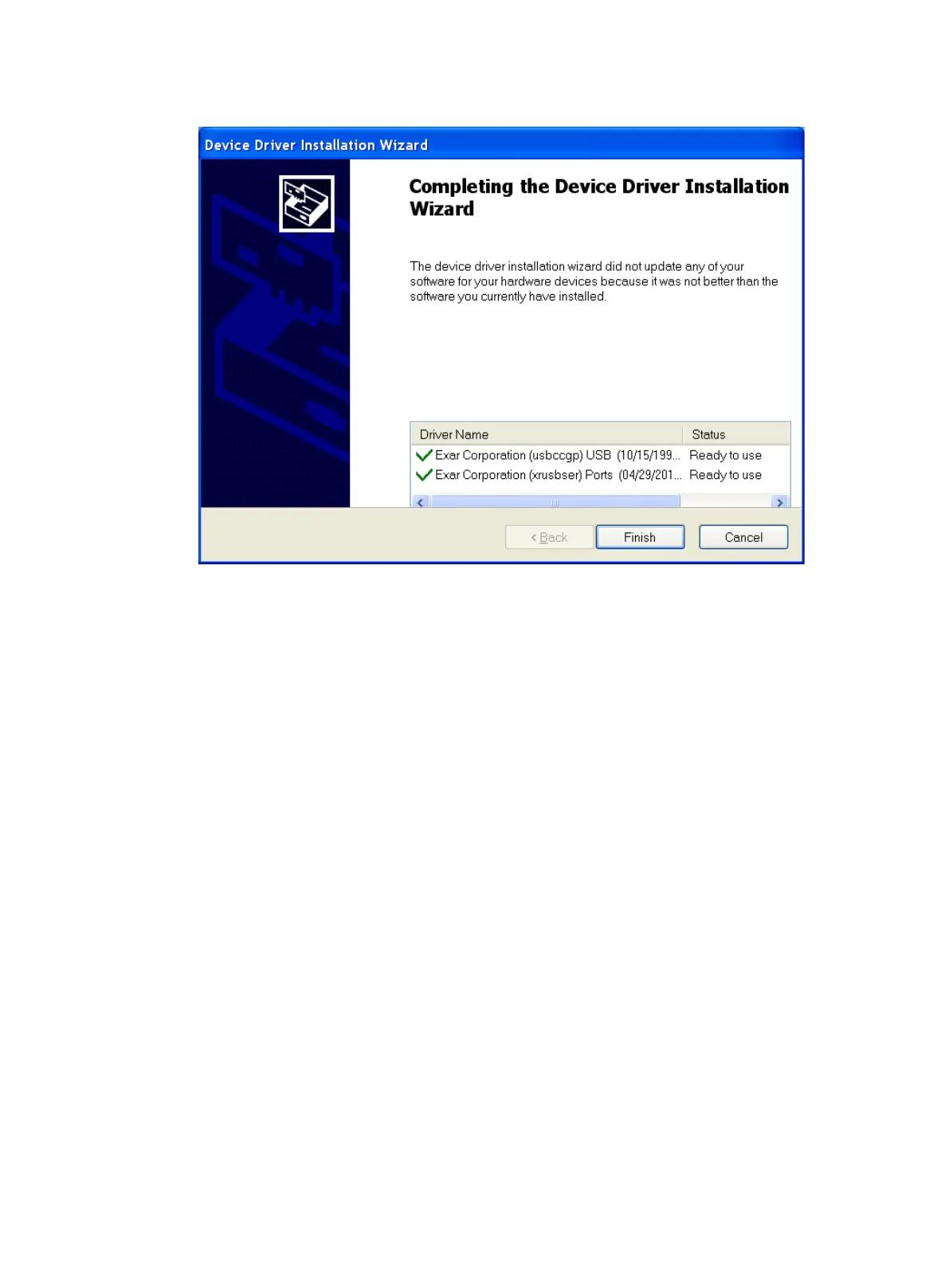

Figure3-9 Completing the device driver installation wizard
Setting terminal parameters
To configure and manage the switch through the console port, you must run a terminal emulator
program, such as TeraTermPro, on your configuration terminal. You can use the emulator program to
connect a network device, a Telnet site, or an SSH site. For more information about the terminal
emulator programs, see the user guides for these programs.
Configure the terminal parameters as follows:
•
Bits per second—9,600.
•
Data bits—8.
•
Parity—None.
•
Stop bits—1.
•
Flow control—None.
Starting the switch
Pre-start checklist
Before powering on the switch, verify the following items:
•
The power cord is correctly connected.
•
The input power voltage is as required by the switch.
•
The console cable is correctly connected.
•
The PC has started, and the terminal parameters have been correctly configured.
