3. Remove the dust cap of the optical fiber connector, and use dust free paper and absolute

alcohol clean the end face of the fiber connector.

4. Identify the Rx and Tx ports on the transceiver module. Plug one end of the optical fiber into the

transceiver module in the firewall, and plug the other end into the transceiver module in the peer

device.

Make sure the Rx port and the Tx port are connected to the Tx port and the Rx port on the peer

device, respectively.

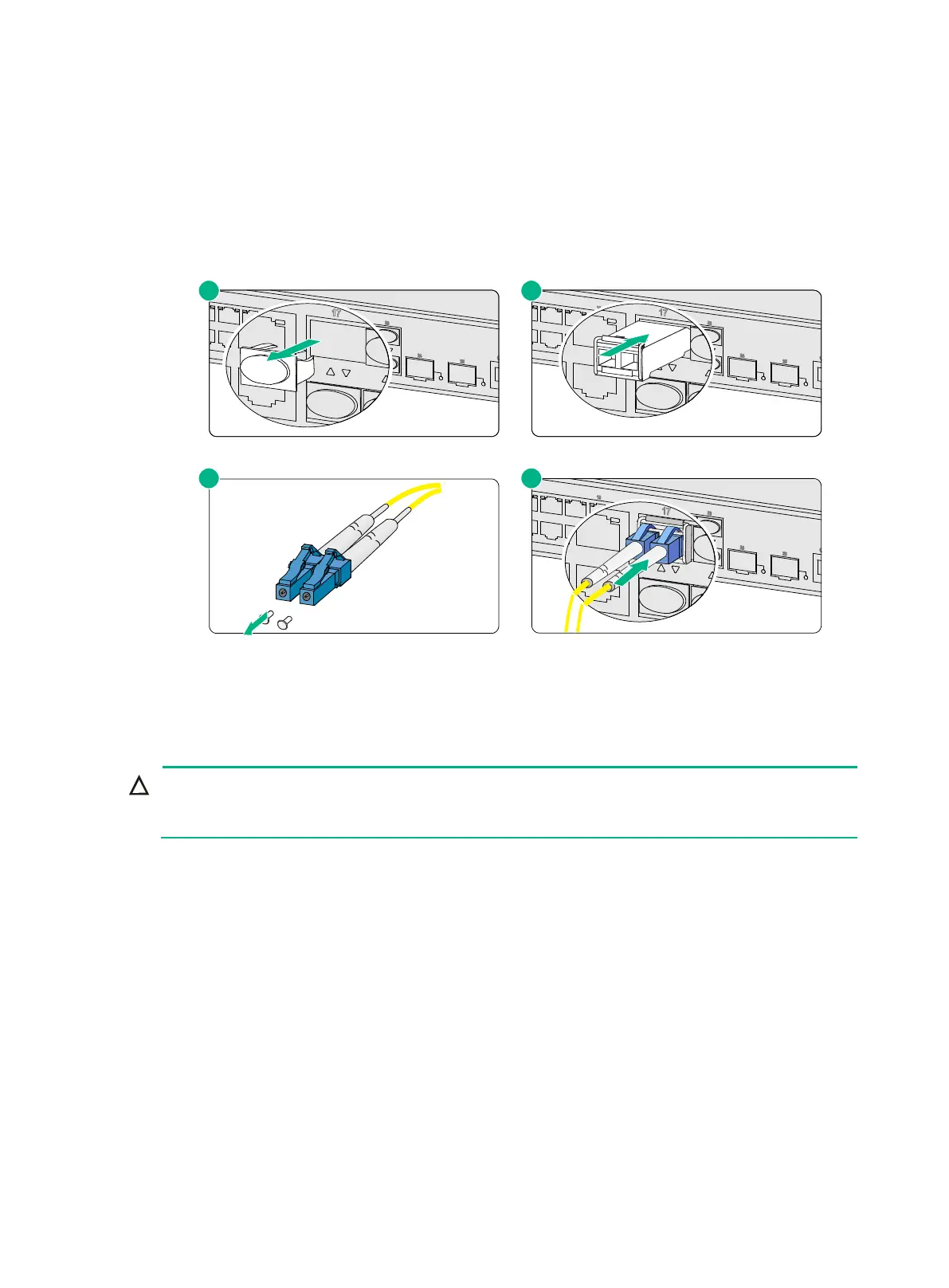

Figure2-23 Installing and connecting an optical fiber

Connecting power cords

CAUTION:

Make sure

the grounding cable of the firewall is correctly connected and the power source is

powered off before connecting the power cord.

Connecting an AC power cord

Connecting an AC power cord for an F1000-AI-10 firewall

1. Attach the hooks of the power cord retainer clip into the holes on the top of the AC-input power

receptacle, and pull the power cord retainer clip upwards.

2. Connect one end of the AC power cord to the AC-input power receptacle on the firewall.

3. Pull the power cord retainer clip downwards and secure the connector to the power receptacle.

4. Connect the other end of the power cord to an AC power source.
