4-31

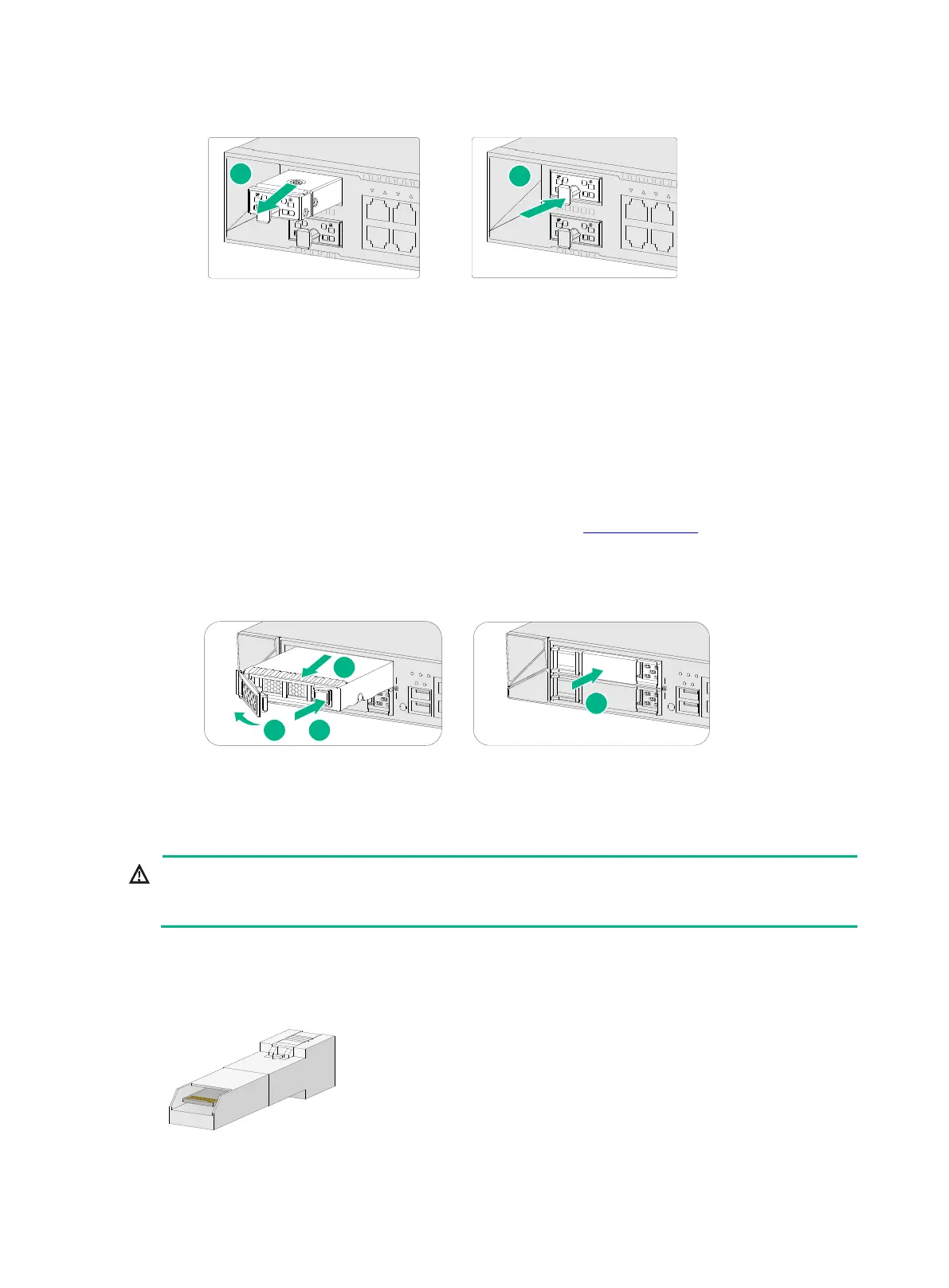

Figure4-3 Replacing a drive for an F1000-AI-10 firewall
Replacing a drive for the F1000-AI-25, F1000-AI-35,
F1000-AI-55, F1000-AI-65 and F1000-AI-75 firewalls
To replace a drive:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Press the button on the drive panel to release the locking lever.
3. Hold the locking lever and pull the drive out of the slot.
4. Install a new drive. For the installation procedure, see "Installing a drive."
If you are not to install a new drive in the slot, install a filler panel in the slot to prevent dust and
ensure good ventilation.
Figure4-4 Removing a drive
Replacing a transceiver module
!
Disconnected optical fibers or transceiver modules might emit invisible laser light. Do not stare into
beams or view directly with optical instruments when the firewall is operating.
When you replace a transceiver module, make sure the two transceiver modules connected by the
same optical fiber are the same type. Do not touch the golden plating of the transceiver module.
Figure4-5 Transceiver module golden plating
To replace a transceiver module:
