H3C SecPath F50X0 Series Installation Manual

23

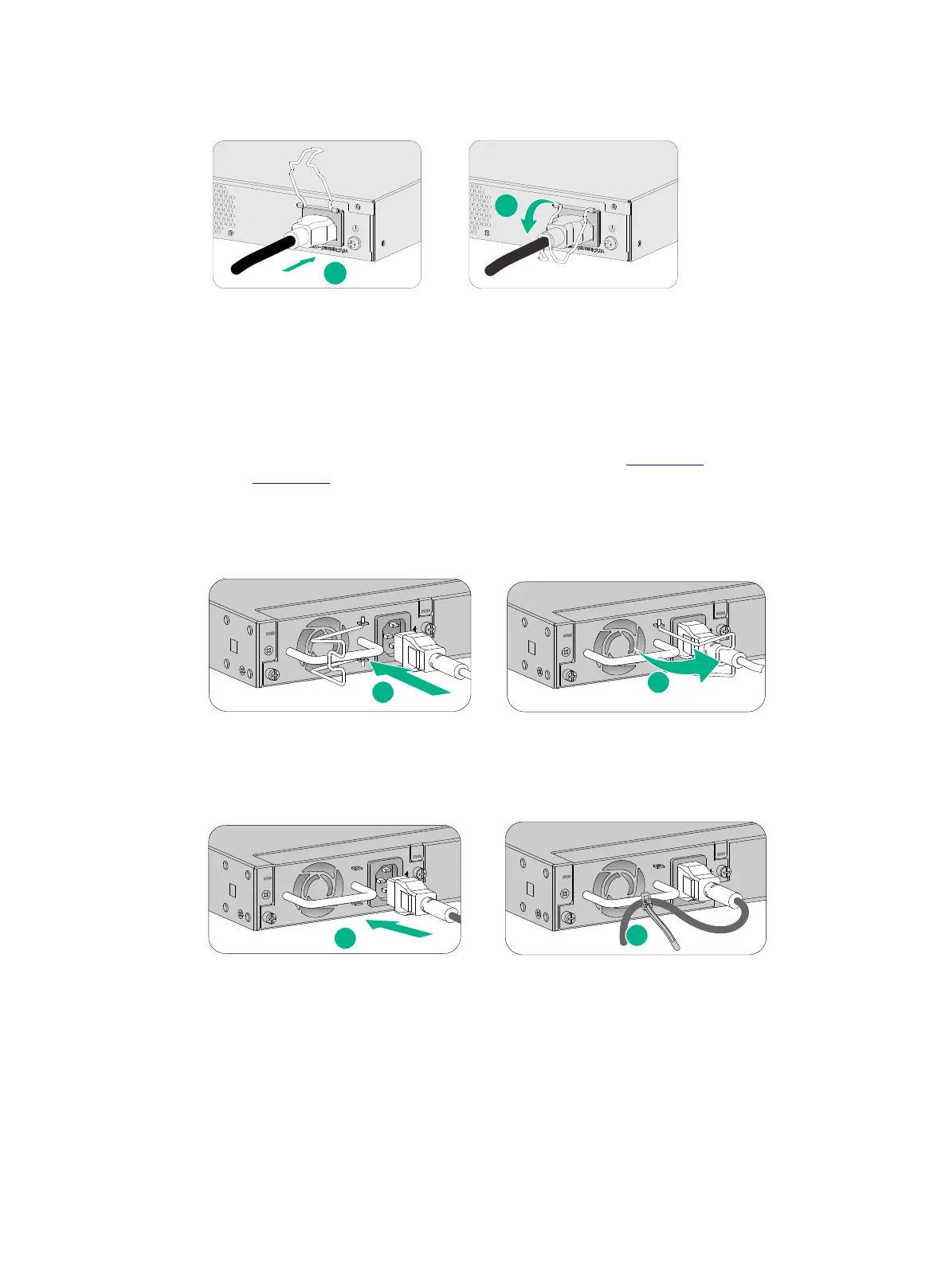

Figure2-24 Connecting an AC power cord for an F1000-AI-10 firewall
Connecting an AC power cord for an F1000-AI-25, F1000-AI-35, F1000-AI-55, F1000-AI-65, or
F1000-AI-75 firewall
1. Attach the hooks of the power cord retainer clip into the holes next to the AC-input power
receptacle, and pull the power cord retainer clip leftwards.
2. Connect the connector of the AC power cord to the target AC power receptacle on the rear
panel of the chassis. Then use a power cord retainer clip (see Figure2-25) or a releasable cable
tie (see Figure2-26) to secure the power cord.
3. Connect the other end of the power cord to an AC power source.
Figure2-25 Connecting an AC power cord (using a power cord retainer clip to secure the
power cord)
Figure2-26 Connecting an AC power cord (using a releasable cable tie to secure the
power cord)
Connecting a DC power cord
Only the F1000-AI-25, F1000-AI-35, F1000-AI-55, F1000-AI-65 and F1000-AI-75 firewalls support
DC power cords.
1. Correctly orient the DC power cord connector. Insert the connector into the power receptacle on
the power supply.
2. Fasten the captive screws on the power cord connector with a flat-head screwdriver to secure
the power cord connector.
1
2
1
2
1
2
