H3C SecPath F50X0 Series Installation Manual

2
•
Eighteen 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Two 10GBASE-R fiber ports.
•
Two management Ethernet ports.
•
Four bypass ports.
•
Eight combo interfaces.
•
One console port.
•
Two USB ports.
•
One reset button.
•
Two drive slots.

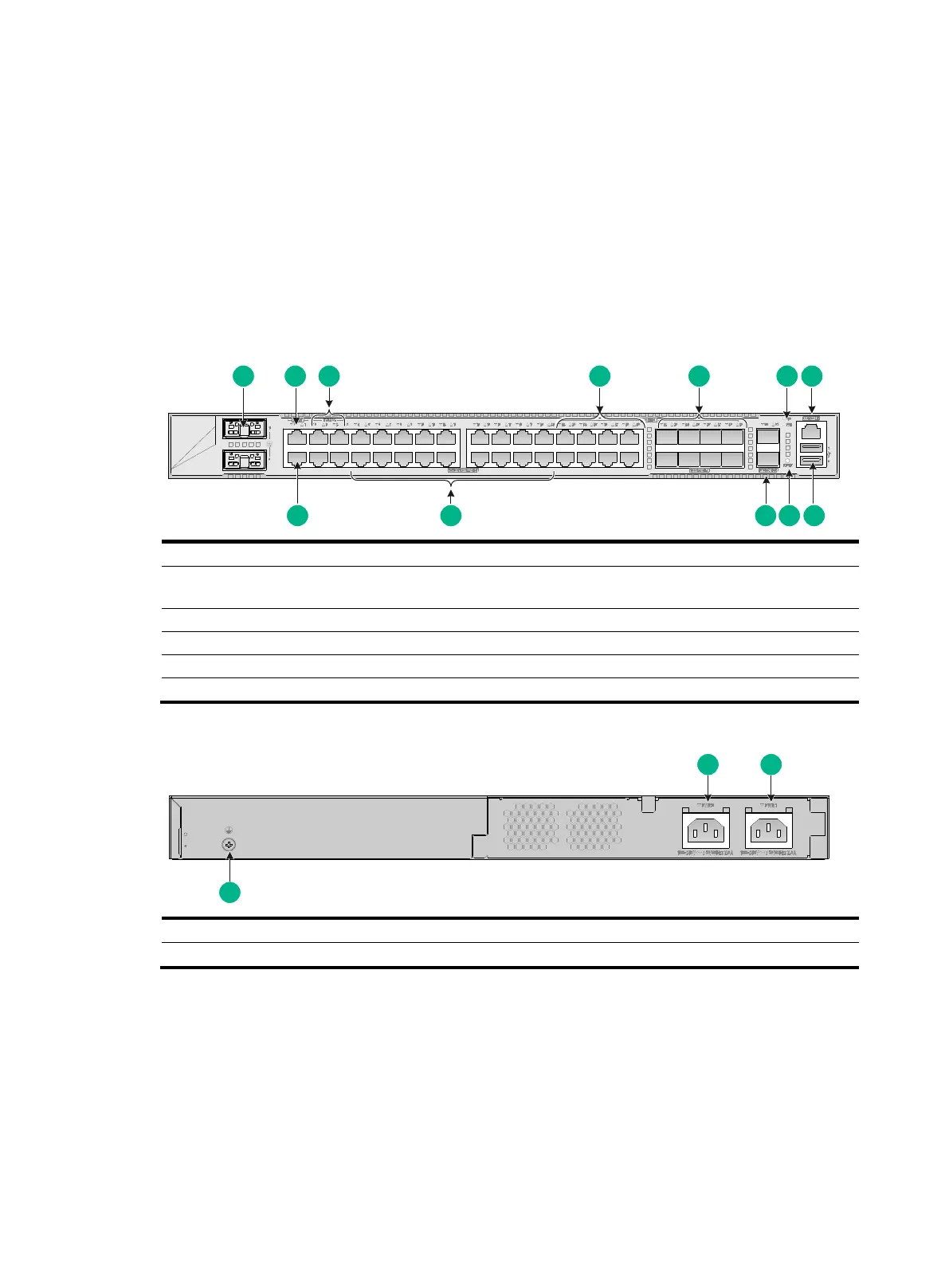

Figure7-3 Front panel
(1) Hard disk slots
(2) Management Ethernet port (1/MGMT)
(3) Bypass ports
(4) 10/100/1000BASE-T copper ports (combo
interfaces)
(5) 1000BASE-X fiber ports (combo interfaces)
(6) LEDs
(7) Console port
(8) USB ports
(9) Reset button
(10) 10GBASE-R fiber ports
(11) 10/100/1000BASE-T copper ports
(12) Management Ethernet port (0/MGMT)
Figure7-4 Rear panel
(1) Power receptacle 1
(2) Power receptacle 2
(2) Grounding screw
F1000-AI-25/F1000-AI-35/F1000-AI-55
The F1000-AI-25/F1000-AI-35/F1000-AI-55 firewall provides the following ports on the front panel:
•
Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Four combo interfaces.
•
Six 1000BASE-X fiber ports.
11
10
1
2
3
6
7
8
9
12
=
4
5
6 7
8
9
10
11
12
1
2
3
