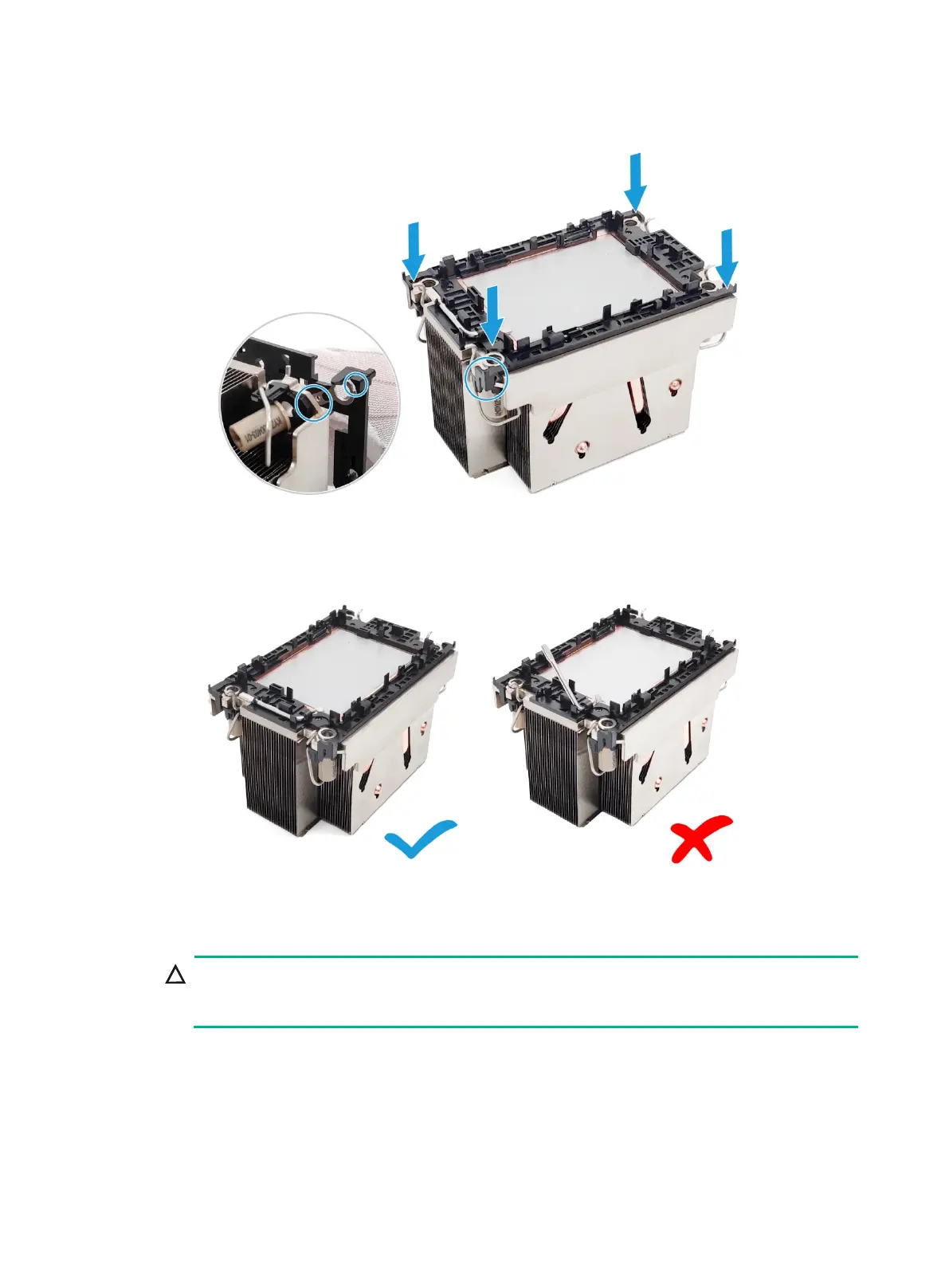

Figure1-4 Installing the processor onto the heatsink
Figure1-5 Ejector lever status on the retaining bracket
3. Install the processor onto the retaining bracket.
To avoid damage to a processor,
always hold the processor by the edges. Never touch the
gold contacts on the processor bottom.
a. Tilt the processor, align the small triangle on the processor with the alignment triangle in
the retaining bracket, and insert one edge of the processor into the retaining bracket. Place
two thumbs against the heatsink, press the other end of the processor, and lower the
processor.
To Next Page
