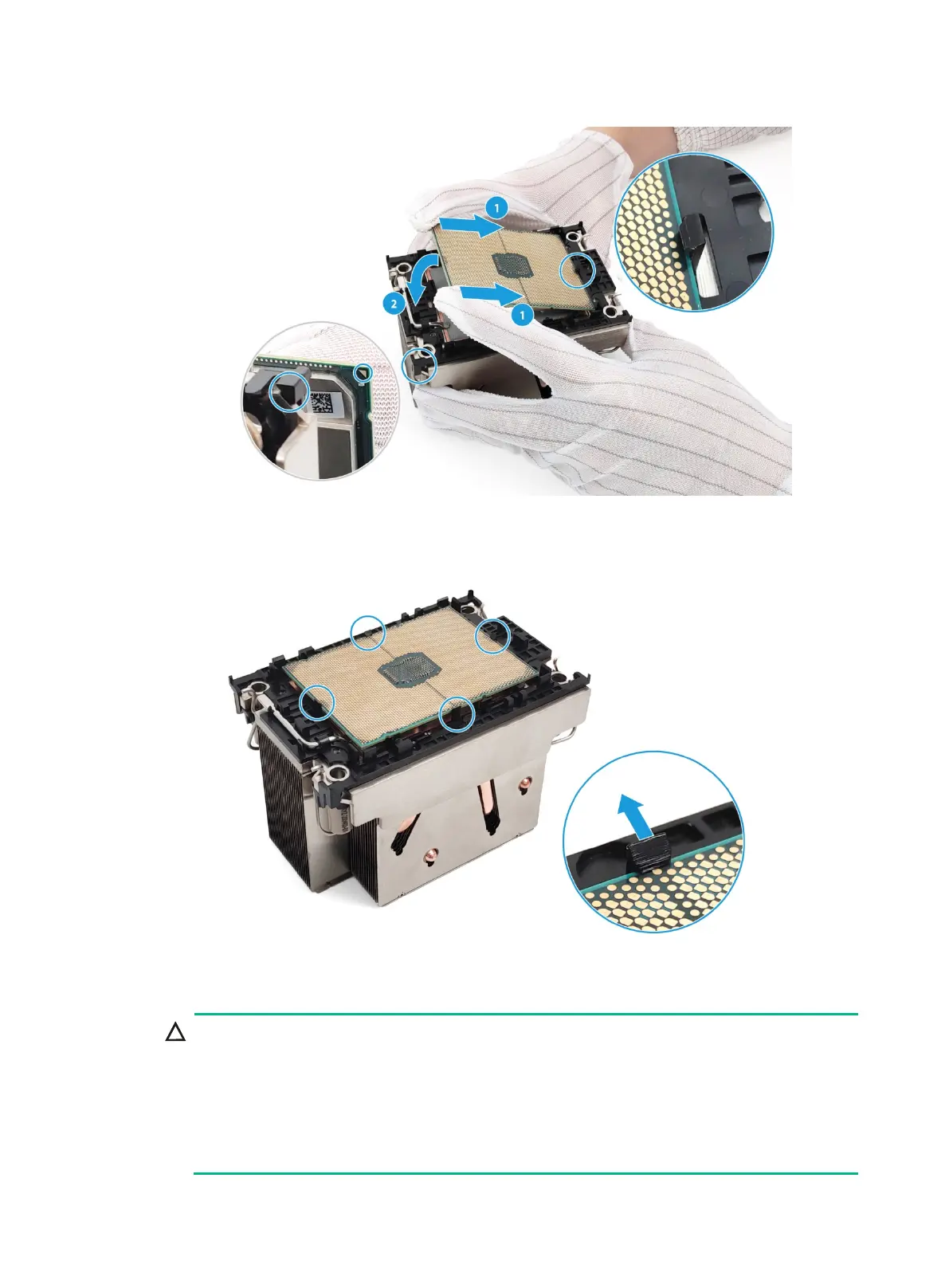

Figure1-6 Installing the processor onto the retaining bracket
d. Open the retention clips on the retaining bracket to lock the processor in place.
Figure1-7 Locking the processor
4. Remove the processor socket cover.
Be careful not to touch the pins on the processor socket when you wear ESD gloves to
remove the processor socket cover.
The pins on the processor socket are very fragile. Never touch the pins. Any damage to
them might require system board replacement.
Keep the pins on the processor socket clean. Make sure the socket is free from dust and
