H3C WA Series Installation Guide

6

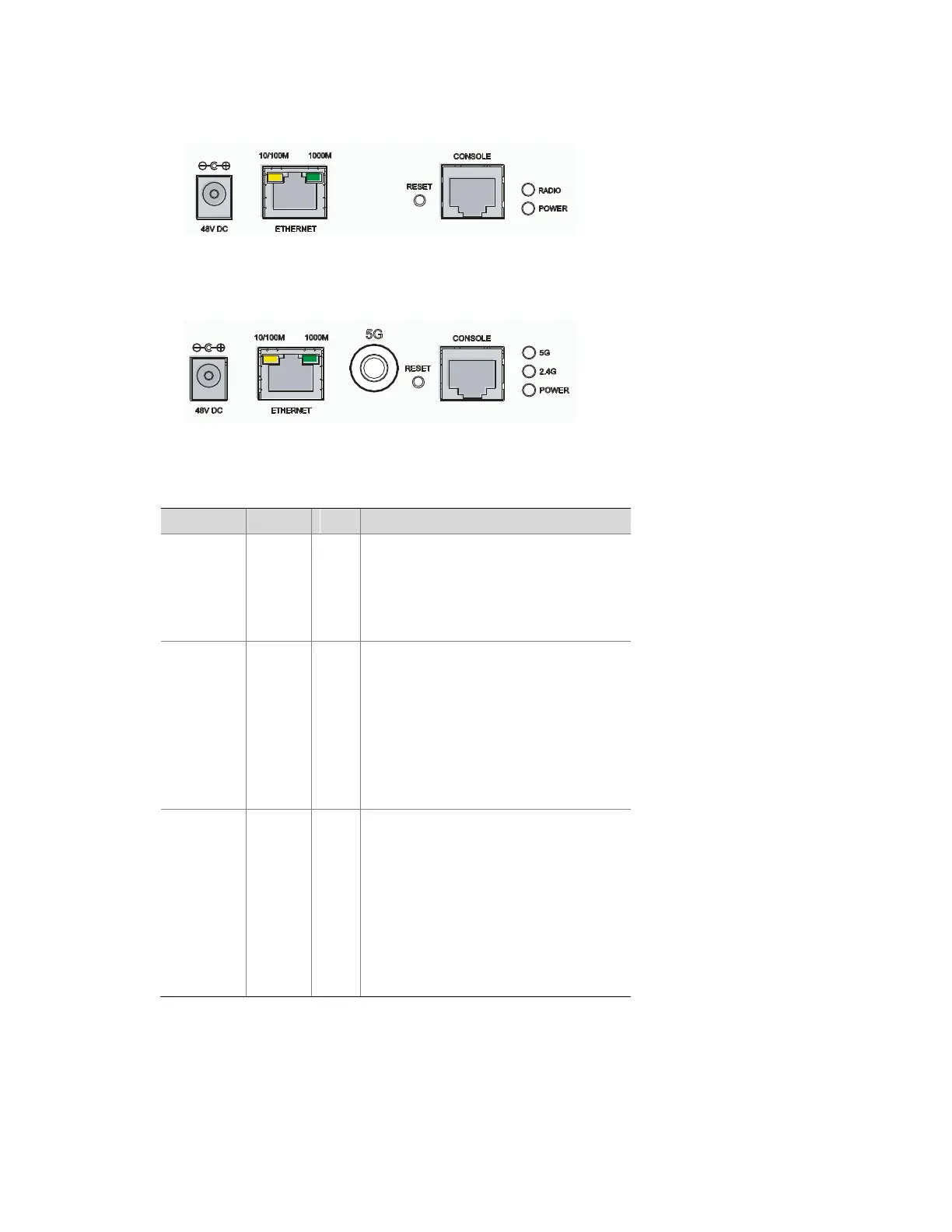

Figure 3 LEDs on the WA2610E-AGN
Figure 4 LEDs on the WA2620E-AGN
Table 3 Description of the LEDs on the WA2610E-AGN and WA2620E-AGN
LED
Color
QTY
Meaning
POWER
Green
1
Displays the power supply status:
 On: The power supply is normal.
 Off/blinking: The power supply is
not well connected or works
abnormally.
RADIO
Green
1
Displays the wireless link status:
 On: The wireless link is normal.
 Off: The wireless link is not
initialized or the link is faulty.
 Blinking slowly: The wireless link
works normally.
 Blinking rapidly: Data is being
transmitted or received.
2.4GHz
(Wireless
link LED)
Green
1
Displays the 2.4 GHz wireless link
status:
 On: The wireless link is normal.
 Off: The wireless link is not
initialized or the link is faulty.
 Blinking slowly: The wireless link
works normally.
 Blinking rapidly: Data is being
transmitted or received.
