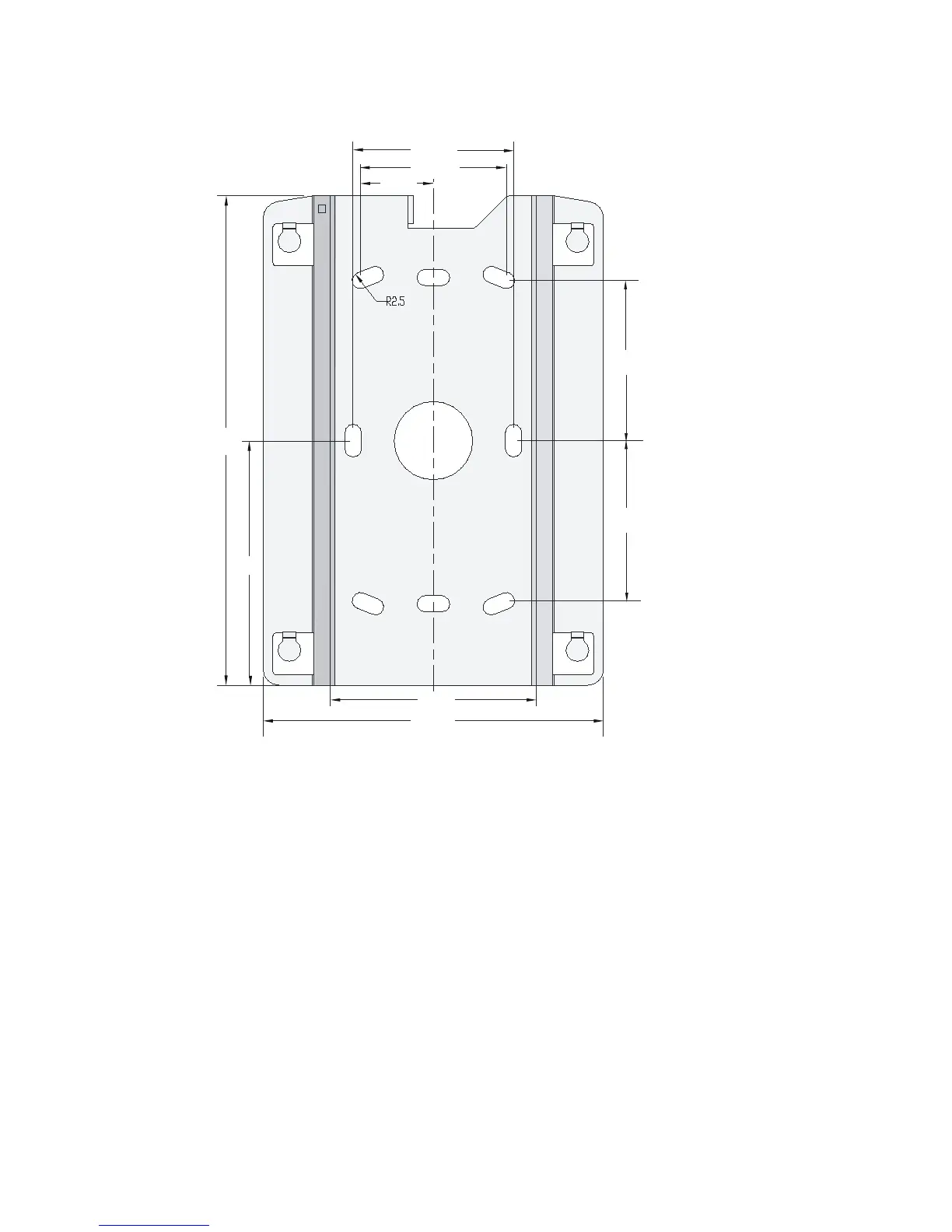

H3C WA2600 series - Figure 3-2 Screw Hole Locations and Screw Hole Size

3-3
Figure 3-2 Screw hole locations and screw hole size
49.0
44.6
22.3
49.1
49.1
150.0
75.0
62.9
104.0
2) Insert the pointed end of anchors into the drilled holes and tap the
flat end of anchors with a rubber hammer until they are all flush
with the wall surface.
3) Align the holes in the wall-mounting bracket with the anchors and
insert screws through the installation holes into the anchors, as
shown in
Figure 3-3.
4) Adjust the position of the wall-mounting bracket and tighten the
screws.
