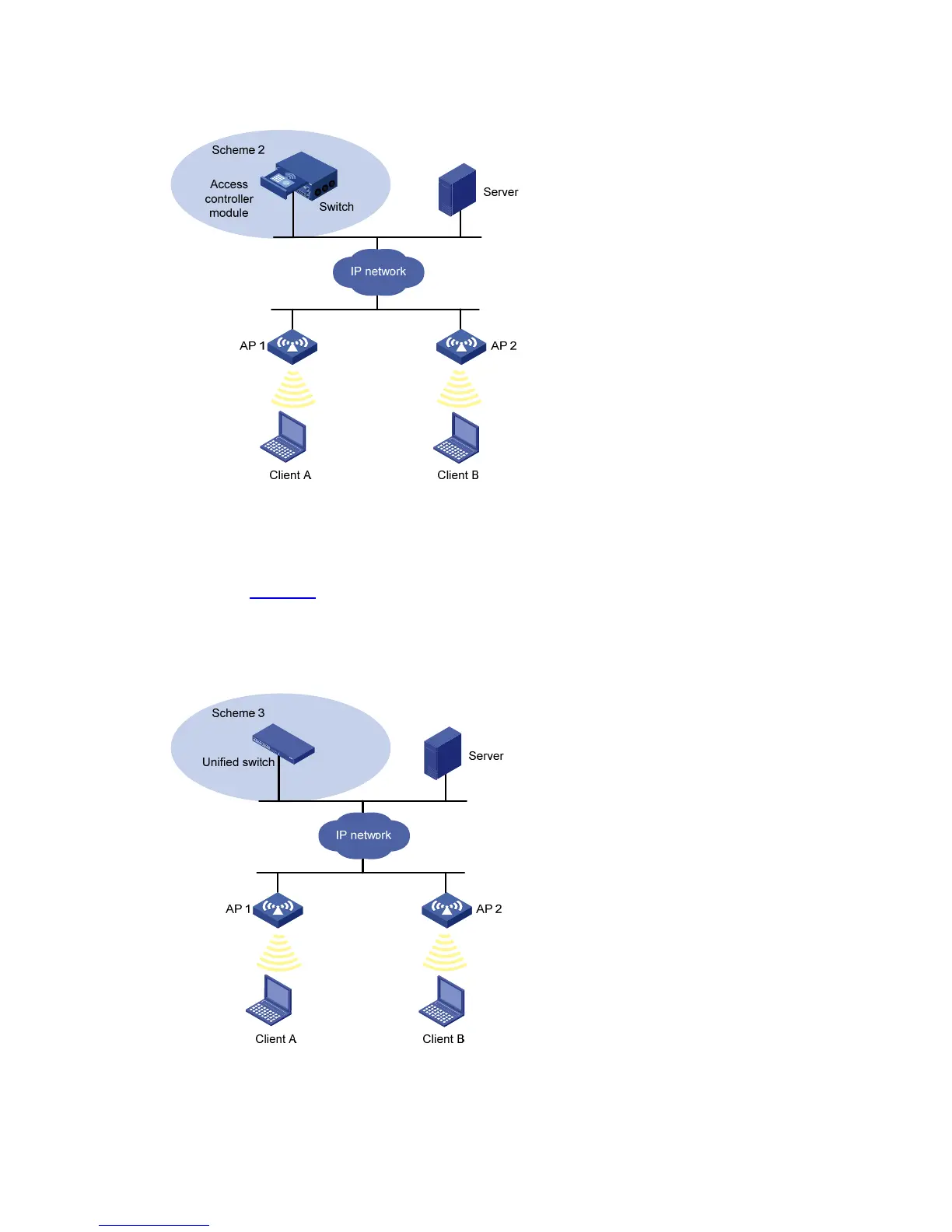

Figure 2-2 Access controller module networking
Unified Switch Networking
As shown in Figure 2-3, Unified switch (functions as both an AC and a Layer 2 switch) can be connected
to APs directly or connected to APs over an IP network. Clients can be connected to the network
through the APs to implement WLAN user access.
Figure 2-3 Unified switch networking diagram
