4. Construction and Function
2
3
4
6
9
1
5
7
8
10
13
12
11

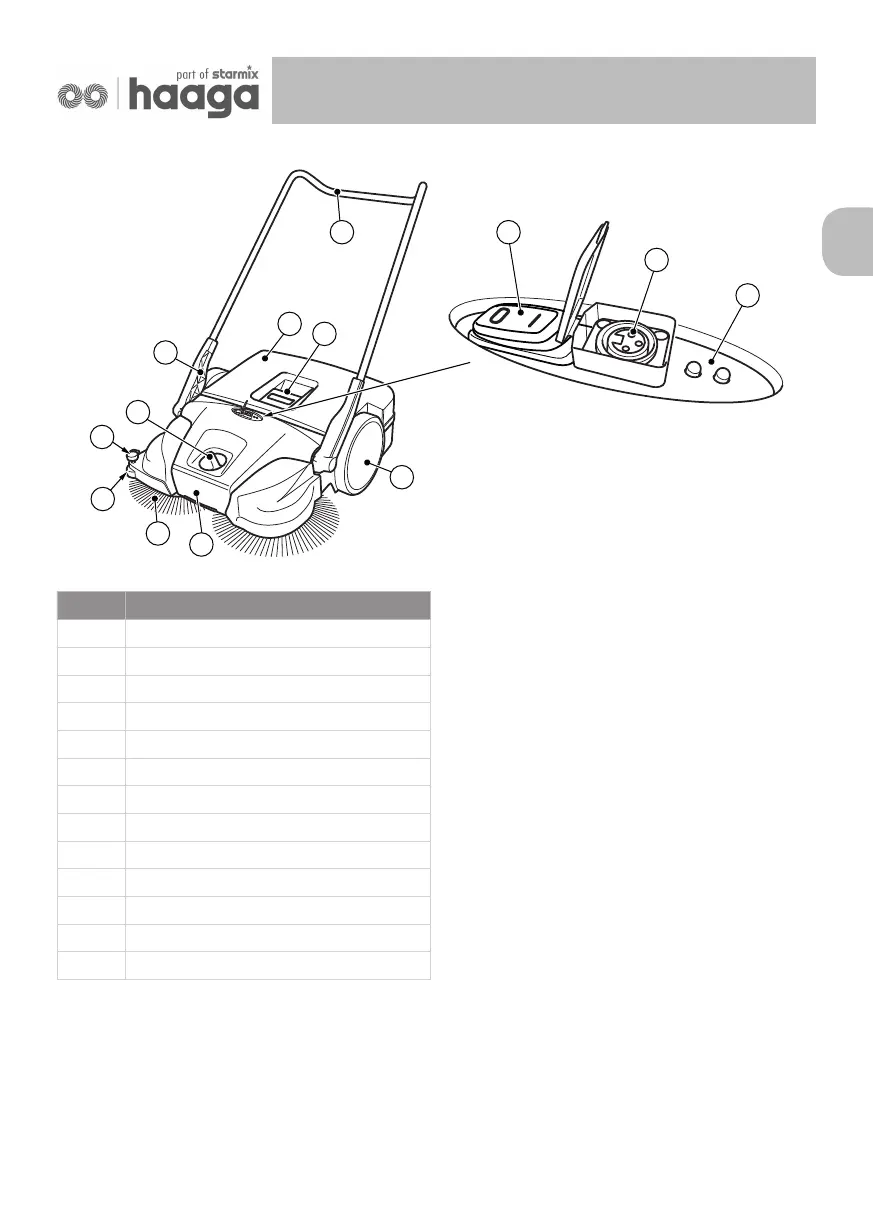

Fig. 1: Component overview 1
Item no. Component
1 Push bar
2 Sweeping container
3 Container handle
4 Plate brooms – height adjustment
5 Carrying handle
6 Plate brooms
7 Lateral guide roller
8 Downholder
9 Impeller
10 Handle tting
11 On/off switch
12 Charging socket
13 LED display
The battery-operated machine is started by
switching the on/o󰀨 switch (11) to the on position
and pushing the machine forward with the
push bar (1). This causes both plate brooms
(6) to convey the sweepings in the direction of
the sweeping container (2) with the aid of the
sweeper lip (16).
The ne dirt sweeping roll (14) conveys the rest
of the sweepings into the sweeping container (2).
Power is provided by the battery (24) installed in
the machine, which must be su󰀩ciently charged
for optimal performance.
» Information on the charging of the battery can
be found in Chapter “6.3 Charging battery” of
this operating manual.
During battery operation the current operating
status of the sweeping machine is shown on the
LED display (13).
» Information on battery operation and the LED
display can be found in Chapter “7.4 Battery
operation and LED display” of this operating
manual.
When the battery charge is low, the machine
may also be operated temporarily without electric
power.
» Information on manual operation can be found
in Chapter “7.6 Manual operation” of this
operating manual.
Construction and Function
