SECTION 4, continued

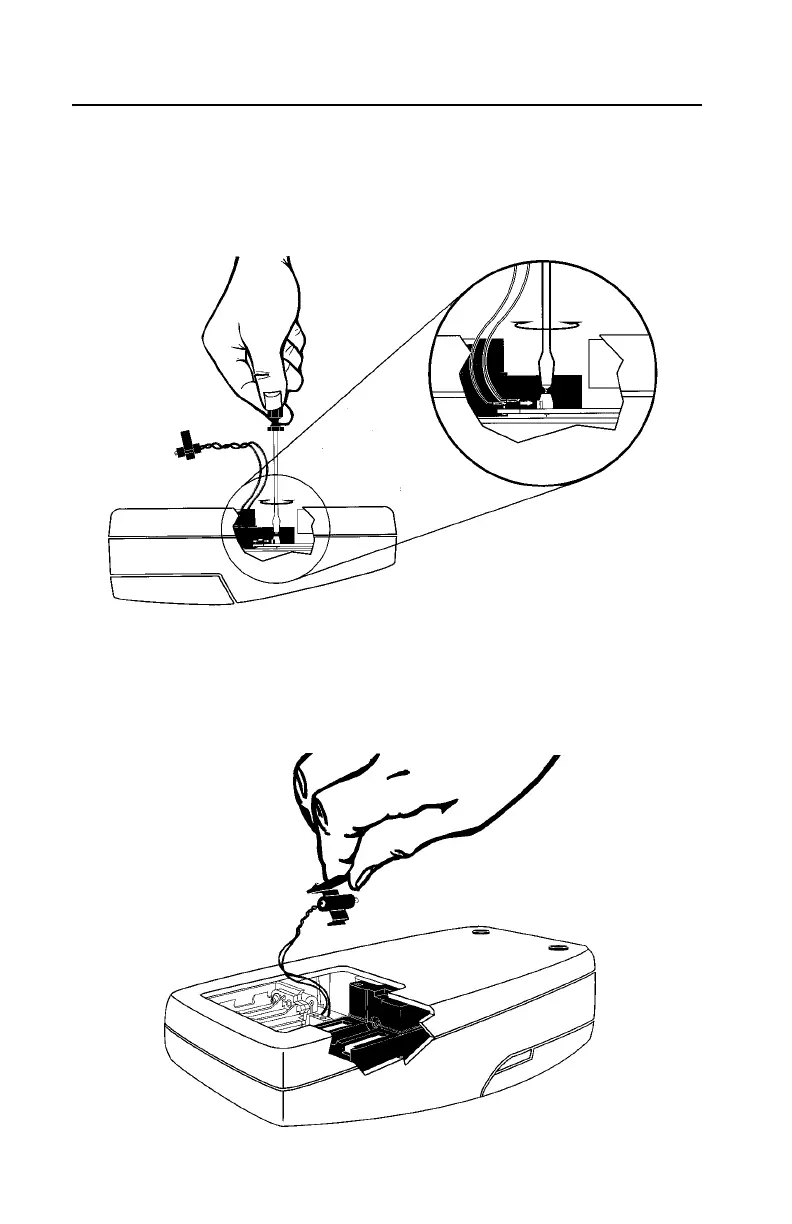

5. Gently bend the wires of the new lamp assembly into an “L” shape
so they fit easily into the housing. Insert the leads into the terminal
screws and tighten with clockwise turns. Gently tug on the wires to
make sure they are connected to the terminal block.
6. Hold the new lamp assembly by the tab with the lamp facing the
tope (keyboard) of the instrument. Slide the small catch on the other
side of the assembly into the black plastic slot (towards the nearest
edge of the instrument).
