Brushless DC Controller HST-350
Orginal operating manual Rev1.3
Important basic information
1. Important basic information
1.1 About this manual
These operating instructions contain information on the safe operation of this product.
Read these operating instructions and the safety instructions contained carefully before commis-
sioning the controller.
This information is intended for persons who perform tasks with or in con-
nection with the product.

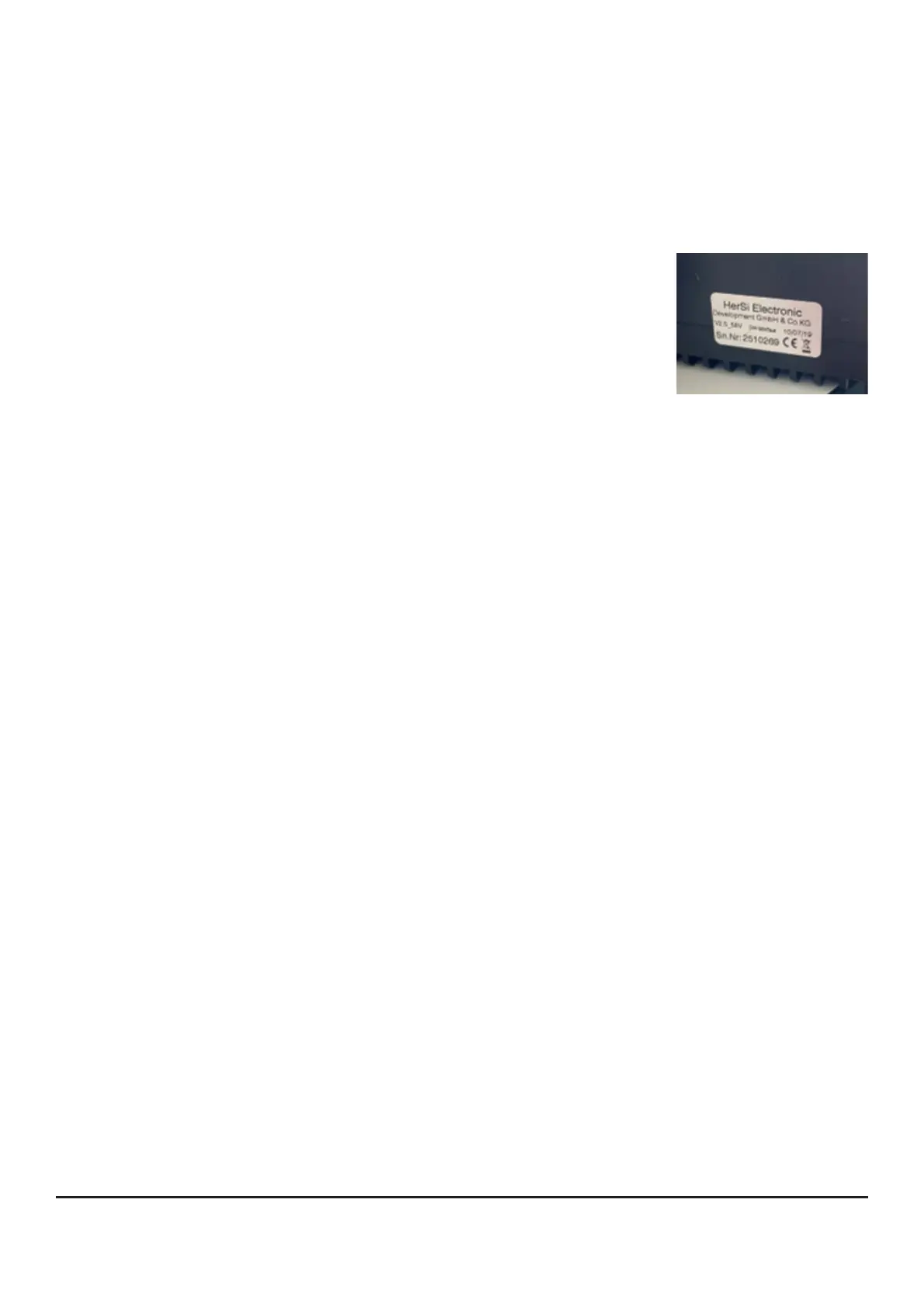

Please check the version/serial number of your hardware against the
small silver label on the controller. This 8-digit number should begin with
25xxxxxx.
1.2 General description of the product
The HST-350 V2.5 is a high performance brushless motor controller for industrial use. It is able to
drive (brushless) brushless DC motors (BLDC) with block commutation.
Operating modes:
• PWM control (pulse width modulation)
• current control
• speed control
• regenerative operation
Interfaces:
• CAN (isolated CAN bus optionally available)
• ADC (analog/digital converter - „pedal control“)
• PPM (pulse-pause modulation)
Features:
• protected against overvoltage and overcurrent
• cycle-by-cycle operation
•  preciseande󰀩cientcontrolathighestdynamics.
• graphical user interface (GUI) available
1.3 Scope of validity of the operating instructions
This manual is valid for the following products:
• For all controllers of the HST-350 series
1.4 Target group
Theactivitiesdescribedintheseoperatinginstructionsmayonlybecarriedoutbyqualiedper-
sonnel. (See chapter „Safety“)
