Brushless DC Controller HST-350
Orginal operating manual Rev1.3

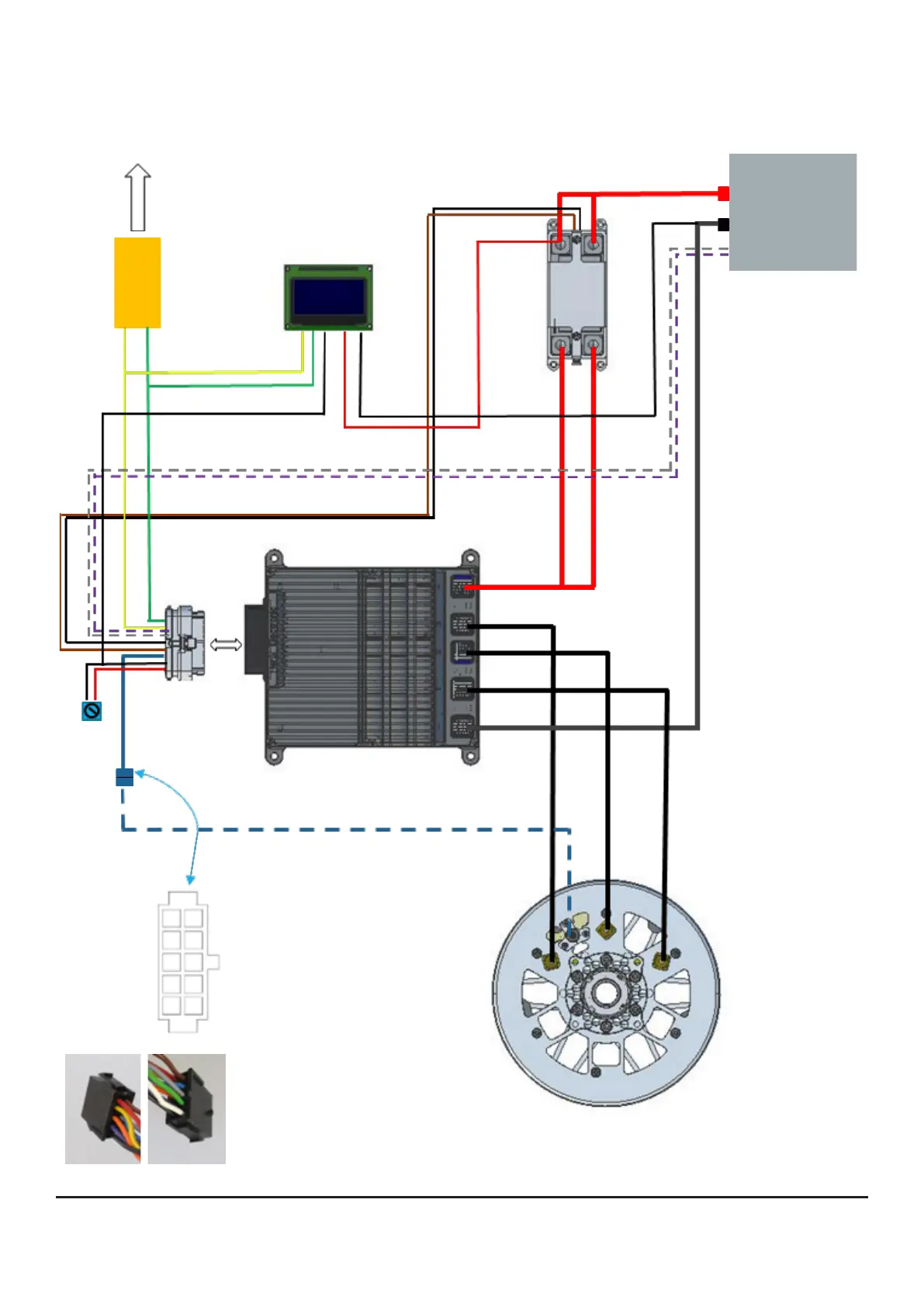

4.3 Wiring diagram
Mounting and commissioning
PC
CAN-
Adapter
2
1
3
4
5
6
7
8
9
10
Würth WR-MPC3, 10-
pole, 2-row,
View on cable side from
HST-350
Cable from 35-pin connector
1) Pin 1; black - GND-Temp
2) Pin 28; purple - n/a
3) Pin 30; orange - n/a
4) Pin 24; yellow - Hall sensor 1
5) Pin 35; red - Power supply 5V
of Hall sensors
6) Pin 3; white - Motor Temp. U
7) Pin 29; green - n/a
8) Pin 26; gray - Hall sensor 3
9) Pin 25; blue - Hall sensor 2
10) Pin 14; brown - GND - Hall
Sensor cable (optional)
Controller
HST-350
35-pole
connector
+L3L2
L1
-
HerSi-Relay
with housing
#10108207
Battery
32,0 -
58,8 VDC
L1
L2
L3
Motor
