Mounting and commissioning
4. Mounting and commissioning

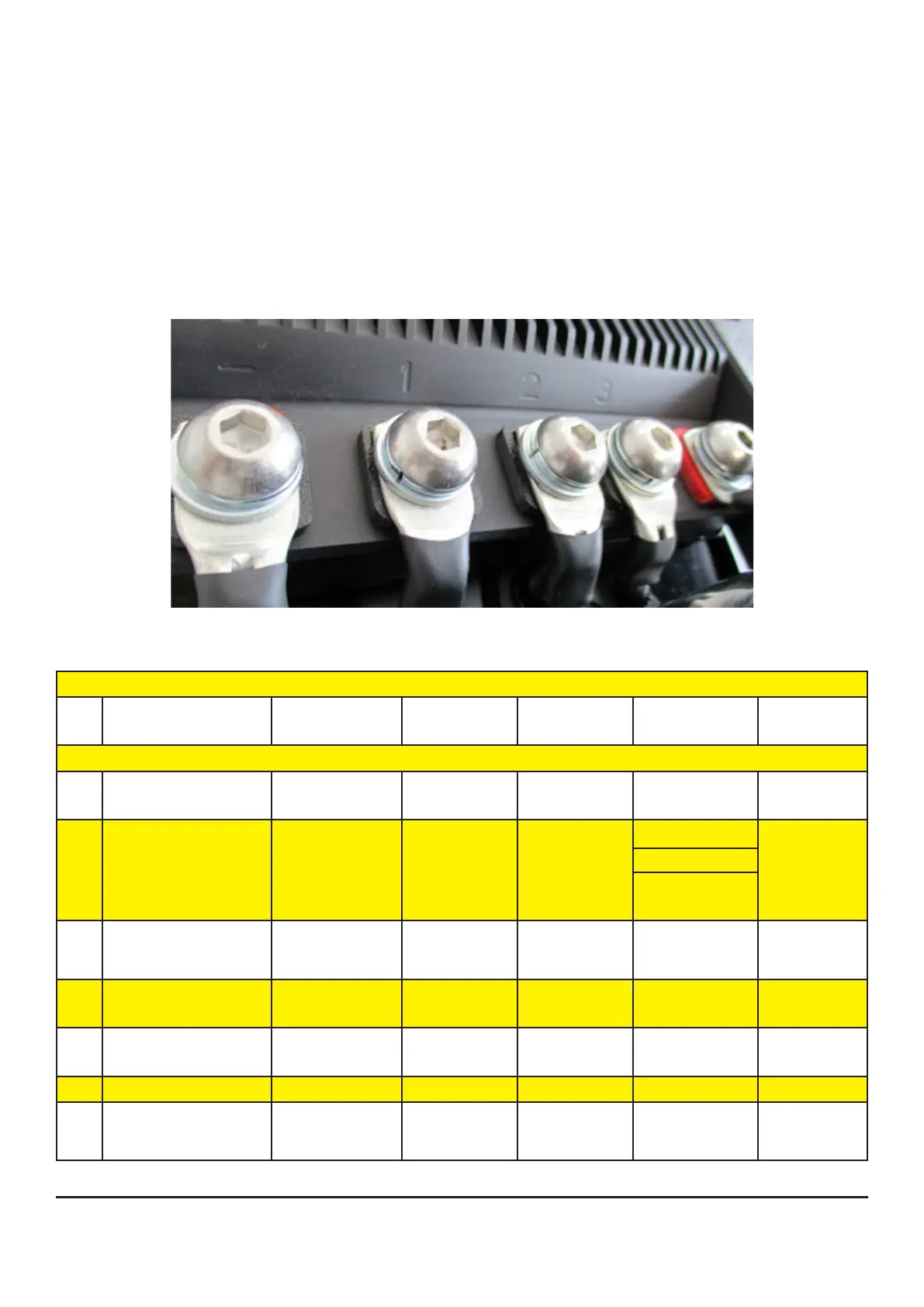

4.1 Connection of phase and battery cables
You have to take care of the cabling between controller and motor as well as controller and battery
yourself.
Make sure that the cross-sections are suitable for the power.
The phase and battery cables are to be fastened with M10 pan-head screws (tightening torque
17Nm).
Attach suitable ring or tube cable lugs to the cables for this purpose.
4.2 Assignment sensor interface
35 pole socket ESC of HST-350
Pin Signal description Signal
SW/HW
VDC Function Description Pin / Colour
1 signal ground of T-
sensor (pin3)
GND 0 GND
T-Sensor
10 pole 10 / black
2 Ignition Key / Klemme
15
ON/OFF battery:
32.0 – 58.8
input (digital) V_Bat
switch
(or optional:
Display)
3 motor temperature of
coil U
T_Mot-U 15 input (analog) 10 pole 5 / white
4 motor temperature of
coil V
T_Mot-V 15 input (analog)
5 motor temperature of
coil W
T_Mot-W 15 input (analog)
6 Signal Ground GND 0 GND
7 accumulator tempe-
rature
T_Bat-1 5 input (analog) For use with
KTY83 sensor
