Haemonetics MCS+ Service Manual
5
of 1
of 1 rating
112 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Reference Informati
on
7-5
P/N 39551-00
, Rev
. F
8’0”
7’8”
7’4”
7’0”
6’8”
6’4”
6’0”
5’8”
5’4”
5’0”
4’8”
4’4”
4’0”
Height
Body Weight (l
b)
Estimated Bl
ood Volu
me (ml)

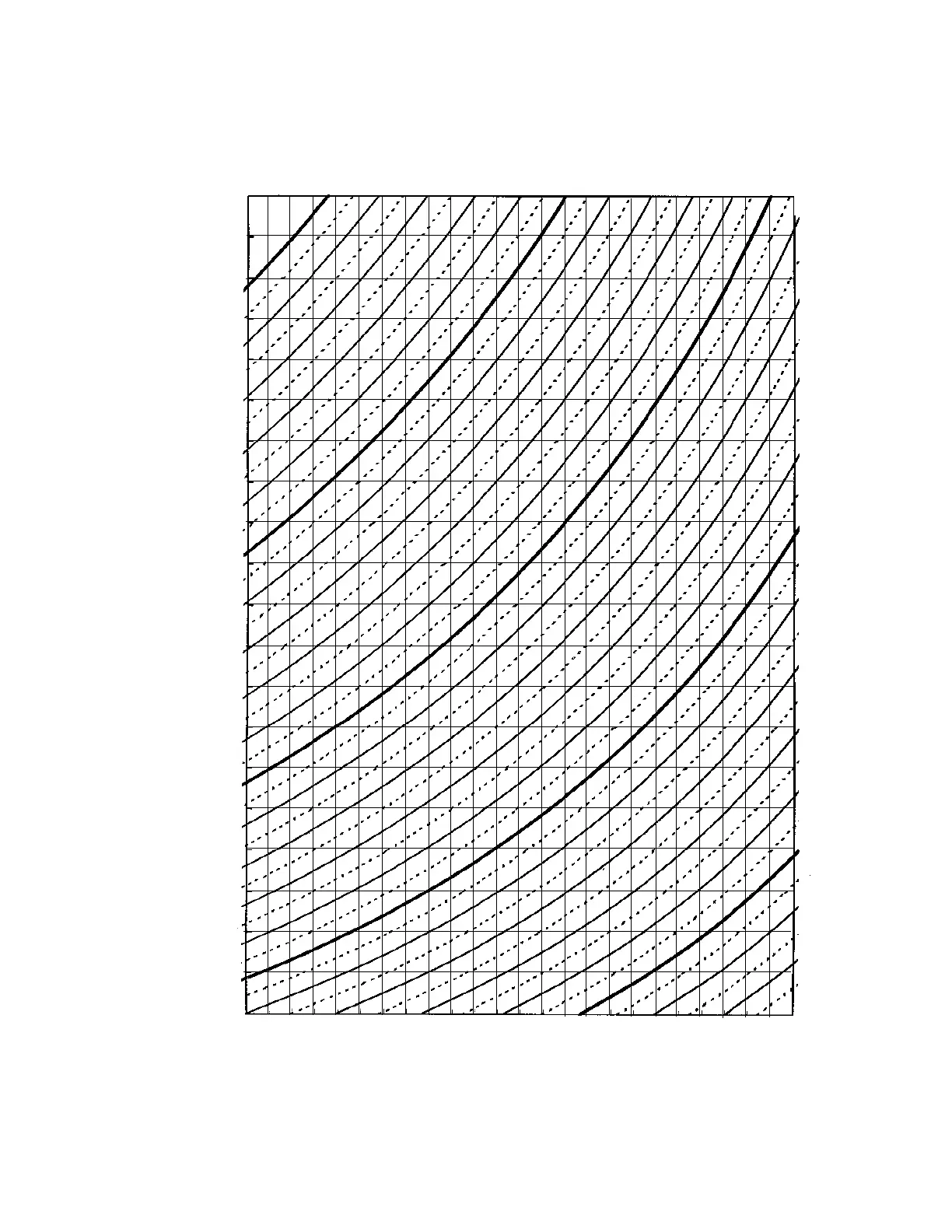

Chart 7-1: Estimated Blood Volume
for Males Utilizing Nädler Equation
3600
3800
4000
4200
4400
4600
4800
5000
5200
5400
5600
5800
8000
6800
6600
6400
6200
6000
7400
7200
7000
7600
7800
300
290
280
270
230
260
240
250
100
140
130
120
110
210
190
200
220
170
160
150
180
106
108
Table of Contents
Table of Contents
7
Chapter One, Introduction
11
OVERVIEW of the MCS+ Device
12
General System Description
17
Power Entry Module
18
User Panel
19
Donor/Patient Flow Indicators
19
Donor Flow Lights
19
Screens
21
Haemocalculator
22
Haemoupdate
22
Modify
23
Operator Configuration
23
Notice
24
Help
24
Control Panel
25
Keys
26
Mode Keys
26
Pump Keys
27
Cuff Key
28
Programming Keys
28
Protocol Card
29
Protocol Card Pouch
31
Valves
31
Pressure Monitors
31
Donor Pressure Monitor (DPM)
31
System Pressure Monitor (SPM)
33
Weigher
33
Air Detectors
33
Anticoagulant Line Air Detector (ACAD)
33
Blood Line Air Detector (BLAD)
33
Donor Line Air Detector 1 (DLAD 1)
34
Donor Line Air Detector 2 (DLAD 2)
34
Pumps
35
Blood Pump
35
White Pump
35
Anticoagulant Pump
36
Centrifuge
37
Mechanical Chuck
37
Vacuum Chuck
39
Manual Vacuum Release Button
40
Bowl Optics Sensor
40
Fluid Detectors
40
Line Sensor
40
Pressure Cuff
41
Machine Accessories
41
List No. 9010 Transport Box
41
List No. 7010 Machine Stand
41
Specifications
42
Dimensions (Approximate)
42
Weight
42
Power Requirements
42
Machine Symbol Chart
42
General
46
Disposable Set Storage and Handling
46
Inspection
46
Installation
46
Bowls
47
Latham Bowl
47
The Latham Bowl "Surge" Process
49
The Role of the White Pump
51
Elements of the Harness
52
Other Disposable Set Elements
55
Care Precautions
57
Safety Precautions
58
Storage and Handling of Disposables
58
Flammable Locations
58
Electrical Shock Hazards
58
Rotating Machinery
59
Communicable Disease
59
Restrictions to Flow
59
Twists and Kinks in Tubing
60
Process Messages
62
Interlock Messages
62
Notice Messages
63
Recovery Procedure
65
Repeat Venipuncture
65
Gravity Reinfusion Procedure
67
General
88
Maintenance and Cleaning
88
Centrifuge Maintenance
89
Cleaning the Optics Lens
94
Cleaning the Line Sensor
94
Cleaning the Disposable Identification Window
94
Cleaning the Blood, White, and Anticoagulant Pumps
95
Cleaning the Control Panel
95
Cleaning the Air Detectors
96
Cleaning the Air Filter
96
Cleaning the Exterior Surfaces and User Panel
97
Cleaning the DPM and SPM
97
Leakage Current
98
Field Service
98
Clinical Services
98
Installation and Training
98
Hot Line
98
Returned Goods Authorization (Rga) System
99
RGA Procedure
99
Maintenance Schedule
100
Reference Calculations
104
Anticoagulant in Product
104
AC Volume Returned to the Donor or Patient
105
Total Blood Volume Calculations
106
Expected Extracorporeal Volume
109
Determining Product Volume
110
Calculating Platelet Yields
110
Calculating Platelet Efficiencies
111
Anticoagulants
112
Acd-A
112
Acd-B
112
Sodium Citrate
112
Heparin
112
