2-16 System Description
P/N 39551-00, Rev. F
The MCS+ device checks to ensure that a valid card is properly installed before
a protocol can be performed. The MCS+ device also checks the disposable set to
ensure that the set installed is appropriate for the protocol selected.

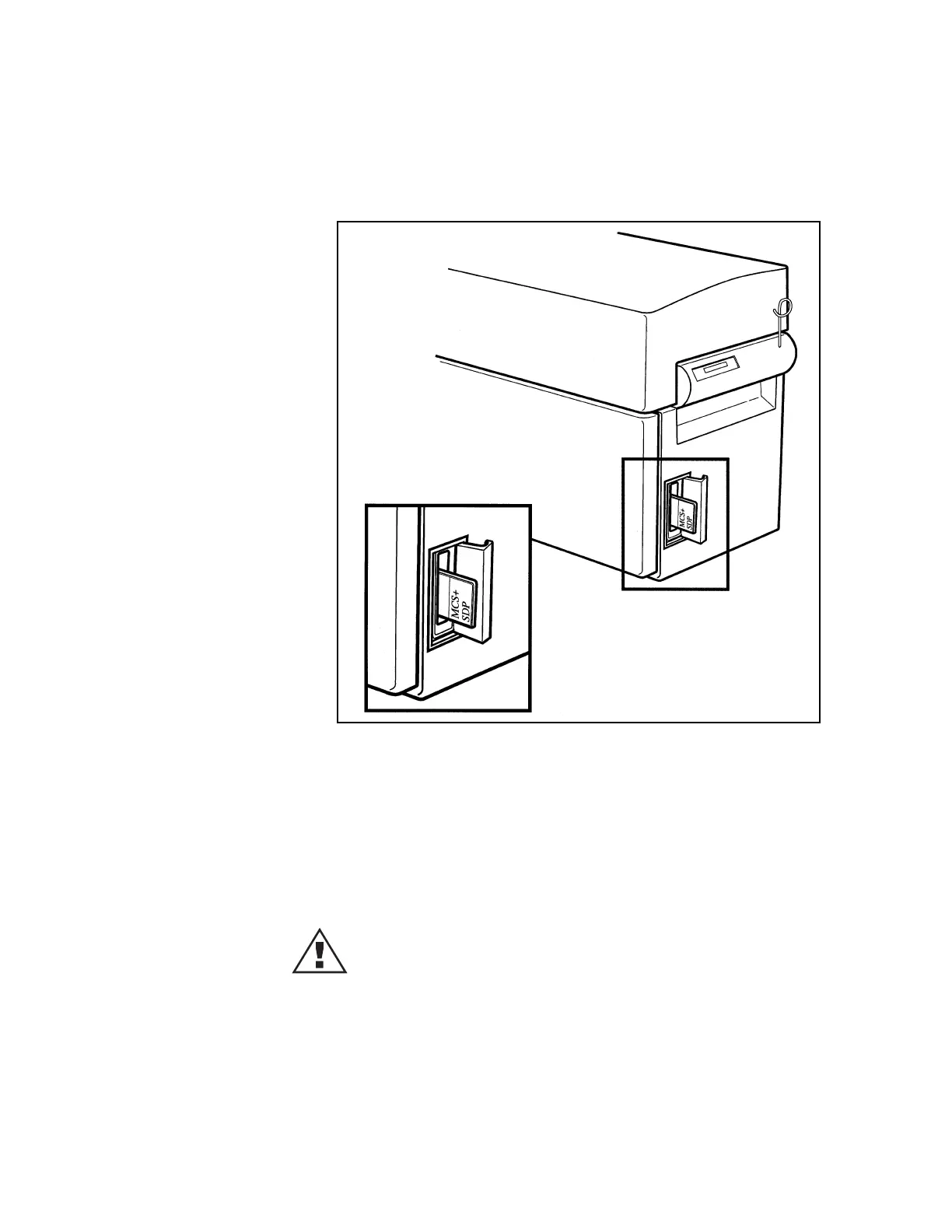

Figure 2-10, Protocol Card Inserted in Protocol Port
To install the Protocol Card, ensure that the MCS+ device is powered off. Open
the Protocol Card door and insert the Protocol Card with the label facing toward
the front of the MCS+ device (see Figure 2-10). Insert the card fully and then close
the card door.
Note: When the Protocol Card is not installed correctly, the card door will not
close.
Warning! The card door should never be opened during op-
eration of the MCS+ device. Opening the card door may inter-
fere with operation of the MCS+ device.
✍
