4501 On-Board Delayed Egress Installation
Instructions
I-EA00156
Rev 1, Rev Date: 9/28/19
Always visit www.hagerco.com for the latest Installation Instructions
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995

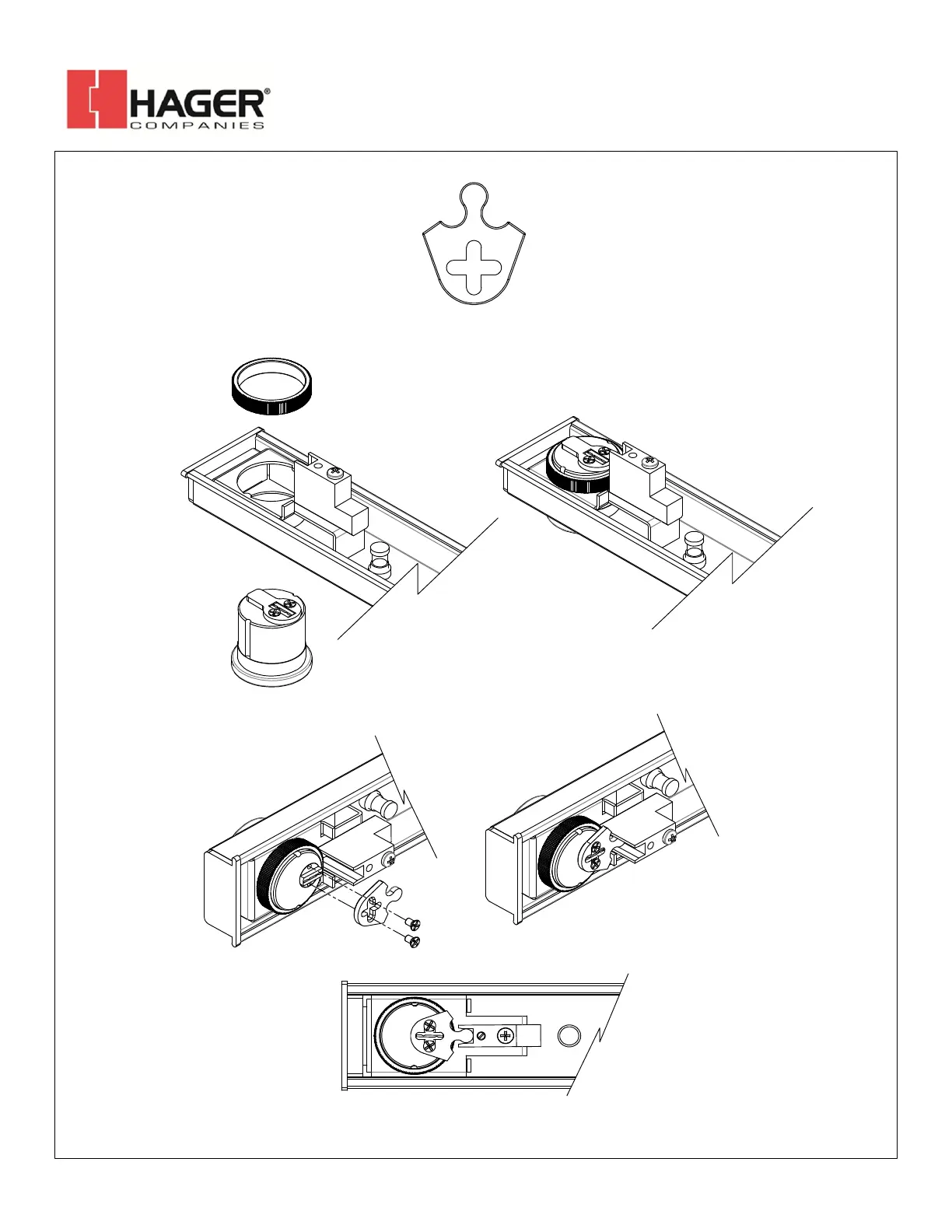

Use Hager 3978 Clover Tailpiece or equivalent.
1 Install Key Cylinder as shown and secure with locking nut provided.
2 Remove and position Tailpiece as shown.
3 Insert Key and check for proper operation.
