4501 On-Board Delayed Egress Installation
Instructions
I-EA00156
Rev 1, Rev Date: 9/28/19
Always visit www.hagerco.com for the latest Installation Instructions
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995
BLU (Reset/REX)
WHT (Bypass)
RED (+)
BLK (-)
Power
Transfer
24VDC
YEL (Rly – COM)
Hager 2909
REGULATED & FILTERED
POWERSUPPLY
GRN
BRN
MASTER
2-679-0626**
Door
Contact
GRN
WHT
GRY
(DPS)
**Door Contact connection is optional, but
required for anti-tailgate and door prop
alarms. 2-679-0626 is included with Master
Unit.
ORG
VIO
NOTE: 24VDC VOLTAGE CONFIGURATION
4' - Conductor Cable
standard
24vdc @ .33 AMP
BLUE
HAGER 45ET
ACCESS
CONTROL
SYSTEM
C
N/C
N/O
Installation Note: Cap any unused leads.
+(-)

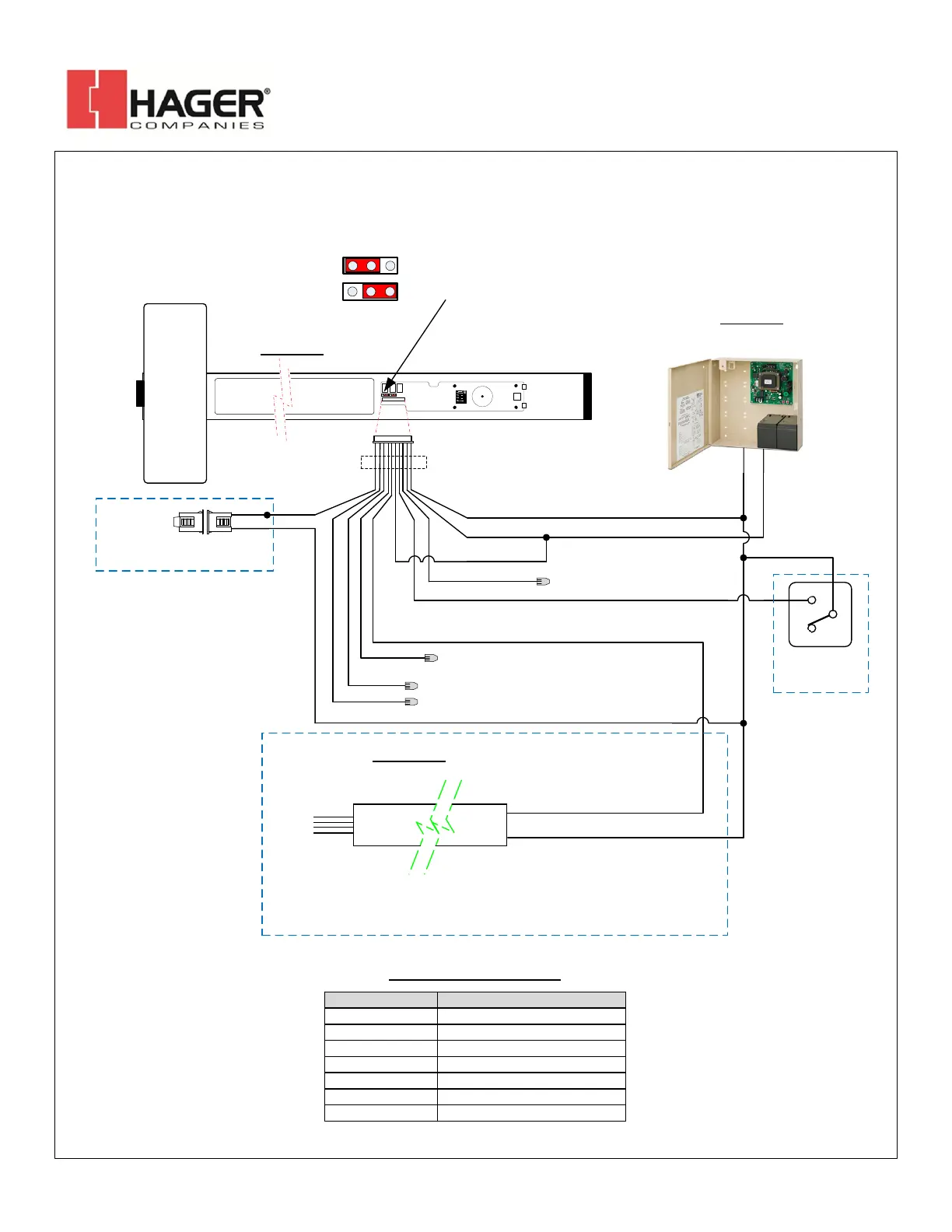

TYPICAL WIRING FOR SINGLE DOOR WITH HAGER ELECTRIC TRIM
4501 OBDE
J6 = GRN RELAY (Active when device is secure)
2 Left Pins = Set for Fail-Secure Electric Trim
2 Right Pins = Set for Fail-Safe Electric Trim
BLUE
STATUS LED INDICATIONS
Status Device Mode
OFF No Power
GREEN (Solid) Secure
YELLOW Irreversible Delay in Progress
RED (Solid) Alarmed & Unlocked
GREEN (Slow Flash) Bypassed
GREEN (Fast Flash) Authorized Unlock (REX)
RED (Fast Flash) Alarmed, Unlocked, & Door Opened
