8

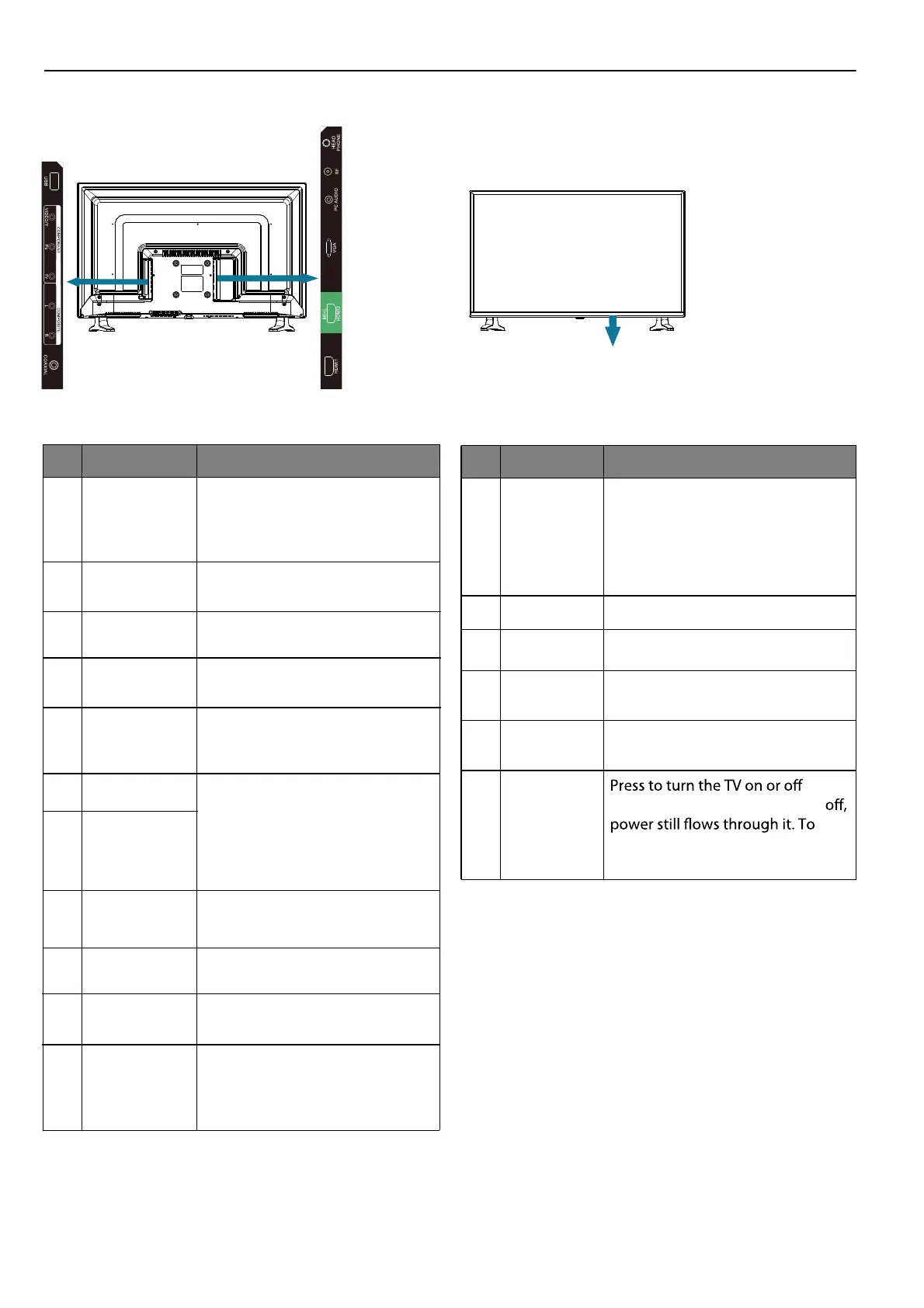

PERIPHERAL CONNECTION AND CONTROLS
NOITCENN
FRONT CONTROL
OCLAREHPIREP
# Item Description
1
M/S
2
VOL- Press to decrease the volume level.
3
VOL+
Press to increase the volume level.
4
CH-
Press to go to the next channel in
the channel list.
5
CH+
Press to go to
the
previous channel
in the channel list.
6 POWER
(standby mode). When the TV is
completely disconnect power,
unplug the power cord.
M/S VOL- VOL+ CH- CH+ POWER
# Item Description
1
2
3
USB
Insert a USB storage device to the
USB port to view JPEG photos,
and listen to MP3 music. (See
page 16 for more information.)
4
VIDEO
Connect the video cable for a
composite device.
5
6
6
HDMI1
HDMI2(MHL)
Connect HDMI devices to these
jacks. An HDMI cable carries both
video and sound. You do not need
to make an audio connection for
an HDMI device. Note:
The HDMI2
port is MHL enabled.
8
9
7
10
L
R
Connect the audio cables for a
component or composite device.
YPbPr
Connect the video cables for a
component device.
HEADPHONE
Connect headphones to this jack.
When headphones are inserted,
the TV speakers will be muted.
COAXIAL
Connect a coaxial audio cable
from a sound bar, stereo system,
receiver, etc.
RF
Connect an antenna or cable TV
cable to this jack.
PC AUDIO
Connect the audio cable from a
computer.
VGA
Connect the video cable from a
computer.
When your TV is on, quickly press
the Menu/Source (M/S) button at
the bottom of the TV to display the
menu screen. Press and hold the
M/S button for 2 seconds to display
the Input Source list.
