Single Split
17

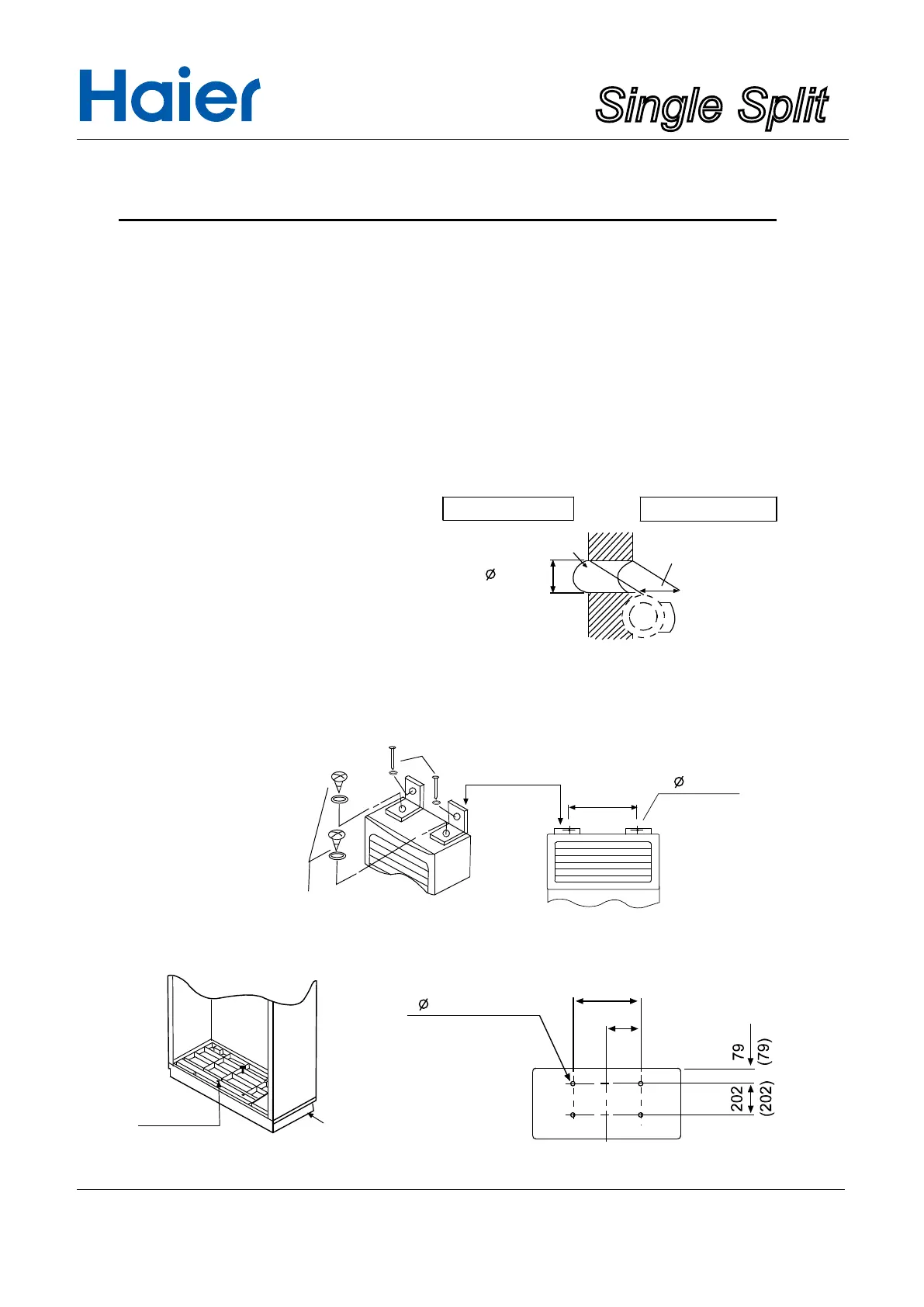

Installation of indoor unit
Selection of installation place
Place where it is easy to route drainage pipe and outdoor piping.
Place away from heat source and with less direct sunlight.
Place where cool and warm air could be delivered evenly to every corner of the room.
Place near power supply socket. Leave enough space around the unit (refer to installation
drawings).
Fixing of the unit
1.Position of the wall hole
Wall hole should be decided according to installtion place and piping direction. (refer to
installati
on drawings)
2.Making a wall hole
Drill a hole of 70mm dia. with a little
slope towards outside.
Install piping hole cover and seal it
with putty after installation.
Fixing of indoor unit
INDOOR SIDE
OUTDOOR SIDE
wall hole
wall thickness
( Cross section of wall hole )
70mm
With the unit set up vertically,fix the fitting metal to the unit with screws, then fix
the fitting metal to the wall with cement nail and washer, as shown below:
Moreover, if want to fix the unit more firmly, you should fix the bottom panel to
the ground with concrete bolts,as shown below:
Fitting hole
Bottom Panel
330
2- 10 hole
Screw
Fitting metal
Cement nail
4- 14 hole 30 depth
260
130
Installation procedures
