Indoor Unit Installaion
Driverƽ
Torque wrench
ƽ
(17mm,22mm,26mm)
Nipperƽ
Reamerƽ
Hacksawƽ
Pipe cutterƽ
Gas leakage detector orƽ
soap-and-water solution
Hole core drillƽ
Flaring toolƽ
Spanner(17,19 and 26mm)ƽ
Knifeƽ
Measuring tapeƽ
Necessary Tools for Installation
Power Source
Before inserting power
into receptacle, check the voltage without
fail.
The power
supply is the same as the
corresponding nameplate.
Install an exclusive branch circuit of the power.
Areceptacleshallbesetupin a distancewherethepowercable
can
be
reached.
Donotextendthecablebycuttingit.
Selection of Installation Place
Place, robust not causing vibration, where the body can be
supported sufficiently.
ƽ
Place, not affected by heat or steam generated in the vicinity,
where inlet and outlet of the
unit are not disturbed.
ƽ
Place, possible to drain easily, where piping can be conne-
cted with the outdoor unit.
ƽ
Place,wherecoldaircanbespreadin a roomentirely.
ƽ
Place, nearby a power receptacle, with enough space around.
ƽ
Place where the distance of more than lm from televisions,
radios, wireless apparatuses
a
nd fluorescent lamps can be
left.
ƽ
In the case of fixing the remote controller on a wall, place
where the indoor unit can
receive signals when the fluore-
scent
ƽ
lamps
in the room are lightened.
ƽ
ƽ
ƽ
The distance between
theindoorunitandthe
floor should be more
than 2m.
ThemodelsadoptHFCfreerefrigerantR410A
more than
10cm
more than 15cm
more than 10cm
Arrangement of piping
directions
Rear left
Left
Rear
right
Right
Below
Attention must be paid to
the rising up of drain hose
Remote controller (1)
R-03 dry battery (2)
Mounting plate (1)
Drain hose (1)
Ø4X25 Screw
(4)
Plastic cap (4)
Accessory Parts
FOR 07K 09K 12K
Selection of Pipe

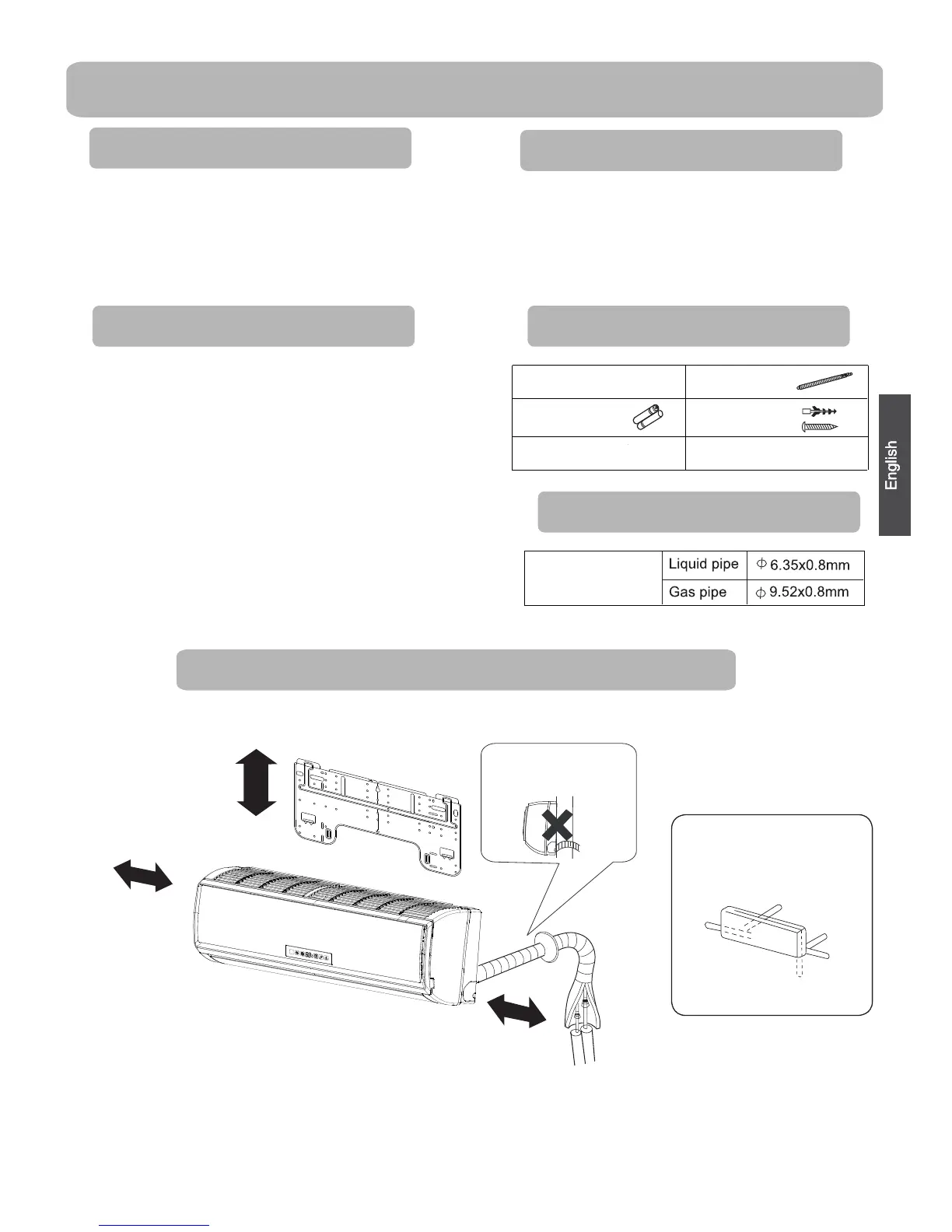

Drawing for the installation of indoor units
ƽ
Air purifying filter(Optional) (1)
Please be subject to the actual product purchased,the above picture is just for your reference.
5
