Haier HL19R - Page 10

10

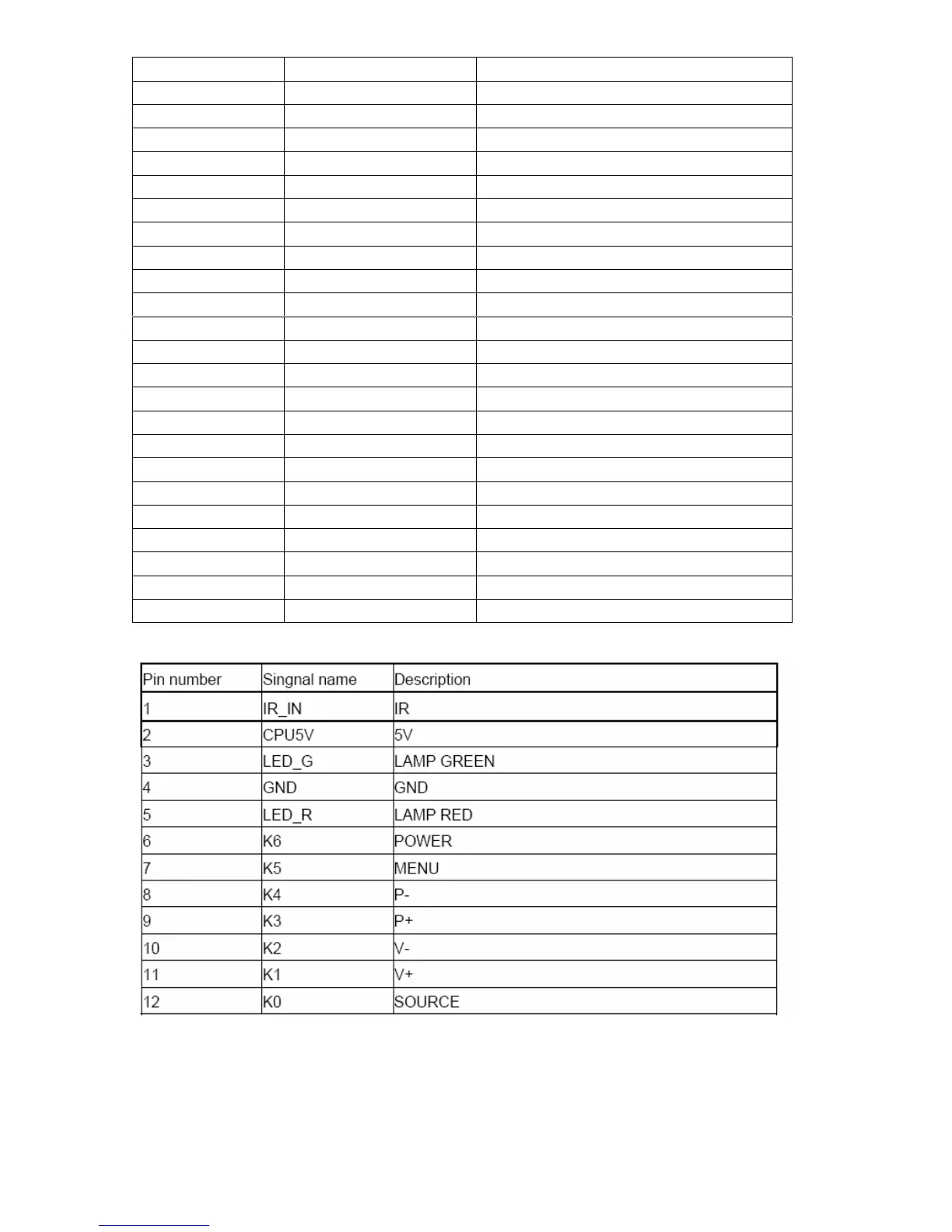

Keypad and remote connector(CN2)
Speaker connector (CN1)
1-3 Power Power for panel
4-6 GND Ground
7 RXE0- LVDS EVEN 0 - Signal
8 RXE0+ LVDS EVEN 0 + Signal
9 RXE1- LVDS EVEN 1 - Signal
10 RXE1+ LVDS EVEN 1 + Signal
11 RXE2- LVDS EVEN 2 - Signal
12 RXE2+ LVDS EVEN 2 + Signal
13,14 GND Ground
15 RXEC- LVDS EVEN Clock - Signal
16 RXEC+ LVDS EVEN Clock + Signal
17 RXE3- LVDS EVEN 3 - Signal
18 RXE3+ LVDS EVEN 3 + Signal
19 RXO0- LVDS ODD 0 - Signal
20 RXO0+ LVDS ODD 0 + Signal
21 RXO1- LVDS ODD 1 - Signal
22 RXO1+ LVDS ODD 1 + Signal
23 RXO2- LVDS ODD 2 - Signal
24 RXO2+ LVDS ODD 2 + Signal
25,26 GND Ground
27 RXOC- LVDS ODD Clock - Signal
28 RXOC+ LVDS ODD Clock + Signal
29 RXO3- LVDS ODD 3 - Signal
30 RXO3+ LVDS ODD 3+ Signal
