Haier HL42XK1 User Manual

A A
B B
C C
D D
E E
4 4 3 3 2 2 1 1

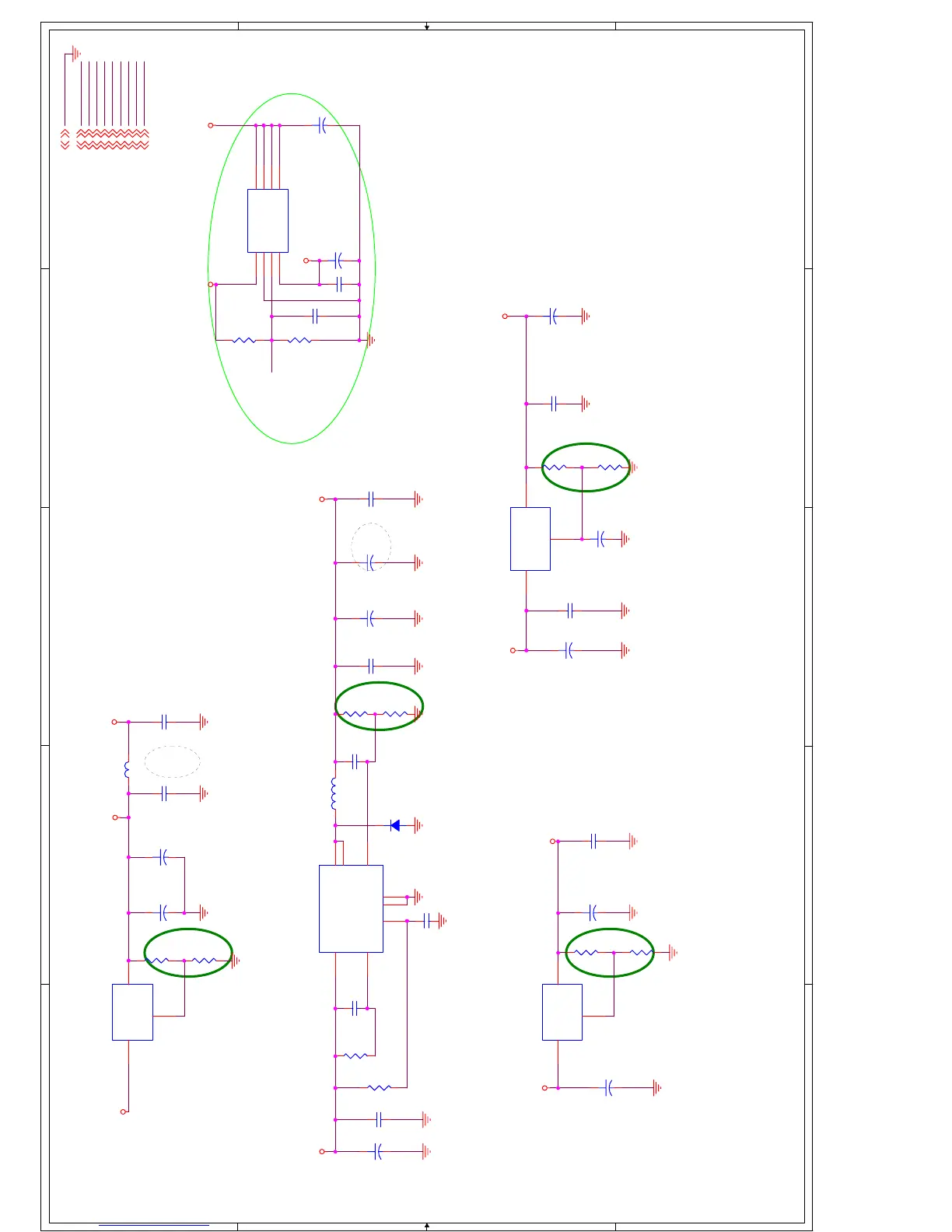

1.25 x (1+180/110) = 3.3V
1.25 x (1+180/110) = 3.3V
0.8 x (1+1K/2K) = 1.2V
or +12V
1.25 x (1+162/150) = 2.6V
Low ESR
VTT FOR DDR TERMINATOR MEM_VREF FOR DDR AND MT5381 VREF
DV10 +5V +5VSB +3V3SB MEM_VREF VTT DDRV DV33 AV33
GND
MEM_VREF
GND1,3,4,5,6,7,8,9,10,11,12,13,14,15 +5V1,3,4,5,8,9,10,15 DV107 +5VSB1,11,15 +3V3SB1,4,7,8,9,10,13 MEM_VREF6 VTT6 DDRV6,7 DV334,7,9,14 AV333,5,8,9,10,13
+3V3SB
+5VSB
DV33
+5V DV10
DDRV
+5V
AV33
+5V
DDRV DV33
VTT
R956 150_1%
R0603/SMD
R32 100K 1%
+
CE8
100uF/16V C100UF16V/D6.3H7
CB12 0.1uF C0402/SMD
L134 NS/FB BEAD/SMD/0805
CB37 0.1uF C0402/SMD
CB9
NC/1uF
R7 2K_1% R0603/SMD
R10 110_1% R0603/SMD
+
CE16 100uF/16V C100UF16V/D6.3H7
R519 100K R0603/SMD
R1 110_1% R0603/SMD
CB64 0.1uF C0402/SMD
U11
LT1084 TO-252-3 TO-252-3/SMD
3
1
2
IN
ADJ/GND
OUT
R11 180_1% R0603/SMD
C301 0.1uF C0402/SMD
U1 AZ1117/adj
SOT223/SMD
1
23
ADJ/GND
OUTIN
+
CE33
470uF/16V C470UF16V/D8H9
R5 1K_1% R0603/SMD
CB33 0.1uF C0402/SMD
+
CE2
100uF/16V C100UF16V/D6.3H7
C302 100nF C0402/SMD
+
CE15 100uF/16V C100UF16V/D6.3H7
CB5 0.1uF C0402/SMD
U6 AZ1117/adj
SOT223/SMD
1
23
ADJ/GND
OUTIN
U3 AP1513/SOP-8 SOP8/SMD
1
2
3 4
5 6
7
8
FB
EN
OCSET Vcc
O/P O/P
Vss
Vss
CB42 0.01uF C0402/SMD
CB573 0.1uF C0402/SMD
R29 100K 1%
U4
IC RT9199 DDR Termination SOP-8
1 2 3 4 5
6 7 8
VIN GND REFEN VOUT VCNTL
VCNTL VCNTL VCNTL
+
CE71 220uF/16v C220UF10V/D6.3H7
+
CE9 220uF/16V C470UF16V/D8H9
+
CE611 22uF/16V C22UF16V/D4H7
+
CE1
100uF/16V C100UF16V/D6.3H7
R3 180_1% R0603/SMD
R518 3K R0603/SMD
R958 162_1% R0603/SMD
CB8 0.1uF
L7 27uH/POWER CHOKE
L5-9
CB574 0.1uF C0402/SMD
+
CE654 220uF/16v C470UF16V/D8H9
+
CE579 470uF/16V C470UF16V/D10H9
+
CE6 47uF/16v
D95 SCHOTTKY DIODE/B340A SMD-403A
CB6 0.1uF C0402/SMD
