Tools and Parts Required for Installation:
Philips Head Screw Driver
Flat Head Screw Driver
Electric Drill and 1/8 inch drill bit
Stud finder (optional)
(6) Wood screws for mounting plywood
Plywood board; size 30 (h) by 24(w) inches or wood slats
Venting materials:
4 inch diameter metal exhaust rigid ducting and fittings or UL flexible metal dryer vent hose,
that should not exceed 6 feet.
2 additional hose clamps for ducting outside exhaust vent hose
Metal Elbows or outdoor vents as needed.
6
SET UP INSTRUCTIONS
.

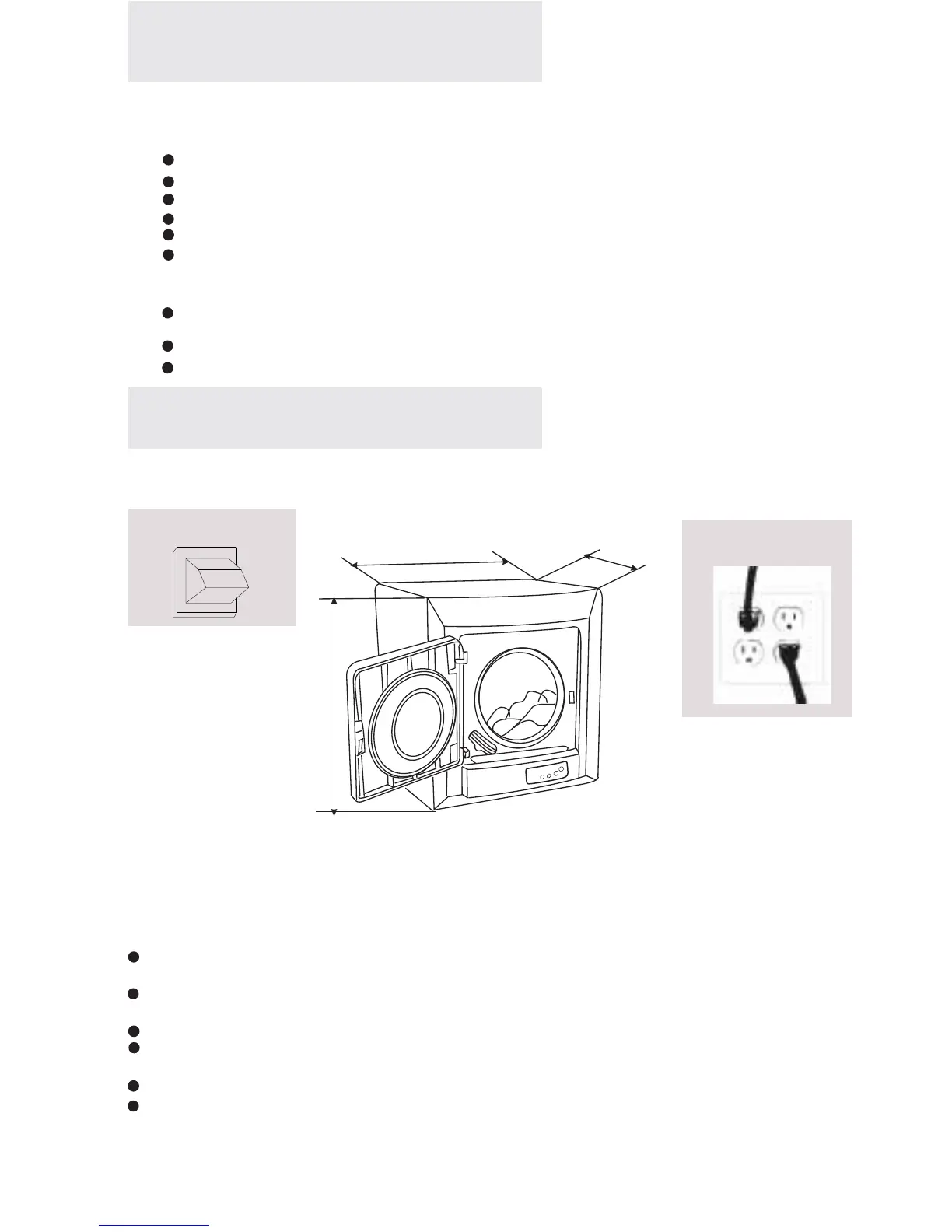

First find a suitable location where you can mount the dryer on the wall
and still have access to 120 Volt outlets and exterior venting.
16.73”
26.97”
24.8”
Vent to outside
Type: Electric dryer
Rating: Please refer to the rating label regarding detailed information
Size: 26.97x24.8x16.73(inch)
Capacity: IEC2.6cu.ft.( 7.7 lb)
Weight: 52.9lbs(24kg)
Location of Your Dryer
Nearest 120 Volt
AC outlet
Check dryer size and ensure a good location for the dryer installation on a wall where you can
mount the unit using wall studs or beams.
It is recommended to use a plywood board (30 by 24 inches) to mount the dryer using the walls
beams and studs as support, rather than just wood slats.
Make sure the dryer power cord can reach a 120 Volt outlet.
Make sure you can connect the exhaust vent to the outside or designated dryer vent (in a
laundry room).
The length of exhaust ducting should not exceed 6 feet.
Please read the additional ducting information and warnings in this manual.
