Location for installation and options for various walls

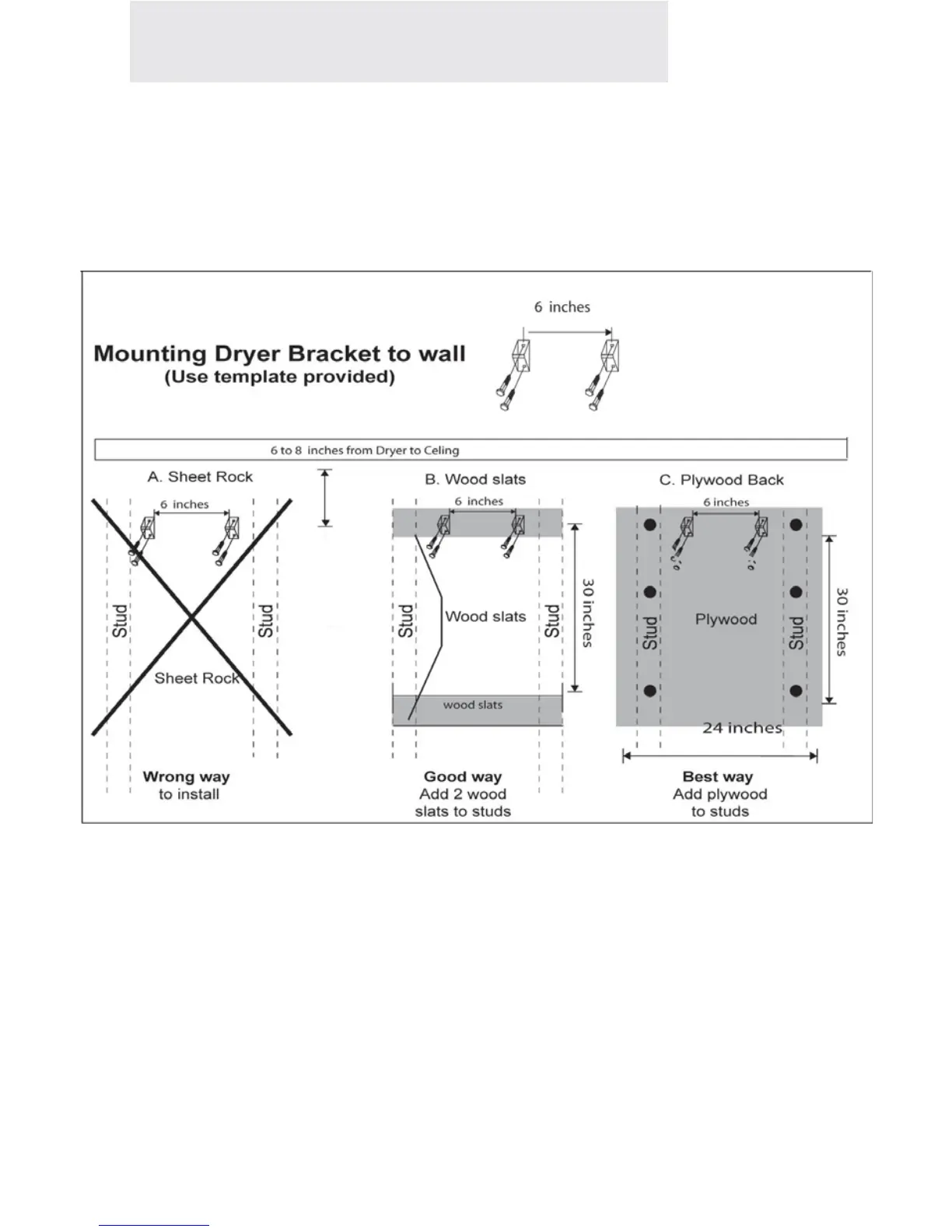

1.There are 2 mounting options- either using wood slats or a whole plywood board. The dryer
installation to the wall should be able to accommodate the weight of the unit of 52 lbs. plus about
10 lbs. for clothing (or approximately 62 lbs). We suggest you use a plywood board for added
support and safety, this is the best way to mount.
2.Determine dryer position on the wall. A minimum of 6”(Inches) is needed between the top
of the dryer and the ceiling for installation.
3.If mounting the dryer above a washing machine, allow sufficient space to open the top lid of
the washer.
Wall Mounting Instructions
INSTALLATION
INSTRUCTIONS
4. The Best installation is to add a plywood board to the wall studs.
As a second option- you can use two (2) slats (2 by 4 “) and attach to studs.
9

Haier hlp140e Specifications

General

AC input voltage	120 V
AC input frequency	60 Hz
Energy consumption	- kWh
Energy efficiency class	-
Annual energy consumption	400 kWh
Door hinge	Left
Drum volume	73.62 L
Control type	Touch
Loading type	Front-load
Product color	White
Built-in display	No
Appliance placement	Freestanding
Cycle time	150 min
Drum capacity	2.6 kg
Number of cycles	4
Package depth	482.6 mm
Package width	722.2 mm
Package height	780 mm
Package weight	28123 g
LED program stage indicator	Yes

Weight and Dimensions

Depth	425 mm
Width	630 mm
Height	685 mm
Weight	24766 g
