vice Manual
Model No: TL1001S003V1.1
Issue
Rev.
13
Se
r

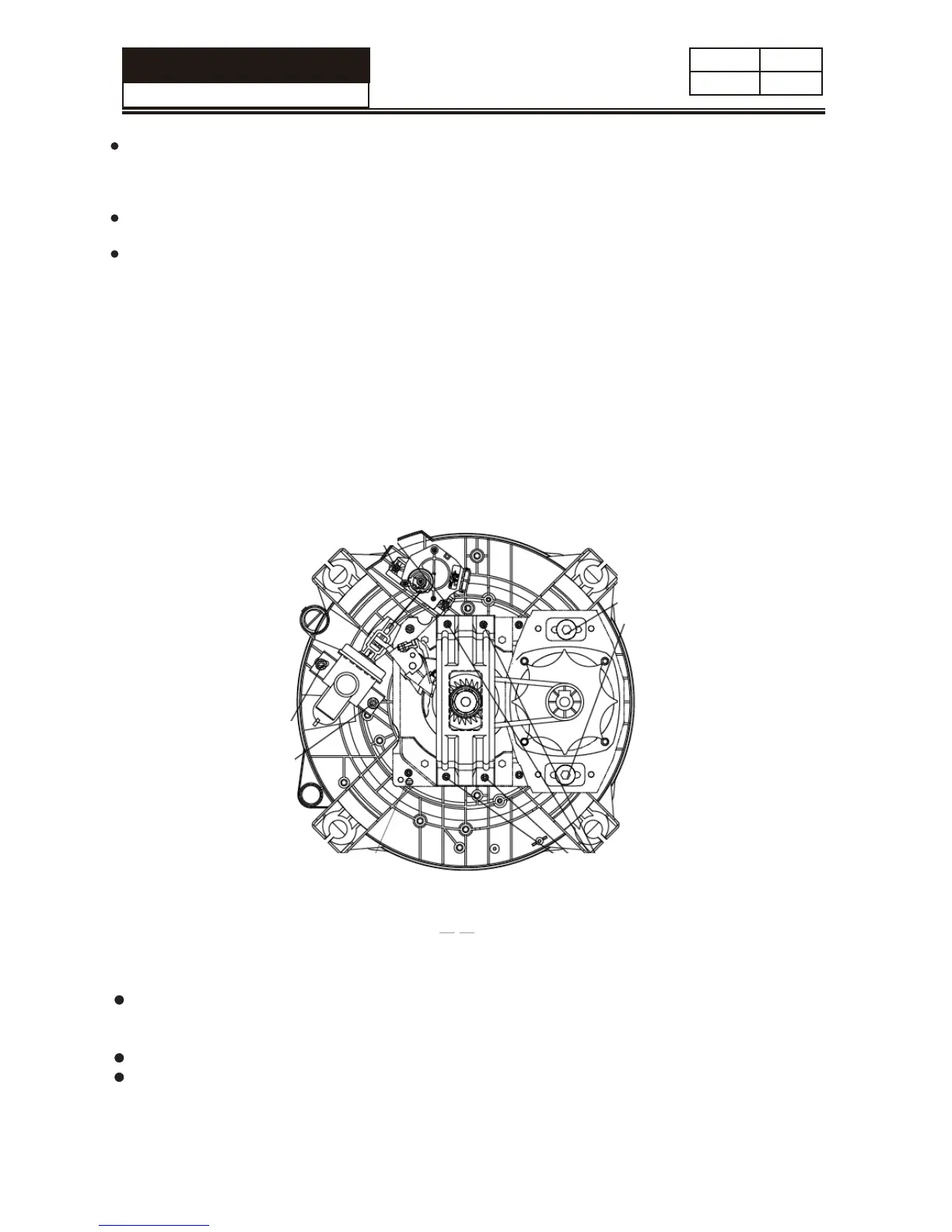

3)Method cabinet and outer tub of disassembling
A.Loosen the two motor bolt unit to dismantle the motor.To adjust the
tension of the blet ,loosen the bolts and move the motor left and right .
B.Loosen the four fastening screws to dismantle the delivery shield .
C.Loosen the three fastening screws to dismantle the drain motor .
D.dismantle the drain pipe ,
E.In dismantling the inner tub ,first take off the outer tub cover ,then
dismantle the pulsator ,finally dismantle the inner tub .Handle with care
when taking the inner tub off from th
e outer tub
.
4)Points of attention in assembly
In installation of the drain pipe ,please smear a piece of 801 glue at the connection
part between the drain pipe and outer tub and between the overflow hose and drain
hose to guarantee that the drain pipe will not leak .
In fastening the screws ,make it tight without sliding .
Take care not to scratch the cabinet and influence the appearance of the machine .
Attention :
Do not lift the control panel seat by force ,otherwise the safety switch control rod may get
transformed.and the jointe
r part of the connecting pipe of the water level sensor may be
loosened ,therefore influence the normal operation of the microswitch and water level
sensor .
After opening the control panel seat ,hold it with one hand or lean it on supporter like the
wall .Do not put it down .
First loosen the screws when dismantling the computer controller .
