Haier HLP24E Service Manual

Se r vice Manual
Issue
Rev.
Model No: TL1001S003V0
12

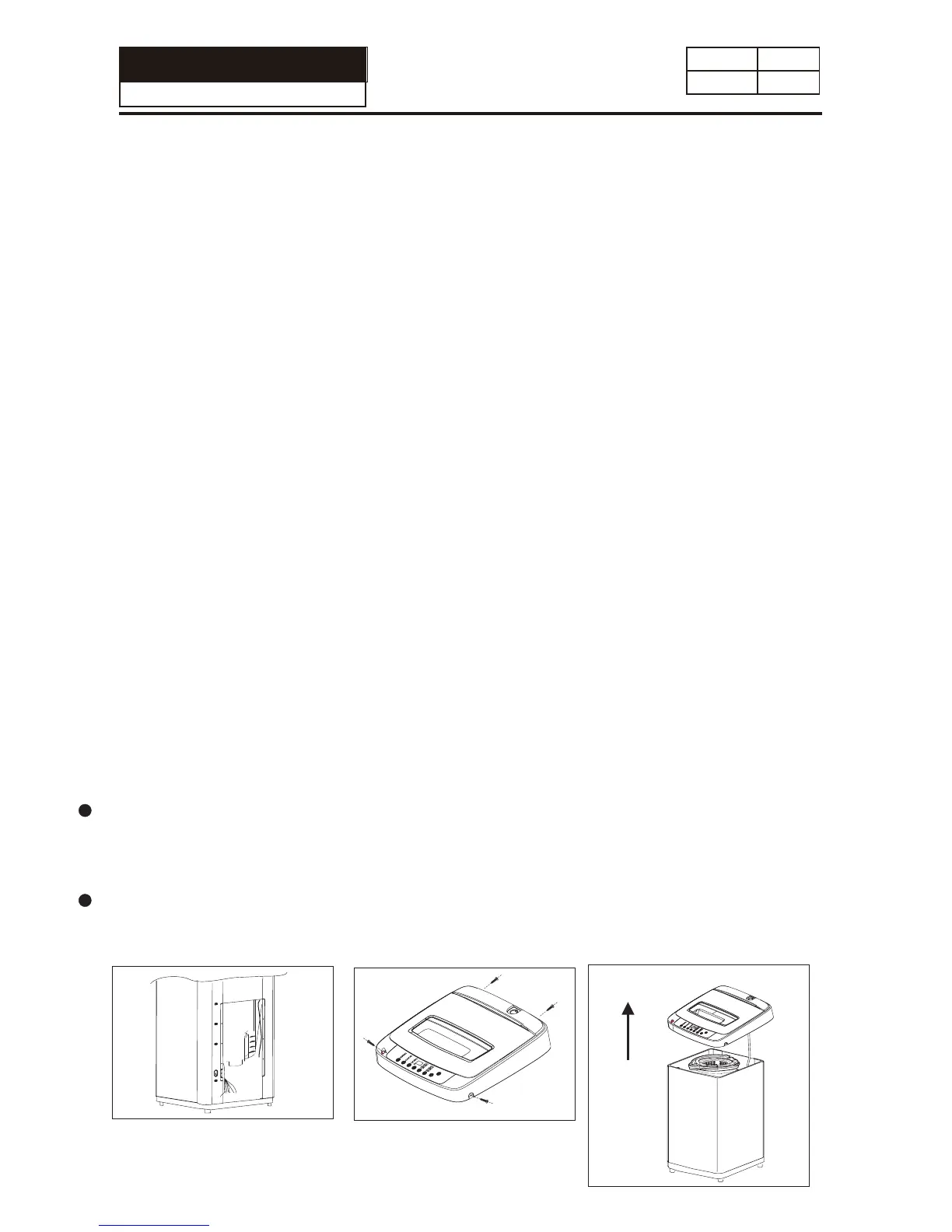

1.Method of opening panel seat
A.Open the back cover .Loosen the locking belt fixed on the cabinet(used
inner wiring ),to loosen the inner wiring
B. Loosen the four screws used to install the control panel seat (rear and side)
C.Lift the rear upwards.Loosen the control panel seat from the inlay of
Attention :
Do not lift the control panel seat by force ,otherwise the safety switch control
rod may get transformed.and the jointer part of the connecting pipe of the
water level sensor may be loosened ,therefore influence the normal
operation of the microswitch and water level sensor .
After opening the control panel seat ,hold it with one hand or lean it on
supporter like the wall .Do not put it down .
First loosen the screws when dismantling the computer controller .
General attention
Be sure to pull off the power plug in disassembly or maintenance
Use stipulated crimo terminals in connecting the wires between the
conducting wires as far as possible ,and fix with suitable tools ,and insulate
with insulation tape completely .
In inserting the conducting wires ,be sure to plug the pins to the root and
make it hard to be pulled out .
If welding is needed ,be careful not to touch the plastic or other insulation
parts and the parts with the iron .
When connecting the wires ,be sure not to make the wire touch the mobile
parts like the belt ,radiating pulley and jib ect.,and the sharp protruding
parts and the parts with high temperature (motor ). Connect and fix the wires
as per their original mode .
If there is metal object at the wire fixing point,be sure to insulate with in
sulation materials,
Retain the dismantled screws of future usage in installation ,
Points of attention in usage of electic components
In case that the power is on ,the earthing circuit of the computer sequencer
can have 120V voltage to earth.Take care not to get electric shock .
Store the computer sequencer and driver under 4 degree to 30 degree ,
Avoid direct sunlight .
In trouble -shooting ,it may require hot-line work .Please be extremely .
Key points in disassembly

Haier HLP24E Specifications

General

Door hinge	Up
Drum volume	42.4 L
Control type	Buttons
Display type	LED
Loading type	Top-load
Drum material	Stainless steel
Product color	White
Built-in display	Yes
Appliance placement	Freestanding
AC input voltage	120 V
AC input frequency	60 Hz
Energy consumption washing per cycle	- kWh
Drum capacity	- kg
Spin-drying class	-
Maximum spin speed	800 RPM
Noise level (spin)	- dB
Load balancing system	No
Number of washing programs	3

Weight and Dimensions

Depth	510 mm
Width	500 mm
Height	901.7 mm
Weight	19504 g
