Haier HRF-628AF6 User Manual

SERVICE MANUAL
Model: HRF-628AF6/IF6
19
Issue 2013-04-07
REF. Ref1304S001V0
3）Ice-detection: When ice-maker is under working status, ice-measure staff move downward firstly to detect
if the ice is full. If the measure-staff can move to the lowest position, it means that the ice in ice-box is not full,
and it can continue next ice-releasing action. If the measure-staff can not move to the lowest position, machine
will take for the ice in ice-box id full, and return to ice-making delay time to wait another ice-detection action,
and then come into being cycle.
4）Ice-releasing: If the result of ice-detection is not full, ice-box will rotate to release ice. After ice-releasing,
machine going on another water in action, and then come into being cycle.

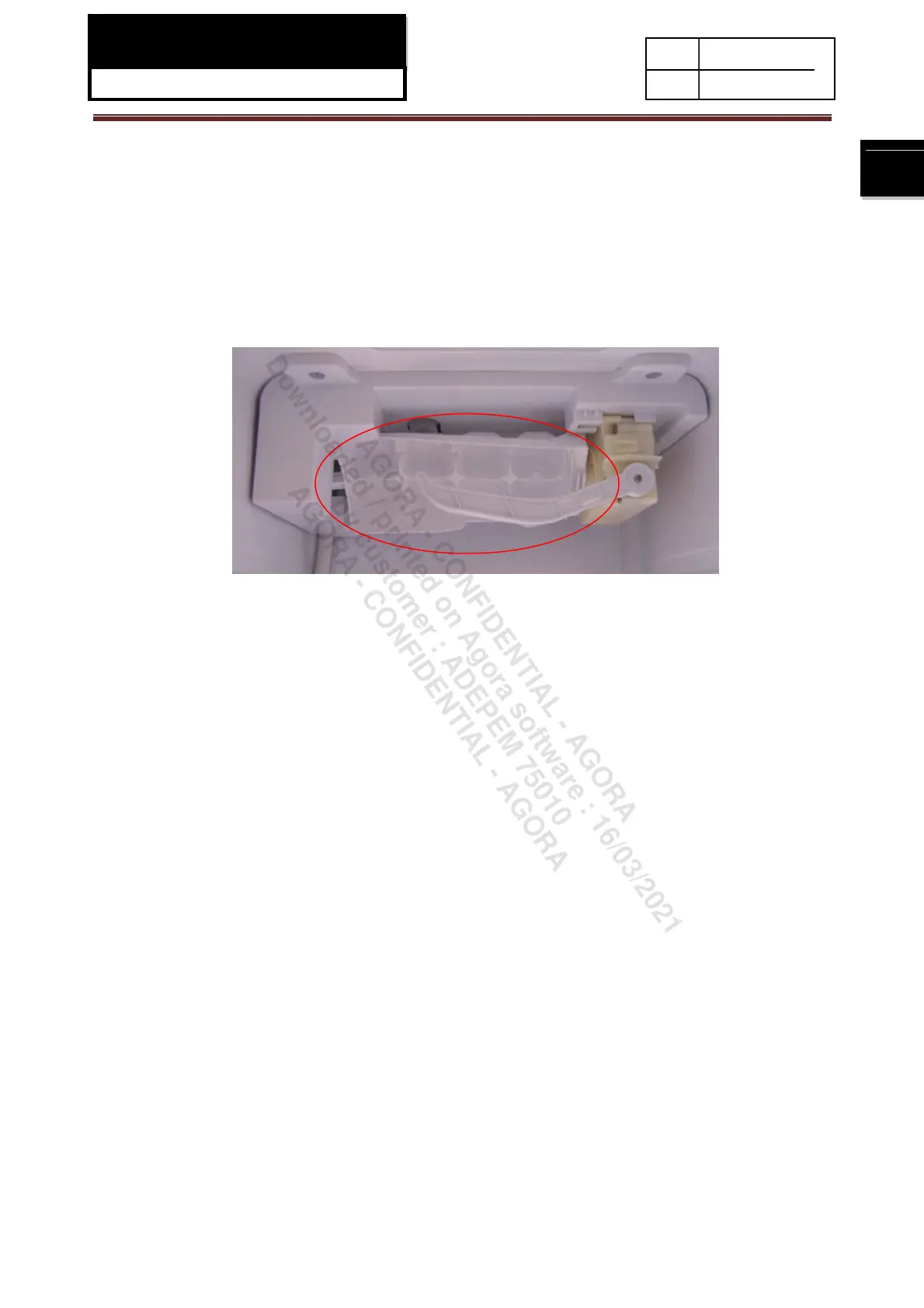

2.Ice maker testing：Under locked state,press “Dispenser”+“Ice on/off” for 3 sec.,when the beep
sound,open FRZ door,within 20 sec.ice maker turns out automatically
AGORA - CONFIDENTIAL - AGORA
Downloaded / printed on Agora software : 16/03/2021
by customer : ADEPEM 75010
AGORA - CONFIDENTIAL - AGORA

Haier HRF-628AF6 Specifications

General

Product color	Aluminium, Stainless steel
Product design	American door
Built-in display	-
Appliance placement	Freestanding
Number of compressors	1
Icemaker	Yes
Noise level	42 dB
Climate class	SN-ST
Total net capacity	550 L
Total gross capacity	610 L
Multi-airflow system	No
Lamp type	LED
Fridge net capacity	375 L
Fridge gross capacity	- L
Fridge number of shelves/baskets	4
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	175 L
Storage time during power failure	- h
Connected load	- W
AC input frequency	50 Hz
Annual energy consumption	420 kWh
Package depth	760 mm
Package width	980 mm
Package height	1900 mm
Package weight	135000 g

Weight and Dimensions

Depth	690 mm
Width	910 mm
Height	1790 mm
Weight	122000 g
