SERVICE MANUAL
Model: HRF-628AF6/IF6
9
Issue  2013-04-07
REF.  Ref1304S001V0




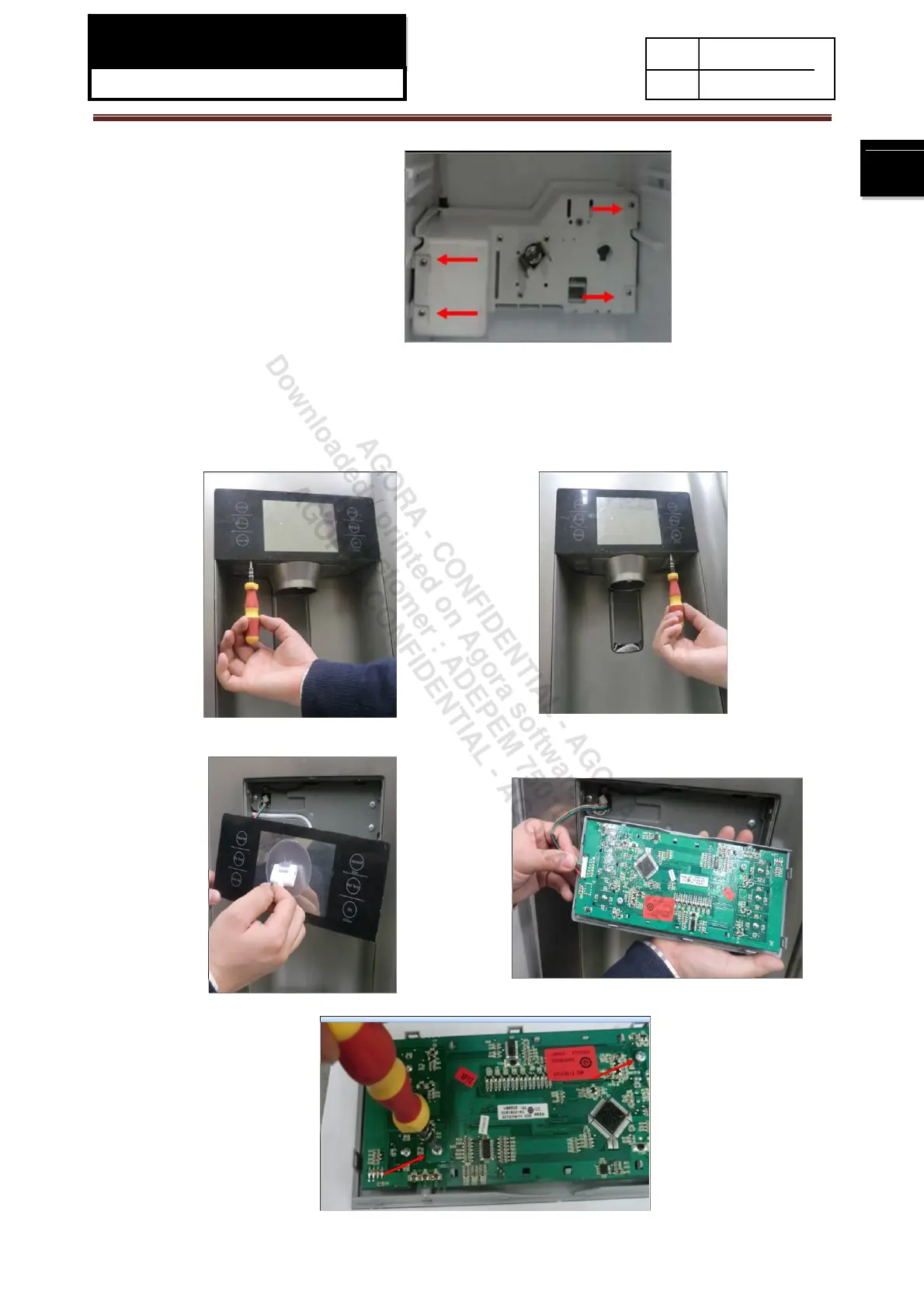

3-2 .Display Panel Disassembly
1. Loosening 2 screws fixed the bottom of control panel assembly;











2. Remove the diaplay panel with sucker,and disconnect the cable;










3. Loosening 2 screws fixed the display PCB.







5.    Loosen four screws fixed the ice-crushed motor box and put it out;
