SERVICE MANUAL
Model: HRF-628AF6/IF6
28
Issue 2013-04-07
REF. Ref1304S001V0
Chapter 8 Water Line Principle

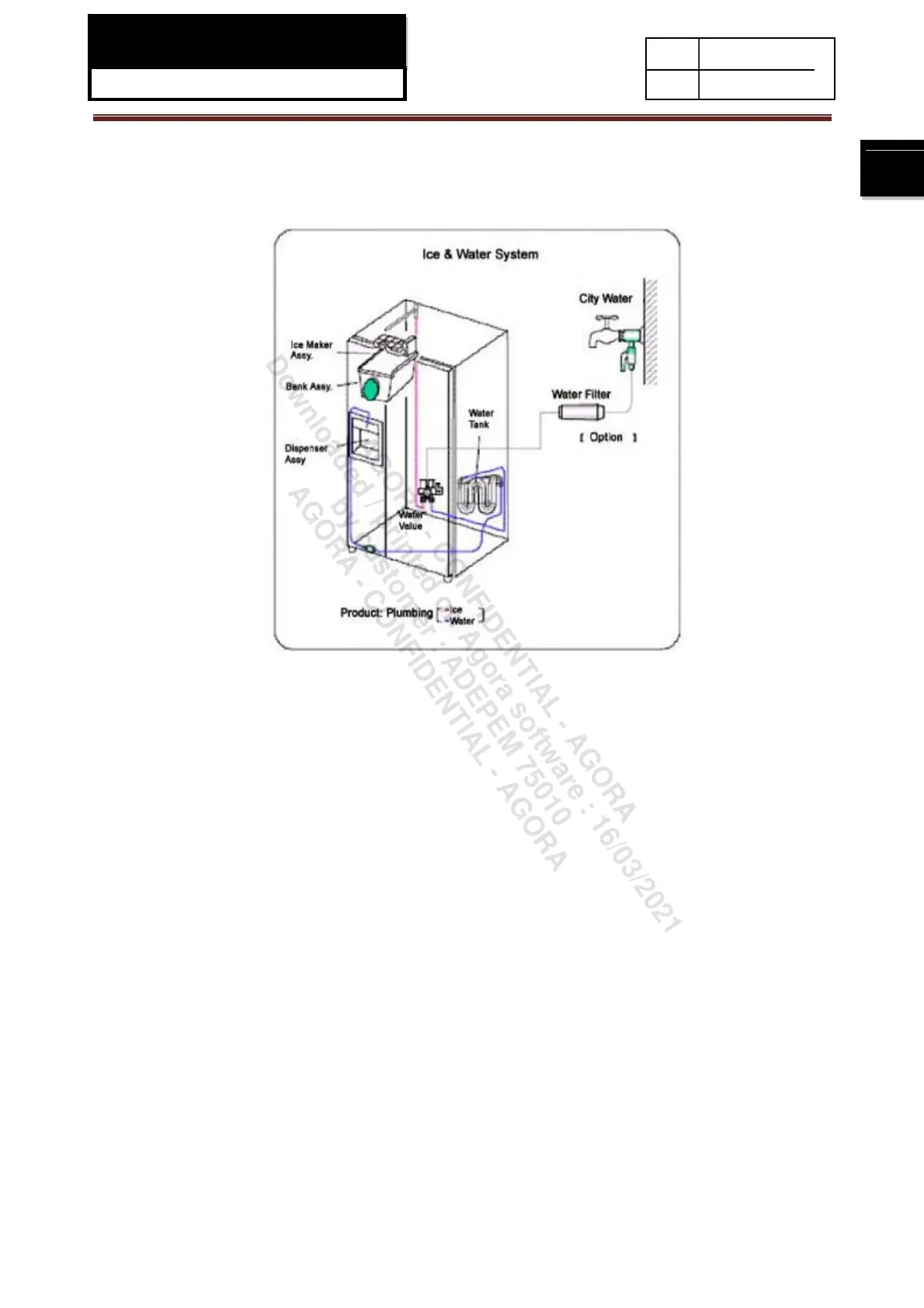

Water line scenograph
The water is divided into two ways from water valve, one way to ice-maker, and another way to water tank, then
flow to dispenser for get cold water.
1）Cold water principle：
Water enters into water tank of fridge compartment, then water getting to cold in fridge compartment for drink
use from dispenser.
2）Ice-maker principle：
Water enter into ice-maker from water valve which at the back of cabinet, then after some time, the ice-maker
test if the ice box if full, and pushing ice. Then let water into ice-maker again to continue a new ice-making
process.
