Haier HRF-628AF6 User Manual

SERVICE MANUAL
Model: HRF-628AF6/IF6
8
Issue 2013-04-07
REF. Ref1304S001V0
Chapter3 Disassembly and Installation
Note:Unplug the power cord from the outlet when demount the refrigerator;

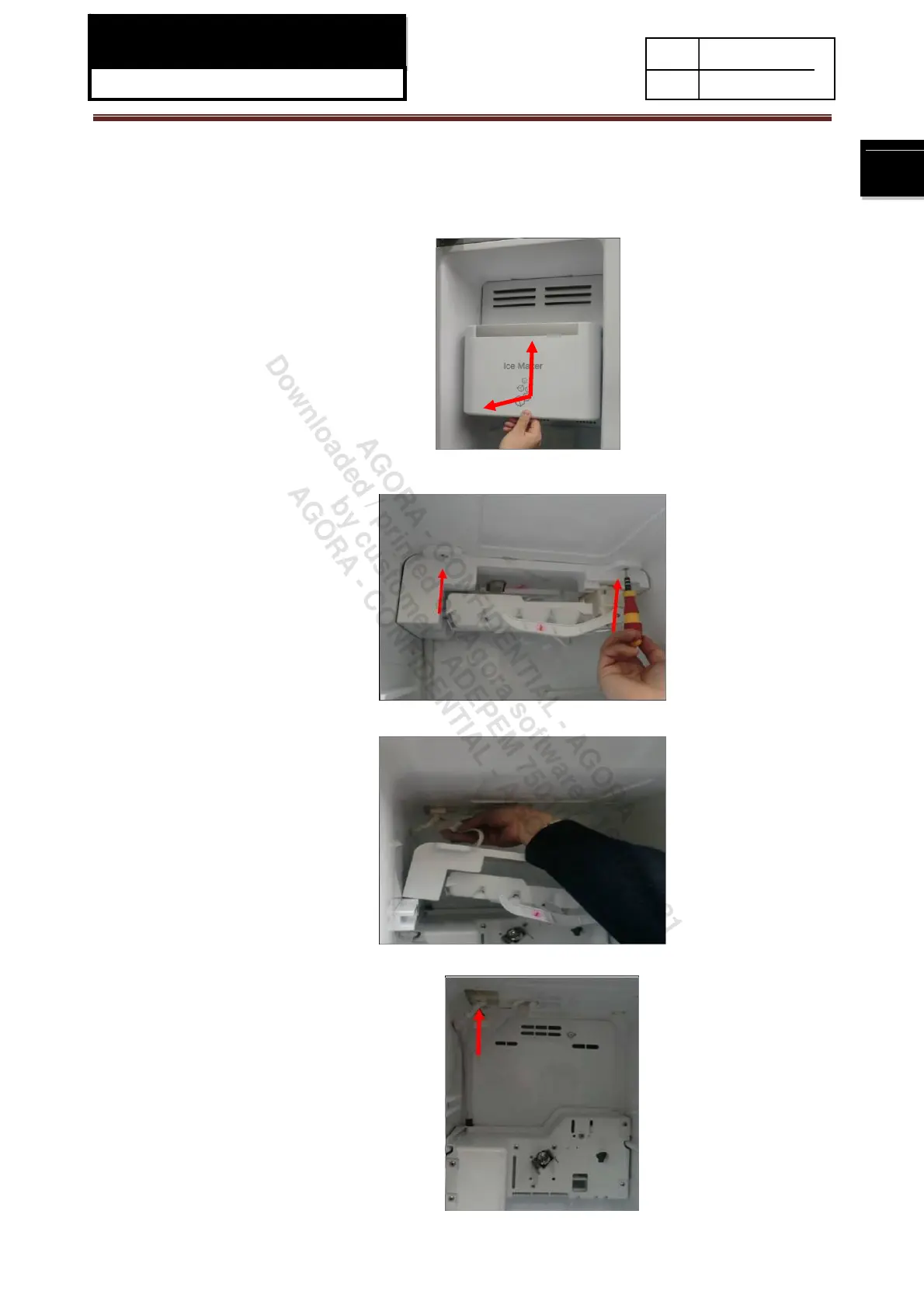

3-1. Ice-crushed motor disassembly
1. Remove the ice store box like picture;
2. Loosen two screws from the ice maker supporter；
3．Disconnect the ice maker supporter cable and put it out;
4. Disconnect the ice-crushed motor box cable ;
AGORA - CONFIDENTIAL - AGORA
Downloaded / printed on Agora software : 16/03/2021
by customer : ADEPEM 75010
AGORA - CONFIDENTIAL - AGORA

Haier HRF-628AF6 Specifications

General

Product color	Aluminium, Stainless steel
Product design	American door
Built-in display	-
Appliance placement	Freestanding
Number of compressors	1
Icemaker	Yes
Noise level	42 dB
Climate class	SN-ST
Total net capacity	550 L
Total gross capacity	610 L
Multi-airflow system	No
Lamp type	LED
Fridge net capacity	375 L
Fridge gross capacity	- L
Fridge number of shelves/baskets	4
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	10 kg/24h
Freezer net capacity	175 L
Storage time during power failure	- h
Connected load	- W
AC input frequency	50 Hz
Annual energy consumption	420 kWh
Package depth	760 mm
Package width	980 mm
Package height	1900 mm
Package weight	135000 g

Weight and Dimensions

Depth	690 mm
Width	910 mm
Height	1790 mm
Weight	122000 g
