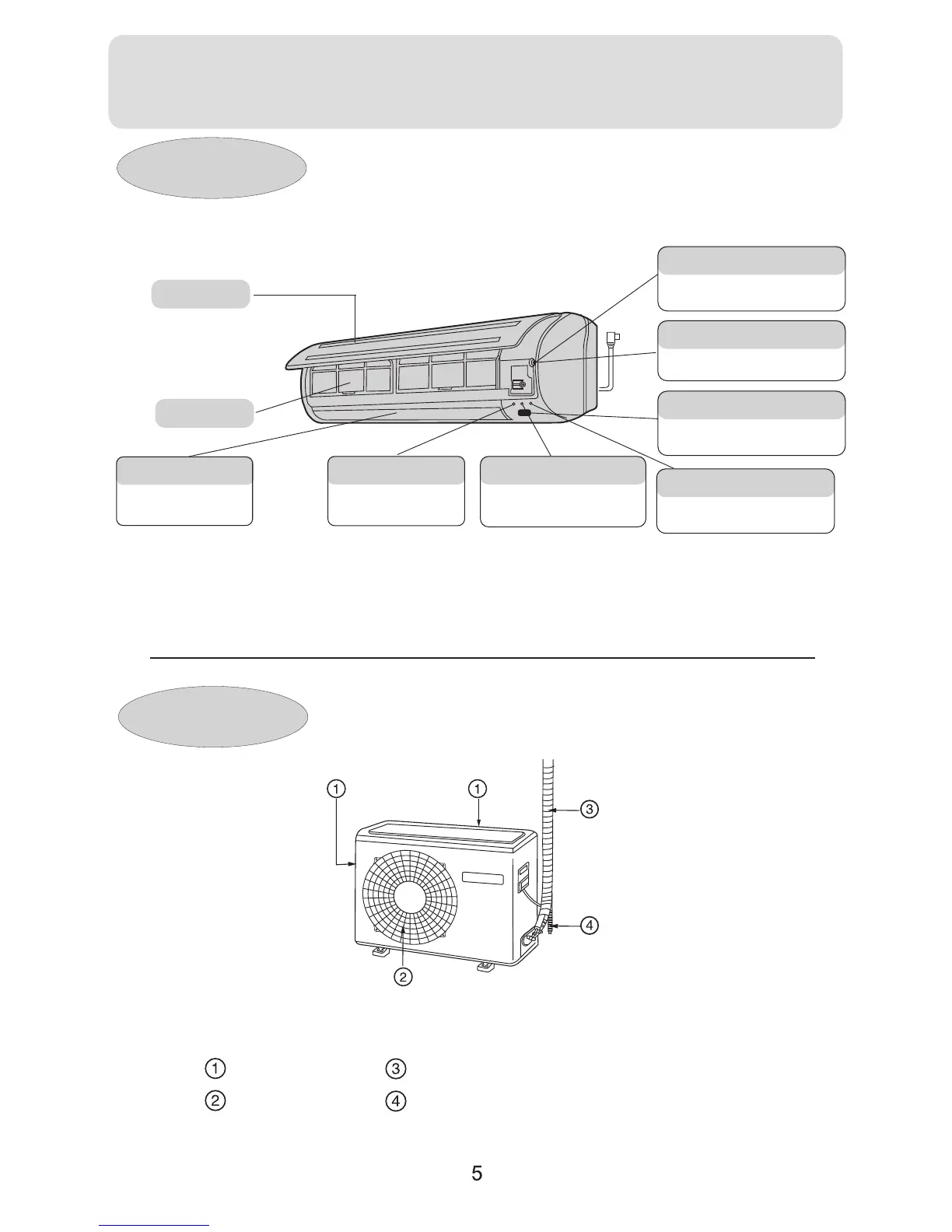

Parts and Functions
Indoor unit
Air filter
Vertical flap
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
Lights up when unit starts.
Power indicator
Lights up when Timer operation
is selected.
Timer mode indicator
Lights up during compressor
Operation mode indicator
running.
Remote signal receiver
A beeping sound is generated when
a signal from remote controller is
received.
Test running switch(manual)
Used only for test running in cooling
when room temp. is below 16
o
C.
Don't use it in normal operation.
Emergency switch(manual)
Used when remote controller is lost or
defective. Unit will run temporarily.
Outdoor unit
OUTLET
INLET
DRAIN HOSE
CONNECTING PIPING AND ELECTRICAL WIRING
Inlet grille
