63
Domestic air conditioner
HSU-09/12RS03/R2(SDB) Service Diagnosis
7.4.10 Power Supply Over or under voltage fault
Indoor display F19
outdoor display: LED1 flash 6 times

Method of An abnormal voltage rise or fall is detected by checking the specified voltage detection circuit.
Malfunction
Detection
Malfunction
An voltage signal is fed from the voltage detection circuit to the microcomputer
Decision
Conditions

Supposed
Ƶ
Supply voltage not as specified
Causes
Ƶ
the IPM module is broken
Ƶ
the outdoor PCB is broken

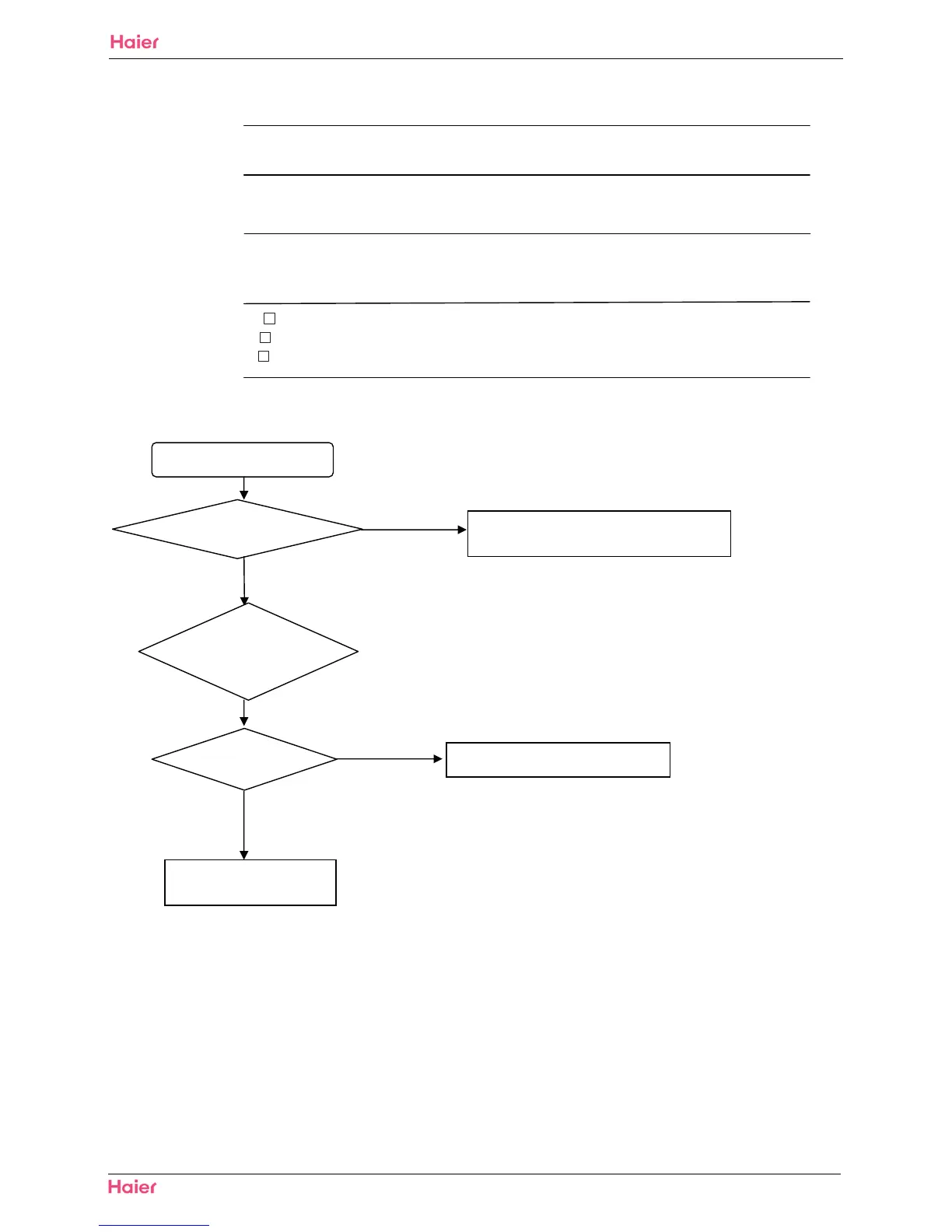

Troubleshooting
* Caution
Be sure to turn off power switch before connect or disconnect connector, or else parts
damage may be occurred.
About how to check the IPM module,please refer to IPM protection fault
This question may be caused by the
power
Change the new one
Change the outdoor PCB
Check the power supply
Is it rated power?
No
Yes
Check the IPM
module
Is it normal?
No
Yes
