Haier HW70-B12636N User Manual

GB

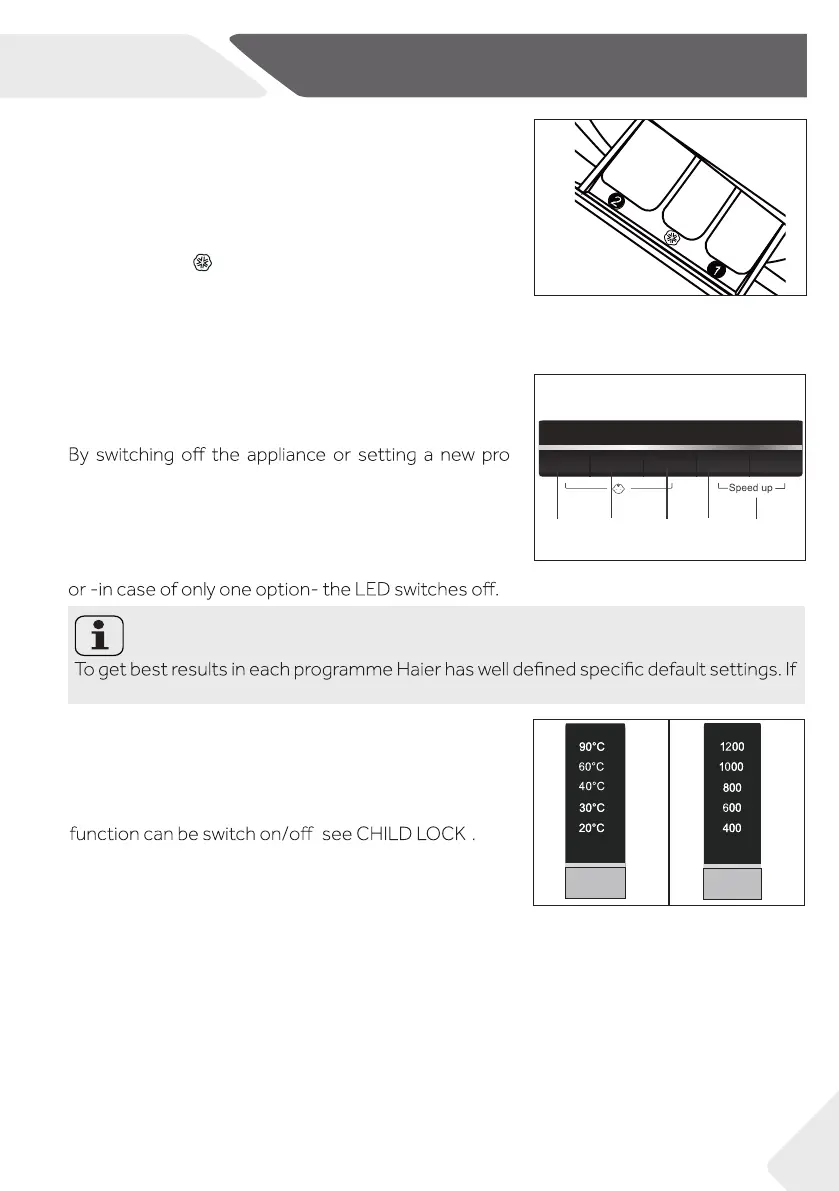

3-Control panel
9
3.5 Function buttons
The function buttons (Fig. 3-6) enable additional op-
tions in the selected programme before programme
starts. The related indicators are displayed.
-
gramme, all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
To delete the setting or to cancel the setting process,
press the function button until the desired LED lights
3-6
3.5.1-Function button “ Temp.“
Press this button (Fig. 3-7) to change the washing
temperature of the programme. If no value is illumi-
nated the water will not be heated.
In conjunction with the “Steam” button, the child lock
3.5.2-Function button “Speed”
Press this button (Fig. 3-8) to change or deselect the
spin of the programme. If no value is illuminated the
laundry will not spun.
Note: Factory settings
there is no special requirement default settings are recommended.
3.4 Detergent drawer
Open the drawer, three compartments can be
seen (Fig. 3-5):
Compartment 1 : Water inlet only, no detergent
Compartment 2 : Detergent for programme
Compartment
: Softener, Conditioning agent etc.
The recommendation on the type of detergents is
suitable for the various washing temperatures, please
refer to the manual of detergent.
3-5
3.5.3-Function button “Steam“
3-7 3-8
Temp.
Speed
Press this button (Fig. 3-9) to activate the steam function.When this function is activated
the default temperature is the maximum temperature of the programme selected.This
function can be activated only with the following programmes: Cotton, Synthetic, Mix,
Baby Care, Hygiene.When the function is activated the led above the button will light up.
Pushing again this button the function can be deactivated and the led above the button
will turn off.When the function is activated the temperature of the programme cannot
be changed.
( )
3.5.1 3.5.2 3.5.3 3.5.4 3.5.5
Temp.
Speed Steam
Delay
Extra rinse

Haier HW70-B12636N Specifications

General

Door color	Black
Door hinge	Left
Motor type	Beltless
Water fill	Cold
Drum volume	45 L
Control type	Rotary, Touch
Display type	LED
Loading type	Front-load
Tub material	Plastic
Drum material	Stainless steel
Product color	White
Built-in display	Yes
Custom panel-ready	-
Illumination color	Amber
Appliance placement	Freestanding
Drum capacity	7 kg
Cycle time (max)	206 min
Delay start (max)	24 h
Spin-drying class	B
Maximum spin speed	1200 RPM
Noise level (spin)	67 dB
Number of washing programs	16
Add garment (pause) function	No
Annual water consumption washing	9000 L
Annual energy consumption washing	106 kWh
Power plug type	Type F (CEE 7/4)
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Water consumption per cycle	41 L
Energy consumption washing per cycle	- kWh
Package depth	565 mm
Package width	650 mm
Package height	890 mm
Package weight	70000 g

Weight and Dimensions

Depth	510 mm
Width	590 mm
Height	850 mm
Weight	64000 g
